Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 07KT98 |
| Order Number | GJR5253100R4278 |
| Product Type | PLC Basic Unit / CPU Controller |
| Controller Family | Advant Controller 31 (AC31) Series 90 |
| Supply Voltage | 24 VDC |
| User Program Memory | 1000 kB |
| User Data Memory | 1000 kB |
| Digital Inputs | 24 × 24 VDC |
| Digital Outputs | 16 × 24 VDC transistor outputs |
| Configurable Digital I/O | 8 channels |
| Analog Inputs | 8 channels |
| Analog Outputs | 4 channels |
| Hardware Counters | 2 |
| Counter Frequency | Up to 50 kHz |
| Communication | Ethernet TCP/IP, CAN, CS31 Bus, RS232 |
| Programming Software | AC1131 |
| Mounting | Industrial cabinet / DIN rail installation |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +75 °C |
Product Introduction

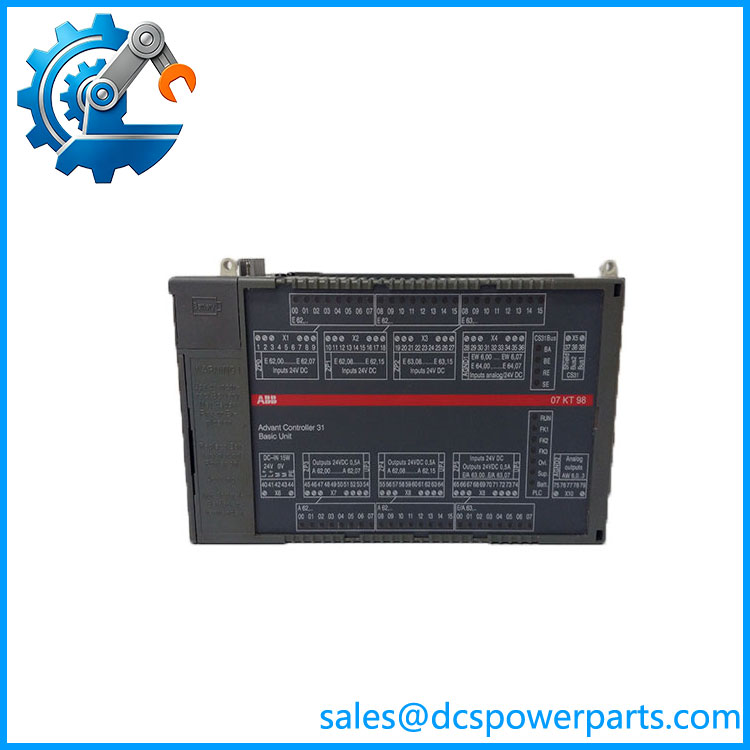

ABB 07KT98 GJR5253100R4278 Overview
The ABB 07KT98 GJR5253100R4278 is a programmable logic controller basic unit from the ABB Advant Controller 31 (AC31) Series 90 family. It integrates CPU processing, communication functions, and onboard I/O resources into a compact controller platform designed for industrial automation applications.
The ABB 07KT98 PLC controller is designed for decentralized automation systems where local control processing is required. The controller executes user programs created with the AC1131 engineering environment and manages connected sensors, actuators, remote I/O stations, and field communication networks.
The ABB GJR5253100R4278 07KT98 version provides Ethernet and CAN communication capability, allowing integration with modernized industrial networks while maintaining compatibility with existing AC31-based installations. The controller can exchange process information with other automation devices, operator interfaces, and distributed control components through configured communication channels.
The ABB AC31 07KT98 controller includes integrated digital and analog signal handling, reducing the requirement for additional I/O modules in smaller automation systems. The onboard inputs and outputs allow direct connection to field devices such as switches, sensors, valves, and analog transmitters depending on the application design.
The ABB 07KT98 GJR5253100R4278 is commonly used in long-service industrial systems where customers continue operating AC31 automation platforms. These controllers are often found in machine control, process equipment, utility systems, and industrial retrofit projects.
When replacing an ABB 07KT98, engineers should verify the CPU hardware version, AC1131 application backup, communication configuration, I/O mapping, and connected field devices. PLC replacement requires more than installing matching hardware because the controller depends on stored application logic and system parameters.
The GJR5253100R4278 should be considered part of a complete automation system. A controller fault may appear similar to field wiring, I/O module, or network problems, so troubleshooting should include power supply checks, diagnostics review, communication testing, and application verification.
07KT98-GJR5253100R4278
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving ABB 07KT98 controllers include:
- CPU startup failures
- Loss of communication with connected devices
- Program memory errors
- Unexpected controller resets
- I/O signal processing problems
Possible causes:
- Aging hardware components
- Unstable 24 VDC supply
- Corrupted application program
- Communication configuration mismatch
- Faulty field wiring
Recommended troubleshooting steps:
- Check CPU diagnostic LEDs
- Verify 24 VDC supply quality
- Upload and compare PLC program
- Confirm Ethernet/CAN settings
- Review I/O configuration
- Inspect connected devices and wiring
The operates as the control center of an AC31 system, so fault isolation should include the complete PLC architecture.
Typical Applications
Machine Automation
Used for:
- Packaging equipment
- Material handling systems
- Assembly machines
- Production line control
Process Equipment
Applied for:
- Pump control
- Utility systems
- Small process skids
- Equipment monitoring
Infrastructure Automation
Used for:
- Water treatment systems
- Building automation
- Remote control stations
Industrial Retrofit Projects
Applied for:
- Maintaining existing installations
- Replacing aging PLC controllers
- Extending equipment service life
Technical Pitfalls to Avoid
1. Verify Exact Controller Variant
Confirm:
- 07KT98 model number
- ordering code
- Communication options
- Hardware revision
Different variants may have different communication interfaces.
2. Backup PLC Application
Before replacement:
- Save AC1131 project
- Record communication parameters
- Document I/O assignments
- Backup controller settings
3. Check Integrated I/O Usage
Verify:
- Digital input allocation
- Output assignments
- Analog scaling
- Field terminal wiring
4. Validate Communication
After installation:
- Confirm Ethernet connection
- Test CAN communication
- Verify CS31 bus operation
- Check connected devices
