Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 2300/25-00 |
| Manufacturer | Bently Nevada |
| Product Series | 2300 Series |
| Product Type | Dual-Channel Vibration Monitor |
| Measurement Channels | 2 vibration channels |
| Input Type | Proximity transducer / velocity sensor compatible configurations |
| Signal Processing | Dynamic vibration measurement and alarm processing |
| Outputs | Relay alarms and analog outputs |
| Analog Output | 4–20 mA proportional signal |
| Alarm Functions | Alert and Danger levels |
| Communication | Configuration-dependent |
| Power Supply | Industrial DC power input |
| Application | Rotating machinery condition monitoring |
| Installation | Panel or rack-mounted industrial installation |
Application Scenarios & Pain Points
A vibration alarm is usually the last visible sign before mechanical damage becomes a production event. In many plants, the challenge is not collecting vibration data — it is keeping aging protection hardware operational when original equipment support becomes limited.
Typical applications:
- Pump Systems: Used for monitoring shaft vibration and mechanical condition on critical process pumps where bearing problems can affect production reliability.
- Small Steam Turbines: Provides vibration monitoring for auxiliary turbine equipment and rotating assemblies.
- Compressors: Applied for detecting abnormal vibration trends associated with imbalance, looseness, or mechanical degradation.
- Industrial Motors: Supports condition monitoring on motors connected to critical production equipment.
Field note: A chemical facility experienced repeated vibration alarms on an auxiliary compressor. The mechanical inspection found no immediate damage, but the protection monitor showed unstable channel behavior. Replacing the 2300/25-00 restored consistent vibration readings and allowed the maintenance team to continue scheduled inspection rather than emergency shutdown work.

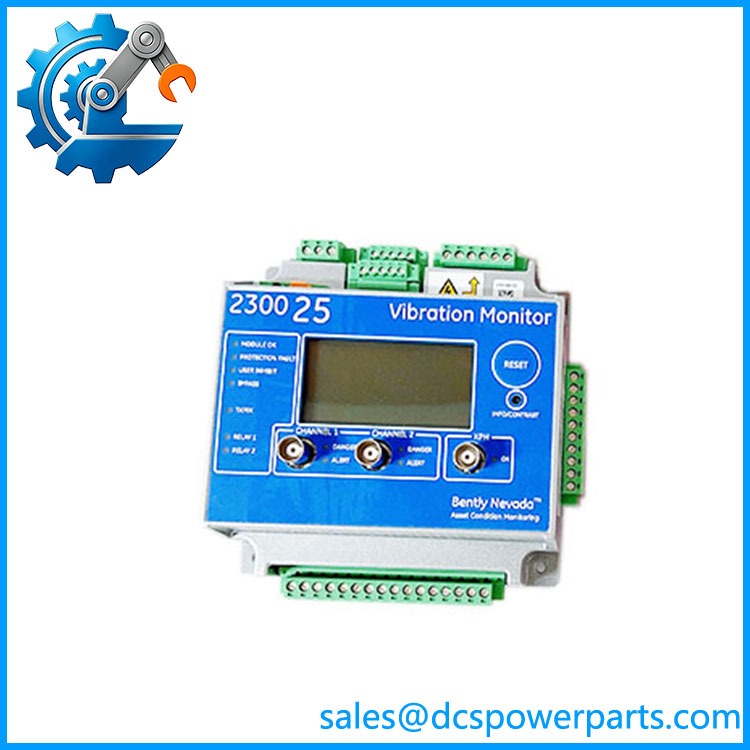

2300/25-00
Related Products
- Bently Nevada 2300/20 — Single-channel vibration monitor from the same 2300 family. Suitable for simpler machinery requiring one measurement point.
- Bently Nevada 2300/22 — Dual-channel vibration monitoring variant. Used where additional monitoring flexibility is required.
- Bently Nevada 3300/16 — Dual-channel vibration monitor from the 3300 series. Common in older machinery protection installations requiring rack-based monitoring.
- Bently Nevada 3300/25 — Four-channel monitor module. Used for applications needing more vibration measurement points within a 3300 rack.
- Bently Nevada 3500/42M 140482-01 — Four-channel proximity/seismic monitor module. Designed for larger machinery protection systems with advanced monitoring requirements.
- Bently Nevada 3500/15 125840-02 — Power supply module for 3500 monitoring racks. Supports complete rack operation.
- Bently Nevada 3300 XL 8 mm Probe System — Proximity measurement hardware commonly paired with vibration monitoring modules.
- Bently Nevada 1900/65 — General machinery condition monitoring unit for compact equipment protection applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Probe and Sensor Compatibility Errors
A vibration monitor depends heavily on the installed sensor type. A correct-looking replacement may produce incorrect readings if the probe configuration does not match.
How to avoid: Verify probe model, gap voltage range, sensitivity, and existing calibration records before installation.
⚠️ Alarm Setpoint Loss
Replacement monitors may not contain the original machine-specific alarm thresholds.
How to avoid: Record Alert/Danger settings, startup delays, and relay logic before removing the existing module.
⚠️ Wiring and Terminal Identification Mistakes
Signal wiring errors can create false vibration alarms or unstable readings.
How to avoid: Label all field wiring and inspect terminal connections for loose screws, contamination, or oxidation.
Frequently Asked Questions (FAQ)
What is the Bently Nevada 2300/25-00 used for?
The 2300/25-00 is a vibration monitoring unit designed to measure rotating equipment vibration and provide alarm outputs for machinery protection applications.
Is the 2300/25-00 part of the 3500 system?
No. The 2300/25-00 belongs to the Bently Nevada 2300 Series. The 3500 Series uses different rack architecture, modules, and configuration methods.
Can the 2300/25-00 replace an older vibration monitor directly?
Not always. Replacement depends on:
- Sensor type
- Wiring arrangement
- Alarm requirements
- Output requirements
- Panel dimensions
A system review should be completed before installation.
What equipment is normally monitored with this module?
Typical equipment includes:
- Pumps
- Motors
- Compressors
- Small turbines
- Auxiliary rotating machinery
Does the 2300/25-00 require software configuration?
Configuration requirements depend on the installation. Alarm settings, sensor parameters, and output assignments should match the existing machinery protection setup.
What should buyers verify before purchasing a 2300/25-00?
Check:
- Complete model number
- Sensor compatibility
- Existing wiring diagrams
- Alarm configuration
- Hardware condition
- Required delivery timeframe
Is a refurbished Bently Nevada 2300/25-00 suitable for machinery protection service?
A tested refurbished unit can be suitable when vibration channels, relay operation, analog outputs, power circuits, and configuration parameters are verified before installation.
