Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1C31234G01 |
| Manufacturer | Emerson Process Management |
| System Platform | Ovation DCS |
| Product Type | Compact Contact Input Electronics Module |
| Module Function | Digital input signal acquisition |
| Number of Channels | 16 channels |
| Input Type | Contact inputs |
| Wetting Supply | 48 VDC onboard auxiliary supply |
| Signal Return | Common return configuration |
| Input Application | Switches, relay contacts, equipment status feedback |
| Installation | Ovation Compact I/O Base Unit |
| Personality Module | Not required; cavity insert used for wiring reference |
| Typical Applications | Turbine control, generator systems, industrial process control |
| Operating Temperature | 0 to 60°C typical |
| Diagnostics | Internal module fault monitoring, ground fault detection |
Application Scenarios & Pain Points
In power plants, a missing digital input is rarely just a wiring issue. One failed channel can affect permissives, alarms, equipment sequencing, or protective logic. Troubleshooting often starts at the field device and ends at the I/O cabinet.
Typical applications:
- Power Generation: Used for turbine and generator auxiliary status monitoring, including breaker feedback, valve limit switches, and equipment running indications.
- Steam Turbine Control: Receives discrete signals from mechanical switches and relay contacts used in protection and sequence logic.
- Industrial Process Plants: Supports monitoring of pumps, motors, shutdown devices, and local equipment interlocks.
- Ovation DCS Upgrades: Installed as a replacement I/O module when maintaining existing control cabinets rather than replacing complete systems.
Field note: A generating station experienced intermittent false equipment status alarms after years of operation. Inspection showed the field contacts were healthy, but several input channels were unstable. Replacing the affected 1C31234G01 module restored reliable status indication without changing the control application.

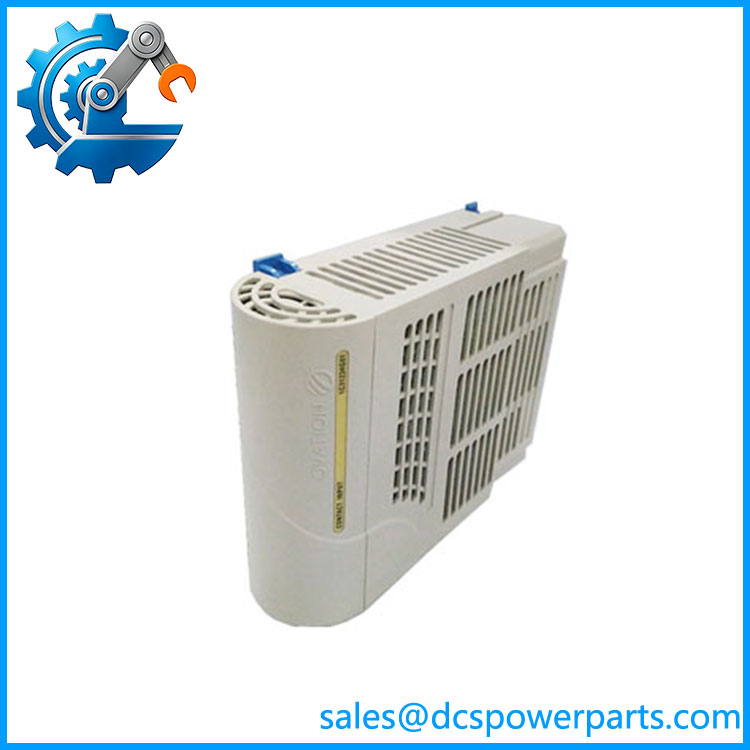

1C31234G01
Related Products
- Emerson Ovation 1C31232G01 — Compact digital input module for standard 24/48 VDC discrete signal acquisition. Used where onboard wetting requirements differ from the contact input configuration.
- Emerson Ovation 1C31233G04 — Sequence of Events input module with onboard voltage supply. Used when event timestamp accuracy is required.
- Emerson Ovation 1C31238H01 — Compact I/O cavity insert providing wiring identification for the contact input module configuration.
- Emerson Ovation 1C31224G01 — Eight-channel analog input electronics module. Used for analog measurement applications rather than discrete status monitoring.
- Emerson Ovation 1C31122G01 — Digital output electronics module. Used for sending control commands to field devices.
- Emerson Ovation 1C31219G01 — Relay output module for applications requiring relay-based switching.
- Emerson Ovation 1C31203G01 — Remote node controller module supporting distributed I/O communication architectures.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing Contact Input and Standard Digital Input Modules
Several Ovation I/O modules have similar appearances but different electrical characteristics.
How to avoid: Verify whether the field device requires onboard 48 VDC wetting power or an externally supplied signal.
⚠️ Incorrect Base Unit and Wiring Match
Compact Ovation modules depend on the correct base assembly and terminal arrangement.
How to avoid: Photograph the existing rack position, terminal wiring, and module label before removal.
⚠️ Configuration Database Mismatch
A replacement I/O module may physically operate while the Ovation database still references different channel assignments.
How to avoid: Confirm channel mapping, point configuration, and I/O database records before returning equipment to service.
Frequently Asked Questions (FAQ)
What is the Emerson Ovation 1C31234G01 used for?
The 1C31234G01 is a compact 16-channel contact input electronics module used in Ovation DCS systems for collecting discrete field signals from switches, relays, and equipment status contacts.
How many inputs does the 1C31234G01 support?
The module supports 16 contact input channels with a 48 VDC onboard wetting supply.
Is the 1C31234G01 compatible with standard PLC racks?
No. It is designed specifically for Emerson Ovation DCS I/O architectures and requires the appropriate Ovation base hardware.
Can the 1C31234G01 replace other Ovation digital input modules?
Not automatically. Different Ovation input modules may use different signal ranges, isolation methods, and database configurations.
Before replacement, verify:
- Existing module part number
- Field voltage level
- Channel assignment
- Base assembly type
- Control database configuration
Does the module require a separate personality module?
No. The compact contact input configuration does not use a traditional personality module. A cavity insert provides wiring information instead.
What causes a 1C31234G01 replacement to fail?
Common causes include:
- Incorrect field voltage
- Wrong I/O database configuration
- Damaged terminal connections
- Incorrect module position
- Faulty base unit contacts
Is a refurbished Emerson 1C31234G01 suitable for power plant service?
A tested refurbished module can be suitable when input channels, onboard wetting supply, diagnostics, connector condition, and Ovation system compatibility are verified before installation.
