WOODWARD 5501-471 | NetCon 5000B SIO | Turbine Control Maintenance

Description

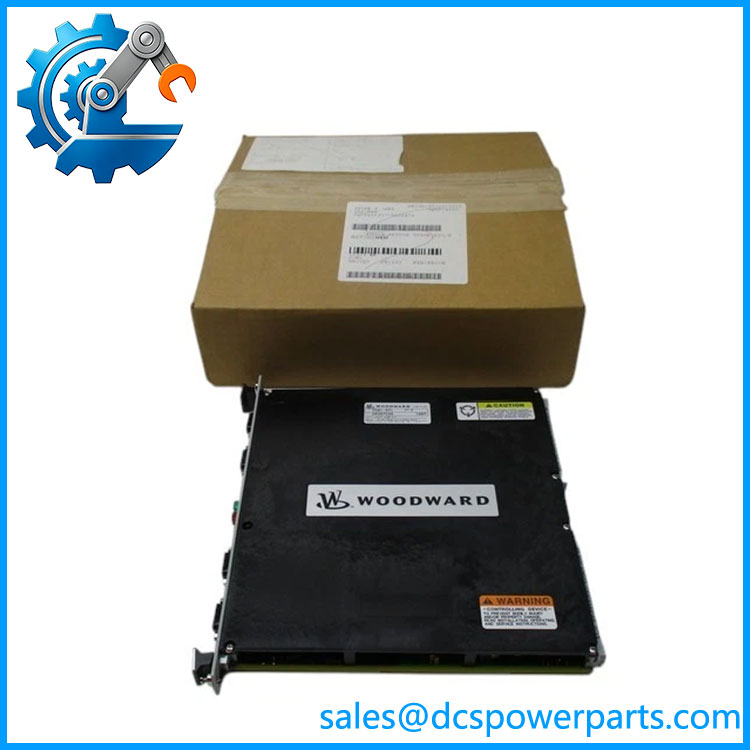

WOODWARD 5501-471

Key Technical Specifications

Woodward’s documentation specifically lists 5501-471 as “NETCON 5000B SIO W/SCREW POSTS.” The same documentation distinguishes it from 5466-348, which is the slide-lock SIO version.

Product Introduction

The WOODWARD 5501-471 is a MicroNet/NetCon 5000B Serial I/O module used to provide serial communication between a Woodward turbine control system and external equipment. Available technical references identify four serial ports: the first two are RS-232, while ports 3 and 4 can be configured for RS-232, RS-422, or RS-485. Modbus RTU and Modbus ASCII are also reported as supported protocols.

This is not an analog I/O module, despite some recent secondary listings incorrectly describing it that way. Woodward’s own product-change documentation clearly classifies 5501-471 as an SIO module, making the serial-interface designation the appropriate engineering classification.

5501-471

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

When a legacy turbine controller loses an SIO module, the failure can look like a field-device problem because several external instruments may disappear at once. The first question should be whether the serial interface itself has failed, rather than replacing every connected instrument or communication cable.

The 5501-471 is particularly important for legacy-system maintenance because Woodward has now moved this SIO hardware into the inactive product category. Procurement should therefore distinguish between an exact legacy replacement and a newer SIO module intended for a different MicroNet platform.

Typical Applications

• Gas turbine control — Serial communication with external turbine instrumentation and auxiliary systems.
• Steam turbine control — Interface to serial field or package equipment where configured.
• Generator and plant equipment integration — Exchange of operating data with external controllers and monitoring equipment.
• Legacy MicroNet maintenance — Replacement of failed SIO hardware in installed turbine-control systems.
• Turnaround spare inventory — Maintaining an identified replacement for aging control cabinets.

Technical Pitfalls

1. Do not classify 5501-471 as an analog I/O module.
Woodward’s own documentation identifies it as an SIO module. Some current secondary listings use “analog I/O,” but that description conflicts with the manufacturer’s product-change documentation.

2. Check the screw-post version.
The exact Woodward description is NetCon 5000B SIO with screw posts. Do not assume that the visually similar 5466-348 slide-lock version is interchangeable without checking the cabinet and connector arrangement.

3. Verify the MicroNet generation.
Woodward identifies 5466-5006 as the replacement for 5501-471 specifically for MicroNet Plus systems using Coder 4.06 or later. That does not mean it is a universal drop-in replacement for every system containing a 5501-471.

4. Pay attention to MicroNet TMR installations.
Woodward’s 2024 change notice states that the new 5466-5006 and 5466-5007 modules had not yet been qualified for MicroNet TMR at the time of the notice. A TMR installation therefore requires particular attention to the approved hardware combination.

5. Verify the serial electrical standard at each port.
RS-232, RS-422, and RS-485 have different wiring and grounding requirements. Do not copy a port configuration from another SIO module without confirming the actual port assignment.

6. Check Modbus configuration before replacement.
Record slave addresses, baud rate, parity, stop bits, register mapping, polling configuration, and any application-specific serial parameters before removing a functioning module.

7. Inspect the field wiring.
A failed SIO module is not necessarily the root cause. Ground faults, incorrect RS-485 termination, cable shielding problems, and external-device failures can repeatedly damage or disrupt a replacement module.

8. Treat 5501-471 as legacy hardware.
Woodward announced that the legacy MicroNet SIO modules would be inactivated by April 30, 2025 because of limited component availability. For long-term maintenance planning, the replacement path should be evaluated rather than relying indefinitely on surplus 5501-471 inventory.

Related Products

• WOODWARD 5466-5006 — Newer MicroNet Plus SIO module with screw posts; Woodward identifies it as the replacement for 5501-471 in applicable MicroNet Plus systems using Coder 4.06 or later.
• WOODWARD 5466-5007 — Newer MicroNet Plus SIO module with slide-lock connectors; replacement for 5466-348 rather than the screw-post 5501-471 configuration.
• WOODWARD 5466-348 — Legacy SIO module with slide-lock connector arrangement.
• WOODWARD 5501-470 — NetCon CPU-related module; not a substitute for the SIO function.
• WOODWARD 5501-468 — NetCon CPU module without LL memory; different system role.
• WOODWARD 5501-469 — NetCon CPU module with LL memory/EMI-filter designation; not an SIO replacement.
• WOODWARD 5501-473 — NetCon dual-overspeed module; separate turbine protection/control function.
• WOODWARD 5501-465 — MicroNet simplex 24 VDC power-supply board; power function rather than serial I/O.
• WOODWARD 5501-466 — MicroNet simplex 120 VAC/DC power-supply board.
• WOODWARD 5501-467 — MicroNet simplex 220 VAC/DC power-supply board.

Procurement Note

For 5501-471, specify “Woodward MicroNet/NetCon 5000B SIO Module, screw-post version” rather than simply “Woodward communication module.” Confirm the MicroNet platform, connector style, controller CPU, Coder/software version, and whether the system is Simplex, Plus, or TMR before selecting a replacement.

For a used or surplus unit, the most useful acceptance checks are the physical connector configuration, Run/Fault indication, serial-port operation, and communication with the actual external equipment. A power-up test alone does not prove that all four serial interfaces are healthy.
