Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | BUM60-12/24-54-B-001 |
| Woodward Part Number | 3522-1004 |
| Manufacturer | Woodward |
| Product Series | BUM60 EM Actuator Platform |
| Product Type | Power Buffer Module |
| Main Function | DC bus stabilization and transient energy support |
| Input Voltage | 12/24 VDC system compatibility |
| Energy Storage | 54 Ws |
| Application | EM-80 / EM-300 electric actuator systems |
| System Role | Auxiliary power support for servo actuator operation |
| Mounting | Industrial cabinet installation |
| Typical Equipment | Gas turbines, steam turbines, diesel engines, generator sets |
Application Scenarios & Pain Points
A turbine fuel control problem during acceleration can be expensive to diagnose. Engineers may see valve position errors, actuator faults, or unstable speed control when the real issue is a momentary DC power drop inside the control cabinet.
Typical applications:
- Gas Turbine Fuel Valve Control: Supports Woodward electric actuator systems controlling fuel valve position during startup, load changes, and shutdown sequences.
- Diesel and Gas Generator Sets: Used with prime mover control systems where actuator response must remain stable during rapid load transitions.
- Industrial Compressor Packages: Helps maintain actuator operation in engine-driven compression equipment where fuel regulation directly affects operating stability.
- Marine Propulsion Systems: Applied in engine control cabinets where vibration, electrical noise, and changing loads can challenge actuator power stability.
Field note: A generator package showed intermittent actuator position alarms during load acceptance. The servo controller passed testing, but voltage measurements revealed short DC bus disturbances. Replacing the buffer module and checking the actuator power wiring eliminated the repeated alarms.

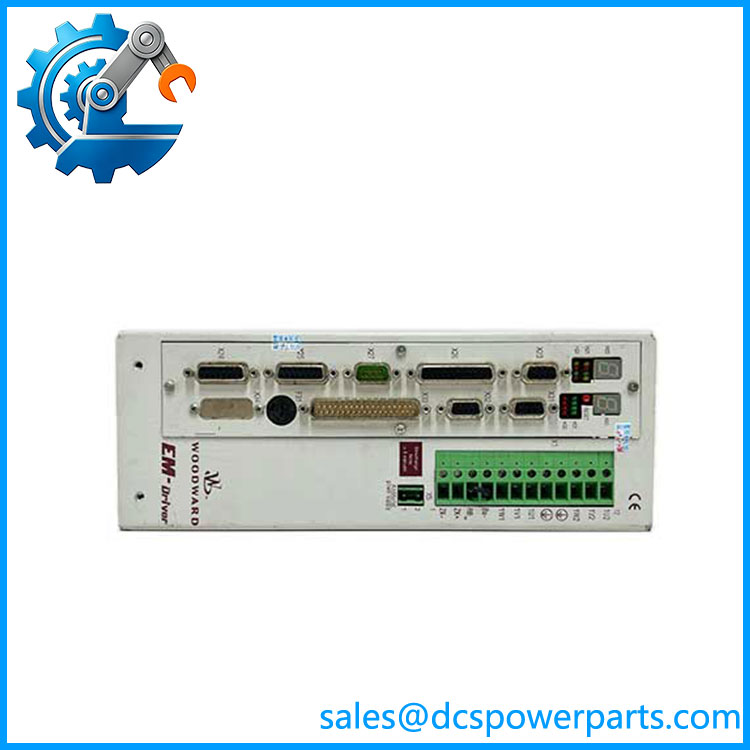

BUM60-12/24-54-B-001 3522-1004
Related Products
- Woodward BUM60-1224-54-B-001-VC — Full BUM60 servo drive variant with actuator positioning control capability. Different from the 3522-1004 buffer function and requires complete system matching.
- Woodward EM-80 Actuator — Electric actuator platform paired with BUM60 electronics. Used for fuel rack, valve, and position control applications.
- Woodward EM-300 Actuator — Higher torque electric actuator family for larger engines and turbine applications.
- Woodward 505XT — Digital turbine control platform commonly used with Woodward actuator systems.
- Woodward MicroNet Plus — Turbine control platform supporting complex prime mover control applications.
- Woodward 723PLUS — Engine governor family used for generator and engine speed control applications.
- Woodward 9905 Series Governors — Legacy governor hardware often found in retrofit projects requiring actuator modernization.
- Woodward ProAct Electric Actuators — Related electric actuator product family used in engine fuel control applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing Buffer Modules With Servo Drives
The BUM60 family contains different hardware roles. A buffer module does not replace a servo controller.
How to avoid: Confirm whether the installed component provides energy storage, actuator drive control, or both.
⚠️ Ignoring DC Supply Quality
A replacement buffer module may not solve the issue if the cabinet power source has ripple, voltage sag, or poor grounding.
How to avoid: Measure the 12/24 VDC supply during actuator movement, not only at idle conditions.
⚠️ Incorrect Cable and Grounding Practices
Servo actuator systems are sensitive to electrical noise and feedback issues.
How to avoid: Inspect shield connections, grounding points, and cable routing. A loose shield clamp can create intermittent faults that are difficult to reproduce.
Frequently Asked Questions (FAQ)
What is the Woodward -12/24-54-B-001 3522-1004 used for?
The Woodward -12/24-54-B-001 3522-1004 is a system auxiliary power buffer module designed to support actuator power stability and transient energy requirements in Woodward electric actuator applications.
Is the 3522-1004 a complete actuator controller?
No. It is an auxiliary power module within the platform. The complete actuator system may include the electric actuator assembly, servo drive electronics, feedback components, and control interface.
What equipment uses the system?
Common applications include:
- Gas turbines
- Steam turbines
- Diesel generator sets
- Industrial engine control systems
- Fuel valve and rack positioning systems
Can the 3522-1004 replace another Woodward module?
Only after checking:
- Complete Woodward part number
- configuration
- Voltage requirements
- Wiring connections
- Actuator model
A similar housing does not guarantee functional compatibility.
What are common failure symptoms?
Typical indications include:
- Actuator position instability
- Servo power alarms
- Unexpected actuator resets
- DC bus voltage fluctuations
- Startup sequence failures
Does the buffer module require configuration?
The module itself mainly performs power support functions, but the complete actuator system may require verification of servo parameters and controller settings after replacement.
Is a refurbished Woodward 3522-1004 suitable for industrial service?
A tested refurbished unit can be suitable when energy storage performance, electrical condition, connector integrity, and compatibility with the installed actuator system are verified before installation.
