Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Product Family | MicroNet |
| Model | 5453-203 |
| Product Type | Discrete I/O Module |
| Architecture | Simplex |
| Discrete Inputs | 16 |
| Discrete Outputs | 8 |
| Field Voltage | 24 VDC |
| Input Function | Digital/discrete status sensing |
| Output Function | Relay switching |
| Application | Industrial turbine and machinery control |
| Installation | MicroNet chassis |
| Field Interface | MicroNet terminal-board/FTM arrangement |
Procurement note: The 5453-203 is a specific MicroNet discrete-I/O configuration. Do not identify a replacement solely as a “16 DI / 8 DO MicroNet card.” The field-voltage configuration and exact hardware revision need to match the installed control system.
Product Introduction
Woodward 5453-203 Product Introduction
The Woodward 5453-203 is a MicroNet simplex discrete I/O module used to bring binary field signals into the control system and provide discrete relay outputs to external equipment. Typical signals include permissives, limit switches, equipment status, alarms, and control commands.
For legacy turbine-control systems, this type of I/O module often sits directly in critical start, shutdown, and interlock logic. A replacement therefore needs more than the same connector and channel count. The field voltage, output contact arrangement, chassis compatibility, and application configuration all need to be checked.
5453-203
Application Scenarios & Field Pitfalls
Engineering Pain Point
A turbine refuses to start because one permissive never becomes true. The first instinct is often to replace the I/O card. In the field, the actual problem is frequently a failed limit switch, broken common, incorrect field voltage, or a relay contact that has degraded under inductive loading. Check the complete circuit before replacing the module.
Typical Applications
- Steam Turbine Control — Valve-position feedback, lube-oil permissives, trip indications, and auxiliary-system status.
- Gas Turbine Packages — Start permissives, fuel-system status, valve limit switches, and shutdown signals.
- Power Generation — Generator breaker status, electrical permissives, and turbine auxiliary equipment monitoring.
- Industrial Compressors — Motor status, valve feedback, interlocks, and equipment-protection signals.
Technical Pitfalls to Avoid
- Verify the field voltage.
The 5453-203 should not be replaced with another MicroNet discrete module simply because the channel count appears identical. A mismatch in field-voltage rating can damage the input circuitry or produce unreliable state detection. - Check the field common first.
Several discrete channels may depend on the same field reference. One loose common connection can therefore create multiple simultaneous “bad inputs.” - Protect relay outputs from inductive transients.
Solenoids, contactors, and relay coils can produce significant voltage spikes when de-energized. Verify the suppression arrangement and output contact loading before blaming the I/O module. - Separate hardware faults from logic faults.
If the input LED or diagnostic state changes but the sequence does not respond, investigate the controller logic and configuration. Replacing the I/O card will not correct an incorrect permissive equation. - Check the replacement against the actual chassis documentation.
Legacy MicroNet systems exist in several hardware generations. Confirm the module’s chassis compatibility, terminal arrangement, and application configuration before installation.
Related Products
- Woodward 5453-203 — The subject MicroNet simplex discrete I/O module, providing binary field interfacing for legacy turbine and machinery control applications.
- Woodward 5453-277 — Another MicroNet discrete I/O configuration with a different field-voltage arrangement. It should not be selected as a direct substitute without verifying the original field voltage and wiring.
- Woodward MicroNet CPU Modules — Execute the turbine or machinery control application. The 5453-203 supplies I/O but does not replace the MicroNet processor.
- Woodward MicroNet Power Supply Modules — Provide system DC power to the MicroNet chassis and modules. Power quality should be checked whenever multiple I/O channels behave abnormally.
- Woodward MicroNet Analog I/O Modules — Handle continuous signals such as pressure, temperature, valve demand, and process feedback. They complement the discrete I/O but use different signal interfaces.
- Woodward MicroNet TMR I/O Modules — Provide I/O for triple-modular-redundant MicroNet systems. A TMR card should not be substituted into a simplex system merely because its channel functions look similar.
- Woodward MicroNet Chassis — Provides the backplane and physical mounting for the CPU, power supplies, and I/O modules.

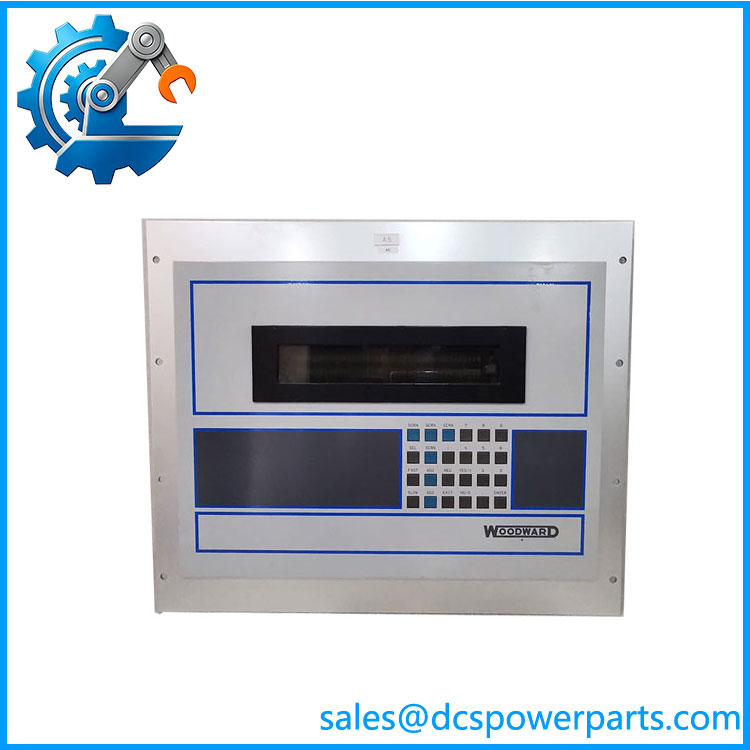

- Woodward 505 Digital Governor — A related Woodward turbine-control platform frequently encountered in steam-turbine installations. It is a controller/governor platform rather than a direct replacement for the 5453-203.
