Woodward 8440-1706 | SPM-D11/LSXR Automatic Generator Synchronizer Module

Description

Key Technical Specifications

Product Introduction

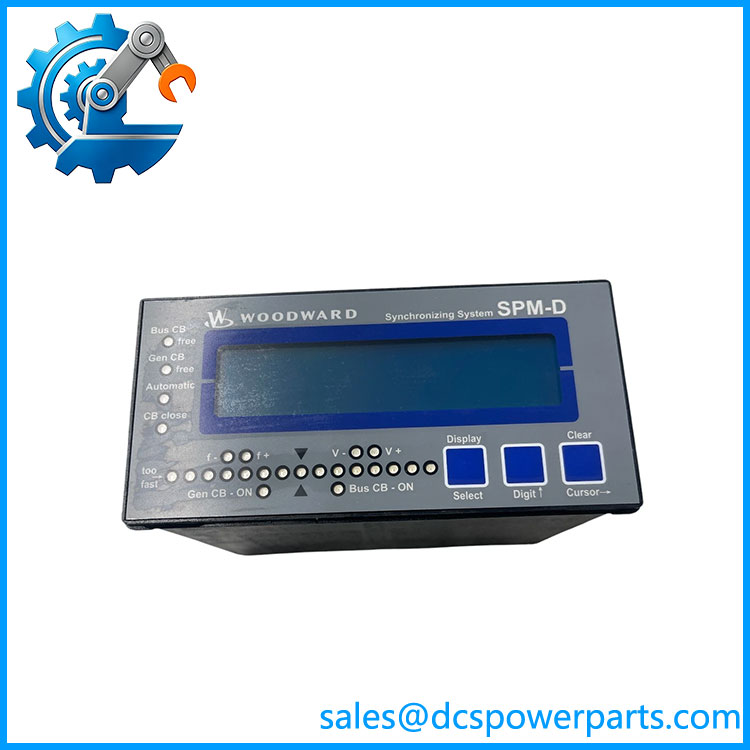

Woodward 8440-1706 Product Introduction

Woodward 8440-1706 is an SPM-D11 generator synchronizer designed for automatic synchronization and paralleling control of generator sets. It manages voltage, frequency, and phase matching before breaker closing while providing load sharing functions after generators are connected to a common bus.

The main value of Woodward 8440-1706 is maintaining existing generator control systems where synchronization logic, breaker timing, and load management are already engineered around the SPM-D11 platform. Before replacement, verify generator ratings, CT/PT settings, breaker control logic, and stored configuration parameters.

8440-1706

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A standby generator starts correctly but fails during the final paralleling step. The engine reaches rated speed, voltage is stable, and the PLC shows no major fault. The problem is often inside the synchronization sequence: phase matching, slip frequency settings, breaker close timing, or incorrect sensing parameters.

Generator synchronizers sit directly between the engine control system, excitation system, and switchgear. Small parameter errors can prevent a successful connection to the bus.

Typical Applications

• Power Generation Plants – Synchronization and load sharing of diesel or gas generator sets.
• Industrial Facilities – Backup generator paralleling systems for factories, refineries, and process plants.
• Marine Power Systems – Shipboard generator synchronization and electrical load management.
• Combined Heat and Power (CHP) Systems – Generator coordination for utility parallel operation.

Technical Pitfalls to Avoid

1. Verify CT/PT Scaling Before Startup
   Incorrect voltage transformer or current transformer settings can cause inaccurate measurements and failed synchronization attempts.
2. Check Breaker Close Timing Parameters
   Synchronizers depend on breaker operating time compensation. Incorrect timing values can create phase mismatch during closing.
3. Save Existing Configuration Before Replacement
   The replacement controller may require complete restoration of synchronization limits, load sharing parameters, and communication settings.

Related Products

• Woodward 8440-1706A
  Updated SPM-D11 synchronizer variant. Used as a later hardware revision within the same application family. Verify firmware and configuration compatibility before replacement.
• Woodward SPM-D11 Series
  Generator synchronizer platform designed for automatic paralleling, voltage matching, and frequency control applications.
• Woodward easYgen-3000 Series
  Integrated generator controller family providing synchronization, load sharing, engine control, and ATS functions for more complex genset applications.
• Woodward easYgen-3500
  Advanced genset controller supporting generator and mains paralleling, breaker control, CAN communication, and SCADA integration.
• Woodward 8440-2047
  EasyGen series controller option for generator control and parallel operation applications. Used where integrated genset management is required.
• Woodward RP-3500 Remote Panel
  Remote operator interface accessory for compatible Woodward generator controllers.
• Woodward Toolkit Software
  Configuration software used for parameter setup, diagnostics, and commissioning of Woodward control devices.
• Woodward LSXR Synchronizer Platform
  Related synchronizing controller family used in generator paralleling systems.
