Description
Woodward 5501-372 | High Density Analog I/O Triplex FTM | MicroNet TMR
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5501-372 |
| Component Type | Field Termination Module |
| FTM Type | High Density Analog I/O Triplex |
| System Family | MicroNet / MicroNet Plus TMR |
| Architecture | TMR |
| Primary Function | Analog field-signal termination |
| Associated Module | 5466-257 |
| Associated Module | 5466-1115 |
| System Application | 5009FT / MicroNet TMR |
| Active Electronics | Termination/interface hardware rather than an analog controller |
Woodward’s documentation places 5501-372 on the field-termination side of the I/O architecture, rather than identifying it as a CPU, analog converter, or standalone governor controller.
Product Introduction

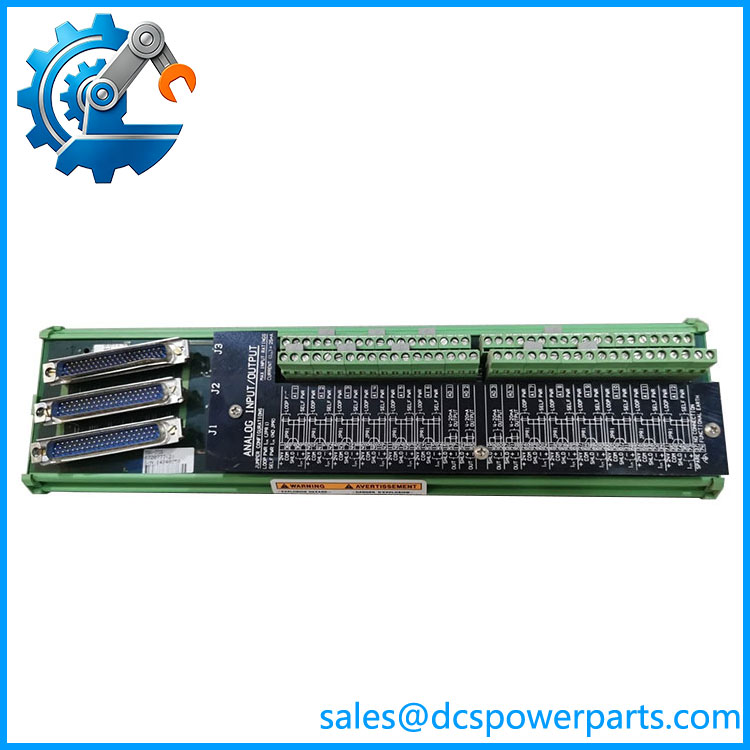

The Woodward 5501-372 is a High Density Analog I/O Triplex Field Termination Module (FTM) designed for compatible MicroNet TMR control-system configurations. It provides the field-side termination and interface arrangement required by high-density analog I/O modules within the triplicated architecture.
In the Woodward 5009FT MicroNet+ TMR layout, the 5501-372 appears with the 5466-1115 TMR High Density Analog Combo I/O and with the optional 5466-257 TMR High Density Analog I/O. That relationship is important when ordering a replacement: the FTM and I/O module should be checked as a matched system rather than treated as interchangeable generic analog hardware.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a turbine control system develops several analog-channel problems at once, replacing the I/O module is not always the right first move. A common termination component can affect multiple signals, and an incorrect FTM can create wiring or channel-assignment problems even when the controller and I/O electronics are healthy.
5501-372
Typical Applications
- Woodward MicroNet TMR turbine-control systems
- Woodward 5009FT control systems
- High-density analog I/O installations
- TMR analog signal termination and field wiring
- Maintenance replacement for legacy MicroNet FTM assemblies
Technical Pitfalls
1. 5501-372 is an FTM, not an analog I/O processor.
Some secondary listings describe it as an “analog I/O module” or “digital governor control.” Those descriptions are misleading. Woodward’s documentation identifies the part specifically as a High Density Analog I/O Triplex FTM.
2. Match the FTM to the actual I/O module.
Woodward’s 5009FT layout pairs 5501-372 with 5466-1115 and, in optional configurations, 5466-257. A visually similar FTM should not be assumed compatible without checking the system documentation.
3. Do not confuse 5501-372 with 5501-502.
Both appear in MicroNet TMR analog I/O configurations, but Woodward lists them as separate FTM components. The documented 5466-1115 arrangement can use both 5501-502 and 5501-372, so the exact cabinet wiring should be checked before replacement.
4. Check the cable as part of the replacement.
The 5009FT documentation associates high-density analog modules with specific Woodward cable arrangements. A correct FTM with an incorrect cable or termination arrangement can still leave the system with missing or misassigned signals.
5. TMR wiring deserves careful inspection.
With triplex architecture, three signal paths have to remain correctly associated. During maintenance, document the original wiring and connector positions before removing the FTM.
6. Do not infer channel assignments from the FTM alone.
The FTM is part of a larger I/O chain. Actual channel function depends on the connected I/O module, application configuration, cable arrangement, and system drawings.
Related Products
- Woodward 5466-257 — TMR High Density Analog I/O module; documented with two 5501-372 FTMs in the 5009FT architecture.
- Woodward 5466-1115 — TMR High Density Analog Combo I/O; documented with 5501-372 and 5501-502 FTMs.
- Woodward 5466-1105 — High Density Combo I/O with four speed inputs, selectable analog inputs, and four analog outputs; Woodward lists 5501-372 for its TMR termination arrangement.
- Woodward 5501-502 — companion FTM appearing in the MicroNet TMR high-density analog architecture.
- Woodward 5417-172 — MicroNet high-density analog/discrete cable used with documented TMR analog configurations.
- Woodward 5417-173 — 10-foot high-density analog/discrete GRA cable; used with selected high-density MicroNet I/O configurations.
- Woodward 5466-1051 — TMR HD Discrete I/O module; uses a different discrete-input FTM arrangement.
- Woodward 5453-279 — MicroNet Plus TMR main chassis used in the documented 5009FT architecture.
Procurement Note
For a 5501-372 replacement, provide the I/O module part number, chassis/system type, cable part number, and a photo of the existing FTM label and connectors. The most important question is not simply whether the replacement is physically identical; it is whether the FTM matches the installed MicroNet TMR analog I/O architecture.
A particularly useful cross-check is whether the existing system contains 5466-257, 5466-1115, or 5466-1105, since Woodward’s documentation associates those modules with specific FTM arrangements.
