Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CLS204 |
| Manufacturer | Watlow Anafaze |
| Product Series | CLS200 |
| Product Type | Multi-Loop Temperature / Process Controller |
| Control Loops | 4 independent loops |
| Analog Inputs | 4 differential inputs |
| Sensor Inputs | Thermocouple, RTD, voltage, current, pulse |
| Thermocouple Support | Types B, E, J, K, R, S, T |
| RTD Support | 2-wire and 3-wire platinum RTD |
| Input Sampling Rate | 6 samples/second per channel |
| Measurement Resolution | 0.006% (>14-bit resolution) |
| Noise Rejection | 120 dB at 60 Hz |
| Temperature Coefficient | 40 ppm/°C |
| Communication Interface | EIA/TIA-232 or EIA/TIA-485 |
| Communication Protocol | Modbus RTU, ANSI X3.28 compatible protocols |
| Baud Rate | 2400 / 9600 / 19200 selectable |
| Display Interface | 32-character vacuum fluorescent display with keypad |
| Power Supply | 15–24 VDC ±3 VDC |
| Digital Inputs | TTL-level inputs for recipes, triggers, and control functions |
| Typical Applications | Extruders, ovens, furnaces, semiconductor equipment, thermal processing |
Application Scenarios & Pain Points
Temperature control failures rarely appear as a simple controller fault. More often, operators see inconsistent product quality, heater cycling problems, or one zone drifting away from the process setpoint.
Typical applications:
- Plastic Extrusion: Used for multi-zone barrel temperature regulation where each heating section requires independent PID control.
- Semiconductor Processing: Applied in thermal chambers and equipment requiring repeatable temperature profiles.
- Industrial Furnaces: Controls multiple heating zones with thermocouple or RTD feedback.
- Laboratory and Test Equipment: Supports precise thermal control systems requiring serial monitoring and configuration.
Field note: A production line experienced unstable temperature on one heating zone after years of operation. The sensor and heater checked correctly, but the controller output response was inconsistent. Replacing the CLS204 and restoring the original PID settings returned the process to normal operation.

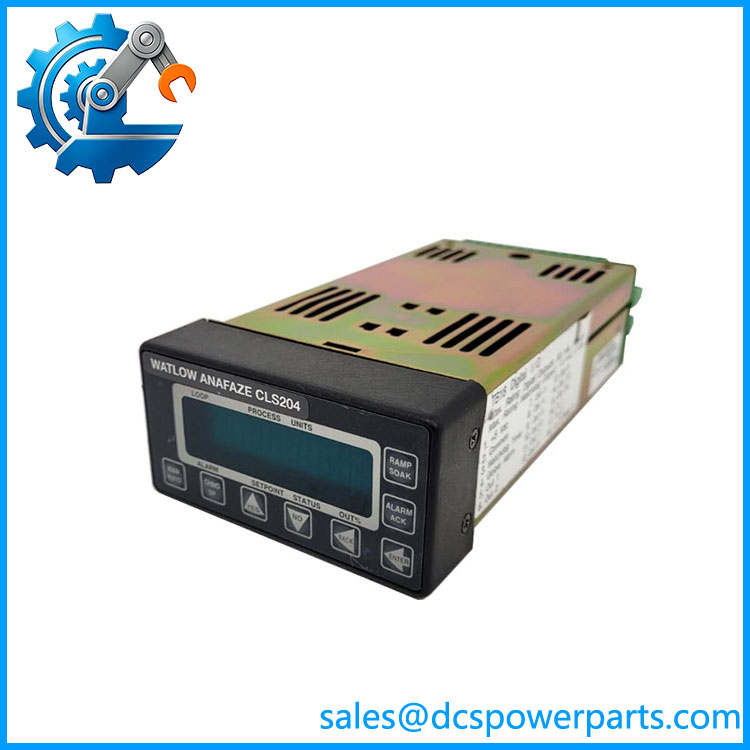

CLS204
Related Products
- Watlow CLS208 — Eight-loop version of the CLS200 controller family. Used for larger heating systems requiring additional temperature zones.
- Watlow CLS216 — Sixteen-channel controller variant. Suitable for complex thermal systems with many independent measurement points.
- Watlow CLS202/CLS203 — Smaller channel-count versions for applications requiring fewer control loops.
- Watlow Anafaze CLS200 Terminal Board — Provides field wiring connections for analog inputs, digital I/O, and control outputs.
- Watlow Anafaze SCSI Cable Assembly — Connects controller hardware to external terminal boards.
- Watlow EZ-ZONE PM Series — Newer Watlow temperature controllers used in applications replacing older multi-loop controllers.
- Watlow F4 Series Controller — Ramp/soak temperature controller for thermal processes requiring profile-based operation.
- Watlow SSR Power Controllers — Solid-state switching devices commonly paired with temperature controllers for heater load control.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Terminal Board Configuration Mismatch
CLS204 systems were available with different terminal board arrangements. A controller may power up while field wiring does not match the expected connections.
How to avoid: Confirm whether the installation uses the 18-pin or 50-pin terminal configuration before replacement.
⚠️ Sensor Type Configuration Errors
A thermocouple input configured as RTD, or the wrong thermocouple type selected, can create incorrect temperature readings.
How to avoid: Record every channel’s sensor type, scaling, input range, and calibration values.
⚠️ Lost PID Parameters After Replacement
A replacement controller may contain factory defaults rather than the machine’s tuned settings.
How to avoid: Save PID values, alarm limits, recipes, and communication parameters before removing the original unit.
Frequently Asked Questions (FAQ)
What is the Watlow Anafaze CLS204 used for?
The CLS204 is a four-loop industrial temperature/process controller designed for applications requiring multiple independent PID control channels. It accepts thermocouples, RTDs, and analog signals.
How many temperature zones can the CLS204 control?
The supports four independent control loops. Larger systems can use CLS208 or CLS216 models when additional channels are required.
Can the communicate with a PLC?
Yes. The controller supports EIA/TIA-232 and EIA/TIA-485 serial communication with Modbus RTU capability, allowing connection to PLCs, computers, and supervisory systems.
What sensors are compatible with the ?
Supported inputs include:
- Type B, E, J, K, R, S, T thermocouples
- Platinum RTD sensors
- Voltage and current transmitters
- Pulse inputs
Can I directly replace an older ?
Usually, but verify:
- Firmware option
- Terminal board type
- Power supply arrangement
- Communication settings
- Existing PID configuration
A matching catalog number alone may not guarantee identical field behavior.
Why does a replacement show incorrect temperature values?
Common causes include:
- Wrong sensor selection
- Incorrect input scaling
- Wiring polarity problems
- Missing calibration settings
- Damaged thermocouple compensation wiring
Is a refurbished Watlow suitable for industrial use?
A tested refurbished unit can be suitable when input channels, display operation, communication ports, output functions, and configuration retention are verified before installation.
