SHINKAWA VM-5Z4 Product Description
Product Overview
SHINKAWA VM-5Z4 is a power supply unit for the VM-5 Series rotating machinery monitoring system, designed to provide DC operating power to the monitoring modules installed in the same instrument rack. Unlike the VM-5C eccentricity monitor or VM-5K vibration monitor, the VM-5Z4 is primarily a rack-level power and power-failure monitoring component. SHINKAWA documentation identifies the VM-5Z1, VM-5Z2, VM-5Z3 and VM-5Z4 as VM-5 Series power supply units.
The SHINKAWA VM-5Z4 supplies stable power to VM-5 monitoring modules and incorporates a dedicated power-supply health indication and alarm contact output. Its fault-monitoring function allows a DCS, PLC or machinery protection system to recognize a loss or abnormal condition of the monitoring-system power supply. The VM-5Z4 is therefore an important infrastructure component in turbine and rotating-equipment monitoring racks, helping maintain the availability of vibration, eccentricity, displacement and other machinery-protection measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VM-5Z4 |
| Manufacturer | SHINKAWA Electric / SHINKAWA Sensor Technology |
| Product Series | VM-5 Series |
| Product Type | Power Supply Unit |
| Primary Function | Supplies DC power to VM-5 monitoring modules |
| Installation | VM-5 Series instrument rack |
| Power Consumption | 265 VA or less |
| Power Supply Status | OK monitoring |
| Alarm Output | Dry-contact relay |
| Alarm Contact Type | C contact |
| Contact Capacity | 250 VAC, 5 A / 30 VDC, 5 A |
| Relay Mode | Normally energized |
| Dielectric Strength | 2000 VAC, 1 minute between power supply and ground |
| Contact Life | 100,000 operations or more at rated load |
| Application | Rotating machinery monitoring/protection |
| Compatible System | SHINKAWA VM-5 monitoring system |
The published SHINKAWA VM-5 brochure confirms the VM-5Z4 power consumption of 265 VA or less, C-contact alarm output, 250 VAC/5 A and 30 VDC/5 A contact capacity, normally energized relay operation, and 2000 VAC dielectric strength.
Main Features and Advantages
Dedicated VM-5 Rack Power Supply
The SHINKAWA VM-5Z4 is specifically designed to power monitoring units installed within the VM-5 instrument rack. This dedicated architecture avoids relying on separate generic power supplies and provides a controlled power-distribution environment for critical machinery-monitoring electronics.
Power-Supply Failure Monitoring
A key feature of VM-5Z4 is its built-in power-supply status monitoring. The unit provides an OK indication and alarm contact output, allowing an external DCS, PLC or annunciator to identify a power-supply abnormality. This is particularly important because loss of power to a machinery-monitoring rack can otherwise appear as loss of measurement rather than an actual machine condition.
Fail-Safe Relay Arrangement
The power-supply monitoring relay operates in a normally energized mode. This arrangement allows a loss of the expected healthy condition to be detected as an alarm, supporting a fail-safe monitoring philosophy for critical rotating machinery.

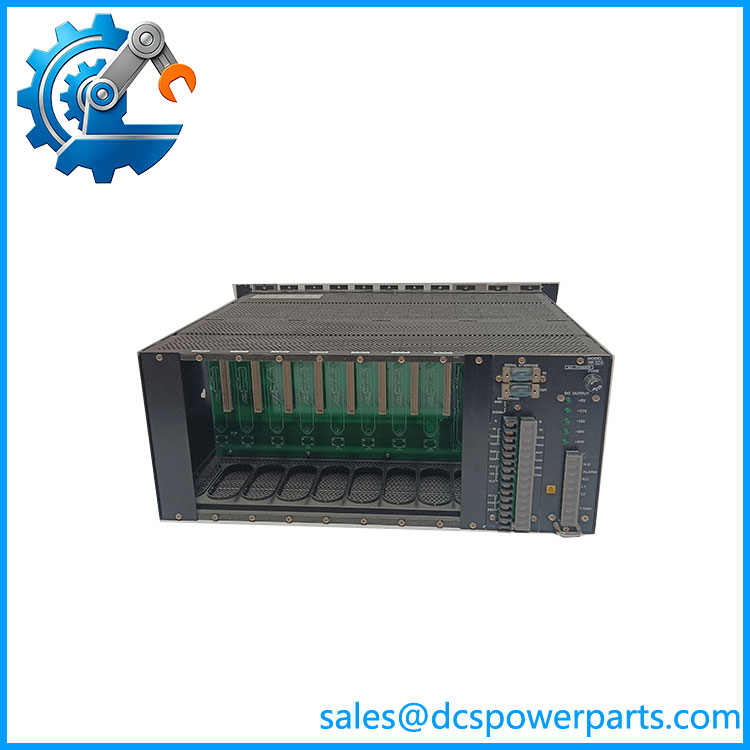

VM-5Z4
High-Capacity Alarm Contacts
The alarm contact is rated up to 250 VAC, 5 A or 30 VDC, 5 A, providing sufficient switching capability for many external alarm, annunciator and control-system interfaces. This allows the VM-5 rack’s power status to be incorporated into plant-level monitoring systems without necessarily requiring an additional signal-conditioning relay.
Electrical Isolation
The documented 2000 VAC dielectric strength between the power supply and ground provides a significant level of electrical isolation. This helps protect the monitoring rack and connected control architecture against potential differences and electrical disturbances.
Long-Service Industrial Design
The specified relay contact life of 100,000 operations or more at rated load is appropriate for an industrial monitoring system in which the power-health relay may remain energized continuously and operate primarily during abnormal conditions.
Important for Machinery Protection Availability
The VM-5Z4 is not itself the vibration or eccentricity measuring channel. Its importance lies in maintaining the availability of the monitoring rack. In a turbine protection architecture, a healthy power supply is a prerequisite for trustworthy vibration, eccentricity and displacement measurements.
Application Fields
SHINKAWA VM-5Z4 is used in rotating machinery monitoring and protection systems, especially installations built around the SHINKAWA VM-5 Series. It provides the rack-level power infrastructure required by monitoring modules such as vibration, eccentricity and displacement monitors.
In thermal power plants, the VM-5Z4 can supply the monitoring rack associated with steam turbines, generators and auxiliary rotating equipment. The power-health relay can be connected to the plant DCS or alarm system so operators receive an indication when the machinery-monitoring rack itself loses healthy power status.
In combined-cycle and gas-turbine facilities, the module can support VM-5 monitoring systems used for critical turbine and generator equipment. Maintaining stable monitoring-system power is essential because vibration and shaft-position information may be used for operational decisions, alarm management and machinery protection.
In oil and gas and petrochemical plants, the VM-5Z4 is applicable to compressor trains, turbine-driven equipment and other critical rotating machinery. A dedicated rack power-supply alarm can help maintenance personnel distinguish between a genuine machine abnormality and an instrumentation-system power failure.
In chemical plants, steel mills, marine equipment and other heavy industrial facilities, the VM-5Z4 can form part of a VM-5 rack containing multiple machinery-monitoring functions. It is especially suitable for legacy installations where the original VM-5 architecture must be maintained rather than replaced with a new monitoring platform. VM-5Z4 is also listed alongside VM-5H3, VM-5P3, VM-5Y1 and VM-5K in current industrial spare-parts references.
