SHINKAWA VM-5Y1-02/GEM 1594-005-P001G Product Description

Product Overview

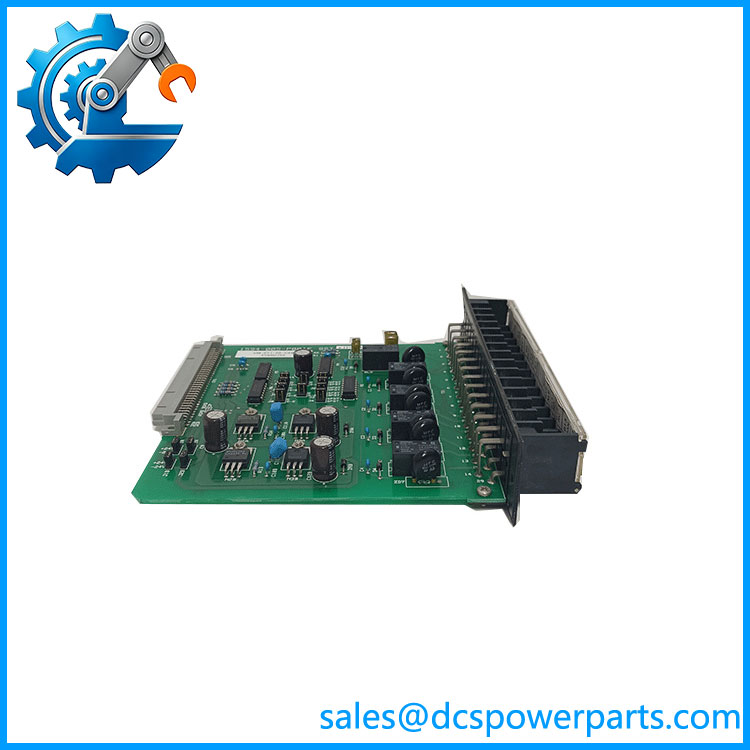

SHINKAWA VM-5Y1-02/GEM 1594-005-P001G is a specialized relay/interface module for the SHINKAWA VM-5 Series rotating machinery monitoring system. Available industrial references consistently associate the complete designation 1594-005-P001G with the VM-5Y1-02 module and identify it as a relay module used within SHINKAWA machinery-monitoring installations.

The SHINKAWA VM-5Y1-02/GEM 1594-005-P001G provides an interface between monitoring/protection logic and external plant control equipment. Installed in a VM-5 monitoring architecture, it can be used to transfer alarm and status information toward a DCS, PLC, annunciator or machinery protection circuit. The module is therefore complementary to measurement modules such as VM-5K vibration monitoring and VM-5C eccentricity monitoring, helping convert internal monitoring conditions into usable external relay signals.

Technical Specifications

Publicly available documentation for the exact VM-5Y1-02/GEM configuration is limited. Some secondary listings describe it as a relay module, while others incorrectly classify it as a vibration or rod-drop monitor. For procurement and replacement, the complete 1594-005-P001G designation and the physical module label should be used to verify the exact configuration.

Main Features and Advantages

Dedicated Relay Interface

The primary role of VM-5Y1-02/GEM is signal interfacing rather than direct vibration measurement. It works as an intermediate relay interface between VM-5 monitoring functions and external plant equipment, allowing alarm or operating-status information to be incorporated into existing control and protection circuits.

VM-5Y1-02

VM-5 Rack Compatibility

SHINKAWA VM-5Y1-02/GEM 1594-005-P001G is intended for the modular VM-5 architecture. This makes it particularly useful in existing turbine supervisory instrumentation systems where the monitoring rack already contains modules such as vibration, eccentricity, thrust or phase-marker monitors. The module can be maintained or replaced without redesigning the complete monitoring cabinet.

DCS and PLC Integration

Relay-based interfacing provides a straightforward method for transferring machinery-monitoring conditions to a plant DCS, PLC, ESD or annunciator system. This is valuable in legacy installations where hardwired alarm and trip signals remain an important part of the control architecture.

Protection-System Signal Separation

Separating measurement electronics from external relay interfaces helps prevent direct interaction between sensitive monitoring circuitry and downstream control wiring. This arrangement is useful for critical rotating equipment where vibration or machinery alarms must be reliably passed to independent control and protection circuits.

Maintenance-Friendly Replacement

The complete designation 1594-005-P001G is important when sourcing a replacement. Industrial listings also associate this part number with VM-5Y1-02, confirming that these designations are used for the same or closely related hardware.

Suitable for Legacy Machinery Protection

The VM-5 family is widely encountered in long-service turbine and rotating-machinery monitoring systems. The VM-5Y1-02/GEM is therefore particularly valuable as a maintenance spare where the existing VM-5 rack must remain operational and replacing the complete machinery-monitoring platform would create unnecessary engineering and commissioning work.

Application Fields

SHINKAWA VM-5Y1-02/GEM 1594-005-P001G is primarily suited to turbine supervisory instrumentation, rotating machinery monitoring and protection systems. Its relay/interface function allows alarm and status information generated by VM-5 monitoring equipment to be transferred into the wider plant automation architecture.

In thermal power plants, the module can be used with steam-turbine monitoring racks to interface vibration, eccentricity, thrust and other machinery alarms with the plant DCS or turbine protection system. This enables control-room operators to receive discrete indications when monitored parameters exceed configured limits.

In gas-turbine and combined-cycle facilities, the module can support turbine-generator and auxiliary machinery protection systems. Relay-based outputs are useful for alarm annunciation, interlocks and shutdown-related logic where deterministic hardwired signals are required.

In oil and gas and petrochemical plants, VM-5Y1-02/GEM can be integrated into compressor and turbine monitoring systems. It can help transfer critical machinery status information to ESD, PLC and DCS systems, supporting rapid operator response to abnormal rotating-equipment conditions.

The module is also applicable to chemical processing, metallurgy, marine propulsion, pulp and paper and other heavy industrial facilities using SHINKAWA VM-5 monitoring equipment. Its main value is maintaining a reliable interface between specialized machinery-monitoring electronics and the plant’s conventional control/protection infrastructure.

Related Products

• VM-5H3 — VM-5 instrument rack capable of accommodating multiple monitoring modules and associated interface hardware.
• VM-5Z4 — VM-5 rack power-supply unit providing operating power for the monitoring system.
• VM-5K SST-2194-001-P001G — Dual vibration monitoring module for rotating machinery vibration measurement.
• VM-5C SST-2194-001-P001G — Eccentricity monitoring module for rotor/shaft runout measurement.
• VM-5P3 — Phase-marker module providing shaft rotational reference information for machinery monitoring.
• VM-5T — Dual thrust monitoring module for axial-position/thrust measurement.
• VM-5S — Tachometer monitoring module for rotational-speed measurement.
• VM-5Y1-09 — Related VM-5 relay module; another relay/interface configuration within the VM-5 architecture.
