Description

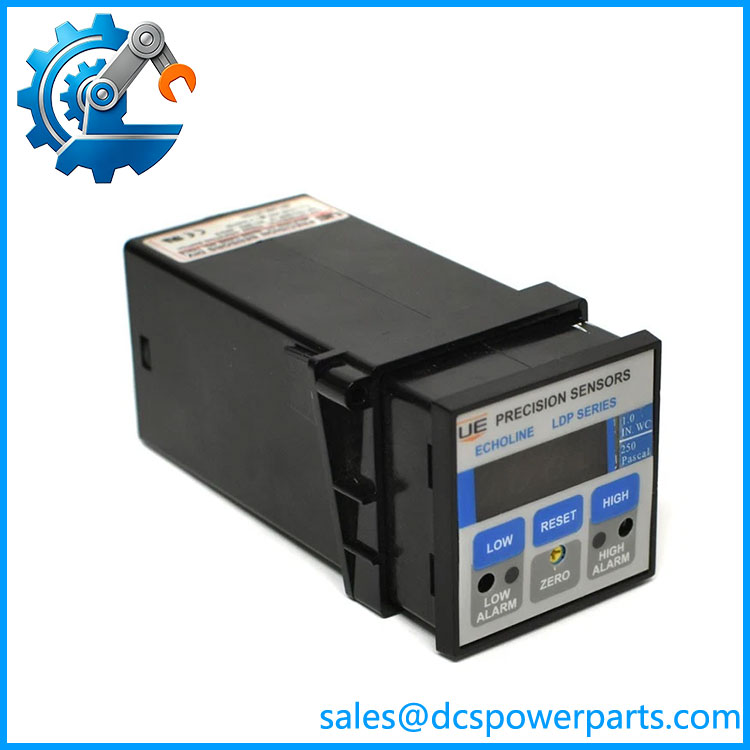

UE LDP1WC/250P-16 | Low Differential Pressure Switch | Filter and Airflow Monitoring
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LDP1WC/250P-16 |
| Device Type | Low differential pressure switch |
| Pressure Function | Differential-pressure monitoring |
| Reported Setpoint | 250 Pa |
| Switching Function | Mechanical discrete contact |
| Pressure Connection | Verify against installed unit/nameplate |
| Electrical Rating | Verify exact contact rating before wiring |
| Installation | Pressure tubing / mechanical mounting |
| Output | Hardwired switch contact |
| Typical Use | Filter and airflow differential-pressure alarm |
The 250 Pa setpoint and SPDT contact configuration are reported by secondary sources, while other listings provide contradictory electrical ratings. Treat the physical nameplate and OEM documentation as the final authority for a replacement order.
Product Introduction
The UE LDP1WC/250P-16 is a low differential pressure switch intended for applications where a pressure difference must be converted into a discrete alarm or control signal. It is particularly relevant to filter restriction and airflow monitoring circuits, where a pressure rise across a filter can be used to trigger a maintenance alarm or building-management input.
For procurement, this is a device where the exact suffix matters. A similar-looking pressure switch with a different setpoint, contact arrangement, or pressure connection is not automatically a drop-in substitute.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A differential-pressure switch can look like a simple component until a replacement trips at the wrong pressure. In a filter-monitoring circuit, changing the setpoint can produce nuisance alarms or delay a maintenance alarm long enough to affect airflow. The LDP1WC/250P-16 should therefore be matched by complete model designation rather than by the generic description “low pressure switch.”
LDP1WC/250P-16
Typical Applications
- Air filter monitoring — Detects increasing pressure drop as filter restriction develops.
- Ventilation systems — Provides a discrete airflow or pressure-difference alarm.
- Cleanroom and process-air equipment — Supports filter-condition monitoring.
- Industrial equipment protection — Can be integrated into a PLC, DCS, BMS, or hardwired alarm circuit where a pressure threshold is required.
Technical Pitfalls
- Do not substitute by pressure range alone. The 250 Pa designation is important to the application and should be confirmed against the installed switch.
- Verify the contact arrangement. A replacement with a different NO/NC/SPDT arrangement can reverse the alarm logic even though the mechanical pressure function appears identical.
- Check the pressure ports and tubing. Mechanical compatibility is just as important as the electrical interface.
- Confirm the actual trip point. Secondary documentation reports a 250 Pa fixed setpoint and ±5% setpoint accuracy, but this should be treated as configuration-specific rather than assumed for every LDP1WC unit.
- Inspect the old switch before installation. Contaminated tubing, blocked sensing ports, vibration, and mounting stress can cause a correctly functioning switch to appear faulty.
- Do not treat it as an analog pressure transmitter. The primary function is threshold switching. If the control system requires continuous pressure measurement, a transmitter is a different device class.
Related Products
- LDP1WC/250P-17 — Reported as a closely related 250 Pa variant; verify diaphragm/material and terminal configuration before substitution.
- — Similar family designation but different reported pressure setpoint; not a direct functional equivalent where 250 Pa trip pressure is required.
- LDP2WC/250P-16 — Related differential-pressure switch designation; mounting and pressure-interface differences must be checked.
- — Useful reference family when identifying replacement pressure switches.
- ECHOLINE LDP Series — Low differential-pressure switching family associated with the designation.
Procurement Note
For a plant replacement, specify the complete /250P-16 designation, not simply “UE 250 Pa pressure switch.” Before issuing a purchase order, compare the old unit’s setpoint, contact arrangement, pressure connection, enclosure designation, and nameplate revision. If the installed unit is part of a safety or interlock circuit, verify the approved component list and electrical contact rating as well.
