Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX / Schneider Electric |
| Model | IMSS 4701X |
| Product Type | Intelligent Main Subsystem Module |
| System Platform | Tricon Safety Instrumented System |
| Function | Subsystem communication and interface management |
| Architecture | Triple Modular Redundant (TMR) safety system |
| Communication Function | Intelligent subsystem data exchange |
| Diagnostics | Tricon system diagnostics and status monitoring |
| Installation | Tricon controller chassis |
| Configuration | Tricon engineering software environment |
| Application Areas | SIS, ESD, process protection, critical automation |
| Operating Environment | Industrial control cabinet |
Product Introduction
TRICONEX IMSS 4701X Overview
The TRICONEX IMSS 4701X is an intelligent subsystem interface module designed for integration within Tricon safety instrumented system architectures. The module provides communication and management functions required when a Tricon controller exchanges information with external intelligent subsystems or specialized plant equipment.
The TRICONEX IMSS 4701X operates within the Tricon safety platform, supporting data communication, subsystem monitoring, and system coordination functions while maintaining the fault-tolerant design principles of the Tricon architecture. Unlike conventional PLC communication modules, the IMSS module is part of a safety-oriented control environment where communication integrity and diagnostic visibility are important considerations.
The TRICONEX IMSS 4701X is typically found in process plants where Tricon systems interface with other control layers, packaged equipment, or intelligent field systems. Typical applications include refinery units, chemical plants, offshore facilities, and power generation systems. Replacement requires checking the existing Tricon hardware configuration, firmware compatibility, communication setup, and application database.

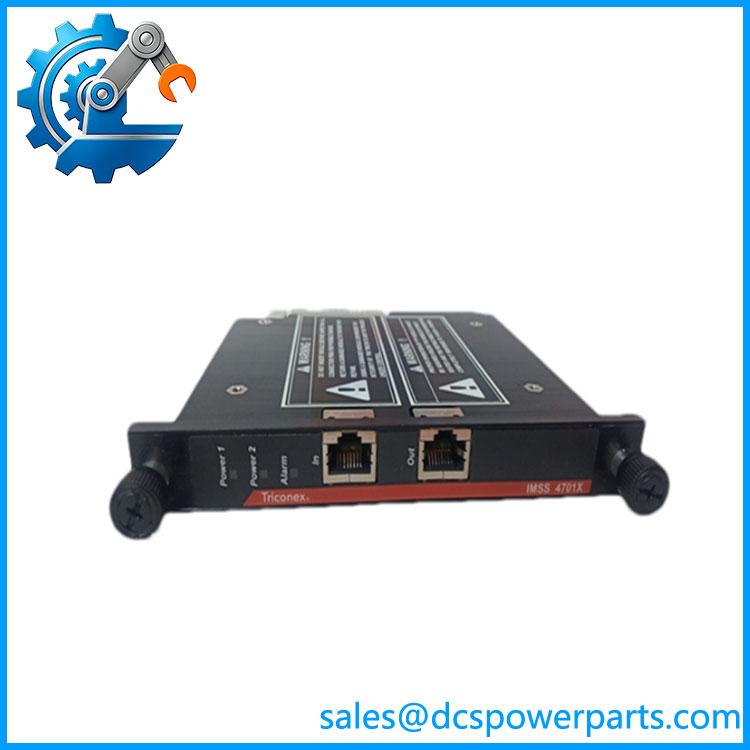

IMSS 4701X
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A safety system remains operational, but communication with a connected subsystem becomes unreliable. Operators may see missing status information, stale data, or communication diagnostic alarms.
The troubleshooting path should include:
- Network communication status
- Module diagnostics
- Cable and termination checks
- External subsystem configuration
- Tricon database settings
The TRICONEX IMSS 4701X is part of the communication layer, so the fault may exist outside the module itself.
Typical Applications
Oil and Gas Facilities
Used for integration with:
- Emergency shutdown systems
- Burner management systems
- Compressor packages
- Process protection systems
Chemical and Petrochemical Plants
Applied in:
- Reactor safety systems
- Process interlock systems
- Plant-wide safety networks
Power Generation
Used for:
- Turbine protection interfaces
- Boiler safety systems
- Auxiliary equipment monitoring
Industrial Infrastructure
Applied where Tricon safety controllers exchange information with:
- PLC systems
- DCS platforms
- Packaged equipment controllers
Technical Pitfalls to Avoid
1. Confirm Exact Tricon Platform Compatibility
The IMSS 4701X must match the installed Tricon controller generation, chassis configuration, and firmware environment.
Verify:
- Main processor type
- Tricon I/O configuration
- Module firmware revision
- Engineering database
2. Check Communication Parameters
Many communication faults are caused by configuration issues rather than hardware failure.
Review:
- Node addressing
- Communication settings
- External device configuration
- Network wiring
3. Preserve Existing Configuration
Before replacing the module, record:
- Communication mappings
- Application logic references
- Diagnostic settings
- Network parameters
Restoring the physical module without restoring configuration may not return the system to normal operation.
4. Consider System Diagnostics First
Tricon systems provide extensive diagnostics. Review module status indicators and system logs before removing hardware.
