Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AI3351S2 |
| Manufacturer | TRICONEX |
| Platform | Tricon Safety Instrumented System |
| Product Type | Analog Input Module |
| Architecture | Triple Modular Redundant (TMR) |
| Input Points | 32 commoned analog inputs |
| Input Signal | 4–20 mA DC |
| Operating Input Range | 2–22 mA DC |
| Maximum Field Voltage | 33 VDC |
| Maximum Input Current | 50 mA DC |
| Resolution | 12-bit |
| Accuracy | ±0.15% full scale |
| Input Bandwidth | 16 Hz |
| Scan Time | Less than 1 ms for all 32 points |
| Diagnostics | Force-to-Value Diagnostic (FVD) |
| Isolation | 500 VDC functional-to-protective earth; 800 VDC functional-to-functional earth |
| Hot Spare Support | Yes |
| Typical Applications | ESD, SIS, burner management, process safety systems |
Application Scenarios & Pain Points
The analog input layer is one of the most important parts of a safety system because incorrect process data can affect shutdown decisions. The TRICONEX AI3351S2 is commonly used where continuous monitoring of pressure, temperature, flow, and level transmitters is required inside safety-rated applications.
Typical applications:
Emergency Shutdown Systems (ESD)
The TRICONEX AI3351S2 receives signals from field transmitters monitoring critical process conditions. These values are processed by the Tricon controller to determine whether protective action is required.
Oil & Gas Processing Facilities
Used for monitoring:
- Pressure transmitters
- Flow measurement devices
- Tank level instruments
- Process shutdown inputs
These applications require stable analog acquisition because unexpected trips can affect production availability.
Chemical and Petrochemical Plants
Safety loops often depend on multiple analog measurements. The AI module provides continuous signal acquisition with internal diagnostics to identify channel-level problems.
Power Generation Safety Systems
Applied in turbine auxiliary systems, fuel systems, and process protection areas where safety logic requires reliable analog measurements.
Field note: A processing facility experienced intermittent SIS input alarms from several transmitters. Initial troubleshooting focused on field instruments, but diagnostics identified an analog input channel issue. Replacing the AI module and validating the field termination restored normal operation without changing the transmitters.

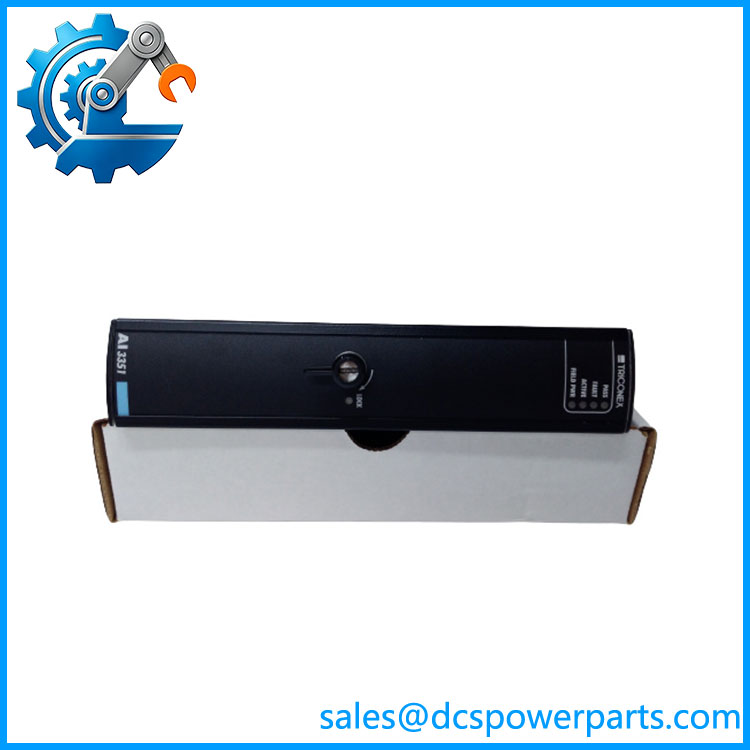

AI3351
Related Products
- TRICONEX AI3351 — Standard 3351 analog input module family. The AI3351S2 is a specific revision/configuration within this module family.
- TRICONEX AO3481S2 — Analog output module used for continuous control signals in Tricon systems.
- TRICONEX DI3401S2 — Digital input module for safety-related discrete field signals.
- TRICONEX DO3401S2 — Digital output module for actuator and shutdown commands.
- TRICONEX 2351 Baseplate — Typical termination baseplate associated with 3351 analog input applications.
- TRICONEX 2354 / 2354A Baseplate — Supports HART communication applications with compatible 3351 analog input modules.
- TRICONEX MP3008 Main Processor Module — Executes safety logic and communicates with I/O modules.
- TRICONEX 3008N — Main processor module used in newer Tricon controller configurations.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Mixing AI3351 Revisions Without Checking Configuration
Different AI module revisions may appear identical but can have different supported functions.
How to avoid:
Verify:
- Exact module suffix
- TriStation hardware configuration
- Firmware compatibility
- Baseplate model
⚠️ Ignoring Field Loop Problems
Replacing an AI module does not fix problems caused by:
- Damaged transmitter wiring
- Incorrect loop power
- Grounding issues
- Signal interference
How to avoid:
Check:
- 4–20 mA loop current
- Shield grounding
- Terminal connections
- Field power supply quality
⚠️ Skipping Hot-Swap Procedures
Tricon systems support online replacement, but improper handling can create unnecessary faults.
How to avoid:
Follow approved replacement procedures:
- Confirm module identification
- Verify spare module configuration
- Check PASS/FAULT indicators after installation
- Confirm controller diagnostics
Frequently Asked Questions (FAQ)
What is the TRICONEX AI3351S2 used for?
The TRICONEX AI3351S2 is a 32-point analog input module used in Tricon safety systems to acquire 4–20 mA process signals from field instruments and provide validated data to the safety controller.
Is a standard PLC analog input module?
No. It is designed specifically for Triconex safety instrumented systems and includes TMR architecture and safety diagnostics not found in typical PLC I/O modules.
How many channels does support?
The module provides 32 commoned analog input points.
What input signals can accept?
The standard configuration supports:
- 4–20 mA DC current loops
- 2–22 mA operational range
Does support hot replacement?
Yes. Tricon systems support hot-spare operation, allowing replacement procedures without shutting down the complete safety system when properly configured.
What are common failure symptoms?
Typical symptoms include:
- AI channel fault alarms
- Loss of transmitter values
- Module FAULT indicator
- Incorrect analog readings
- SIS diagnostic warnings
Does replacing require programming?
The hardware replacement itself may not require a full application download, but engineers should verify TriStation configuration, module addressing, and system diagnostics after replacement.
Is a refurbished TRICONEX suitable for SIS applications?
A tested refurbished unit can be suitable when input accuracy, diagnostics, channel operation, connector condition, and compatibility with the installed Tricon configuration are verified before installation.
