Description
Product Introduction

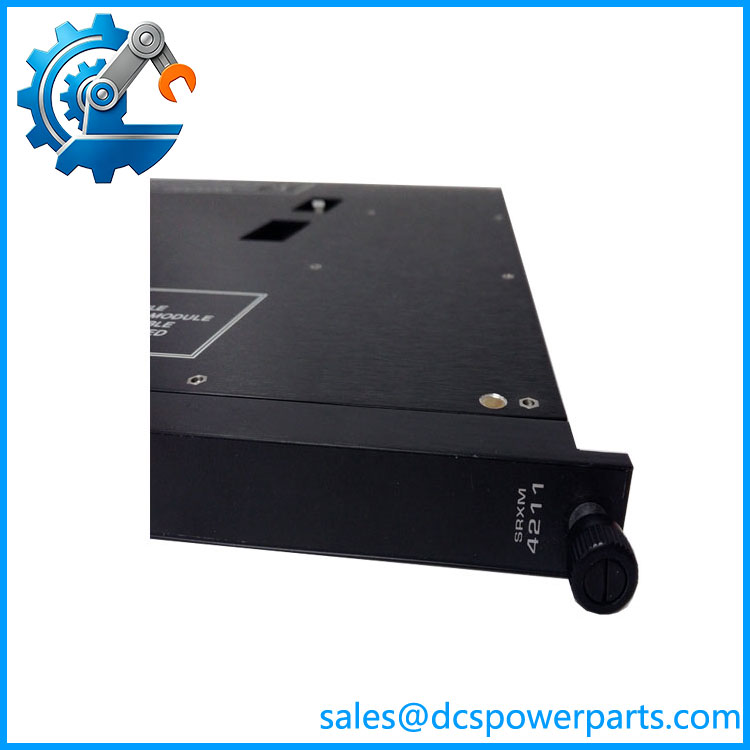

The TRICONEX 4211 is a digital input module associated with the Triconex Tricon safety instrumented system (SIS). Tricon systems use a Triple Modular Redundant (TMR) architecture in which critical control and safety functions are implemented with redundant processing and I/O paths. The 4211 provides the interface between discrete field devices and the Tricon safety controller.
The TRICONEX 4211 should be regarded as safety-system hardware rather than as a conventional PLC digital input card. Its purpose is to acquire discrete process information that can participate in safety logic, shutdown sequences, permissives, alarms, and other critical functions. The exact electrical characteristics depend on the specific 4211 hardware variant and associated termination arrangement.
For maintenance work, the full Tricon hardware configuration matters. A replacement module should match the installed chassis, module position, termination panel, field wiring, firmware/hardware revision requirements, and application configuration. A visually similar Tricon I/O module is not automatically a valid substitute.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex / Schneider Electric |
| Model | 4211 |
| Product Type | Digital Input Module |
| System | Tricon Safety Instrumented System |
| Architecture | Triple Modular Redundant |
| I/O Type | Discrete Digital Input |
| Application | Safety and shutdown systems |
| Field Devices | Contacts, switches, discrete transmitters and alarms |
| Processing | Tricon TMR safety architecture |
| Installation | Tricon chassis |
| Field Termination | Application/configuration dependent |
| Communication | Tricon internal I/O architecture |
| Operating Temperature | Verify exact hardware revision |
| Input Voltage | Verify exact 4211 variant |
| Channel Count | Verify exact module revision/nameplate |
| Product Status | Legacy/service hardware |
Main Features and Engineering Considerations
TMR Safety Architecture
The principal characteristic of the TRICONEX 4211 is its use within the Tricon TMR architecture. Tricon systems are designed so that a single hardware fault does not necessarily result in loss of the safety function. The architecture uses redundant processing and voting techniques to maintain control availability while detecting faults.
This is fundamentally different from a conventional single-channel PLC I/O system.
TRICONEX 4211
Safety-Critical Digital Acquisition
The 4211 is used to bring discrete field information into the Tricon system. Depending on the plant application, these signals can include shutdown contacts, equipment status, permissives, limit switches, alarms, and other discrete process conditions.
System-Level Compatibility
A Tricon I/O module cannot be evaluated independently of the rest of the safety system. The correct termination arrangement, chassis position, I/O configuration, and system revision must be considered.
For replacement work, engineers should compare the existing module’s:
- Part number
- Hardware revision
- Keying
- Chassis position
- Termination panel
- Field wiring
- Controller configuration
- Firmware compatibility
Application Scenarios
The TRICONEX 4211 is relevant to:
- Safety Instrumented Systems
- Emergency shutdown systems
- Process shutdown applications
- Oil and gas facilities
- Petrochemical plants
- Chemical processing
- Power generation
- Refining systems
- Turbomachinery protection
- Critical industrial process control
Engineer’s Guide: Field Pitfalls
⚠️ Do not treat 4211 as a generic PLC input card.
It is part of a safety-system architecture, so replacement criteria are considerably stricter than for ordinary PLC I/O.
⚠️ Verify the exact variant.
The model number alone may not provide enough information to establish input voltage, channel configuration, revision, or termination compatibility.
⚠️ Check the termination assembly.
Tricon field termination is an integral part of the I/O installation. Incorrect termination hardware can create wiring and diagnostic problems.
⚠️ Do not rely on a power-on test.
For safety-system hardware, the meaningful test is an appropriate system-level or module-level diagnostic/functional test.
⚠️ Preserve configuration data.
Before replacement, document the existing I/O configuration, channel assignments, alarm behavior, trip logic, and diagnostic status.
Frequently Asked Questions
What is TRICONEX 4211?
It is a Triconex digital input module used within the Tricon safety instrumented system.
Is 4211 a standard PLC I/O module?
No. It is designed for the Tricon safety-system architecture and should not be evaluated as an ordinary PLC input card.
What architecture does Triconex use?
Tricon is based on Triple Modular Redundancy (TMR) for high-integrity safety applications.
Where is 4211 used?
It can be encountered in emergency shutdown, process safety, shutdown logic, and other safety-critical discrete-input applications.
What should be checked before purchasing?
- TRICONEX 4211
- Complete part number/nameplate
- Hardware revision
- Input voltage
- Channel configuration
- Tricon chassis compatibility
- Termination panel
- Keying arrangement
- System firmware/configuration
- Safety-system functional test
Procurement note: For TRICONEX 4211, I would not approve a replacement based solely on the model number and a “tested OK” statement. The exact hardware revision, termination arrangement, system configuration, and safety-function test should be documented before the module is returned to service.
