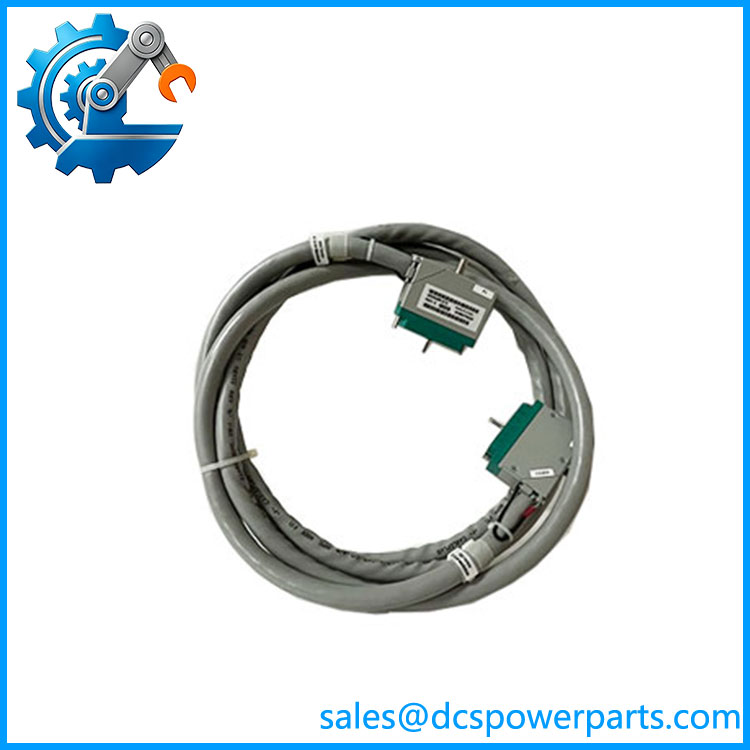

TRICONEX 4000098-510 | Cable Assembly for Triconex Analog Output Termination
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex / Invensys |
| Part Number | 4000098-510 |
| Product Type | Cable Assembly |
| Cable Length | 10 ft / approximately 3.05 m |
| Associated Termination | 9853-610 |
| Associated Termination | 9863-710 |
| System | Tricon Safety System |
| Application | I/O termination and field wiring interface |
The Tricon technical product guide specifically maps 9853-610 → 3000400-530 → 4000098-510 and 9863-710 → 1600049-010 / 1600049-100 → 4000098-510. This makes the termination-panel relationship more useful for procurement than generic descriptions that label the part as a network cable.
Product Introduction
The TRICONEX 4000098-510 is a dedicated cable assembly used within legacy Tricon safety-system I/O architectures. Its documented cross-reference to the 9853-610 and 9863-710 termination assemblies indicates that it belongs to the physical connection layer between Triconex I/O hardware and field termination equipment.
For maintenance teams, the cable should be treated as a system-specific interconnect, rather than a generic Ethernet or communication cable. Replacing it with a visually similar cable without confirming the termination assembly and connector arrangement can create wiring errors during an outage.
4000098-510
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common problem during Tricon maintenance is finding the correct termination cable after the original cable has been removed, damaged, or mixed with other cabinet wiring. The part number matters because several Tricon termination assemblies use different cable families. The technical guide shows that 4000098-510 is not interchangeable across the entire Tricon I/O range.
Typical Applications
- Triconex analog output termination wiring
- Replacement of damaged cabinet-to-I/O cable assemblies
- Planned Tricon safety-system maintenance
- Legacy Tricon system refurbishment and spare-parts stocking
Technical Pitfalls
- Do not classify it as a processor. Several current reseller pages incorrectly identify 4000098-510 as a Tricon main processor. The technical cross-reference identifies it as a cable, not a controller module.
- Do not assume Ethernet compatibility. One secondary listing describes the part as a network cable, but the Tricon technical guide places 4000098-510 in the I/O termination-cable cross-reference.
- Verify the termination assembly first. The documented relationships include both 9853-610 and 9863-710. Confirm the installed termination-panel model before ordering a replacement cable.
- Check connector condition during replacement. For legacy safety-system cabinets, worn contacts, damaged locking hardware, or incorrect routing can produce intermittent I/O faults even when the cable itself has passed a basic continuity check.
- Verify cable length and physical routing. Secondary documentation identifies the assembly as approximately 10 ft long. Do not substitute a shorter cable merely because the connectors appear identical.
Related Products
- 9853-610 — Triconex basic analog-output termination panel associated with 4000098-510.
- 9863-710 — Triconex termination assembly also cross-referenced to 4000098-510.
- 3000400-530 — ETA associated with the 9853-610 / 4000098-510 combination.
- 1600049-010 — ETA associated with 9863-710 and 4000098-510.
- 1600049-100 — Alternate ETA reference associated with 9863-710 and 4000098-510.
- 4000163-510 — Different Tricon cable used with other termination hardware; not a direct substitute.
- 4000157-510 — Cable associated with other Tricon termination assemblies; verify the I/O model before substitution.
- 4000164-510 — Cable family used with other Tricon termination configurations.
Procurement Note
