Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3708EN |
| Manufacturer | Triconex / Invensys |
| System | Tricon V9 / V10 |
| Product Type | Isolated thermocouple input |
| Architecture | TMR |
| Input Channels | 16 |
| Input Configuration | Differential, isolated |
| Thermocouple Types | J, K, T, E |
| Input Update Rate | 50 ms maximum |
| Open-Input Detection | Upscale or downscale, configurable |
| Input Resistance | 30 MΩ DC minimum |
| Input Protection | 110 VAC continuous without damage |
| Common-Mode Range | ±200 VDC maximum |
| Reference-Junction Compensation | 0–60°C |
| Module Indicators | PASS, FAULT, ACTIVE, CJ fault |
| Logic Power | <15 W |
| Color Code | Deep yellow |
The Tricon safety documentation specifically identifies 3708EN as an isolated thermocouple module with 16 differential isolated inputs, supporting J, K, T, and E thermocouples. It also identifies the cold-junction fault indicator and programmable burnout detection.
Product Introduction
The TRICONEX 3708EN is an isolated TMR thermocouple input module used in Tricon safety systems for temperature measurement. It accepts 16 differential thermocouple inputs and supports J, K, T, and E thermocouple types. Each input is isolated, while the module performs thermocouple linearization and cold-junction compensation as part of the Tricon control architecture.
For plant maintenance, the isolation is important because temperature sensors may be distributed across equipment with different electrical potentials and noise environments. The module also provides continuous diagnostics and hot-spare capability within the Tricon architecture, allowing maintenance planning without treating the module as an ordinary PLC analog-input card.

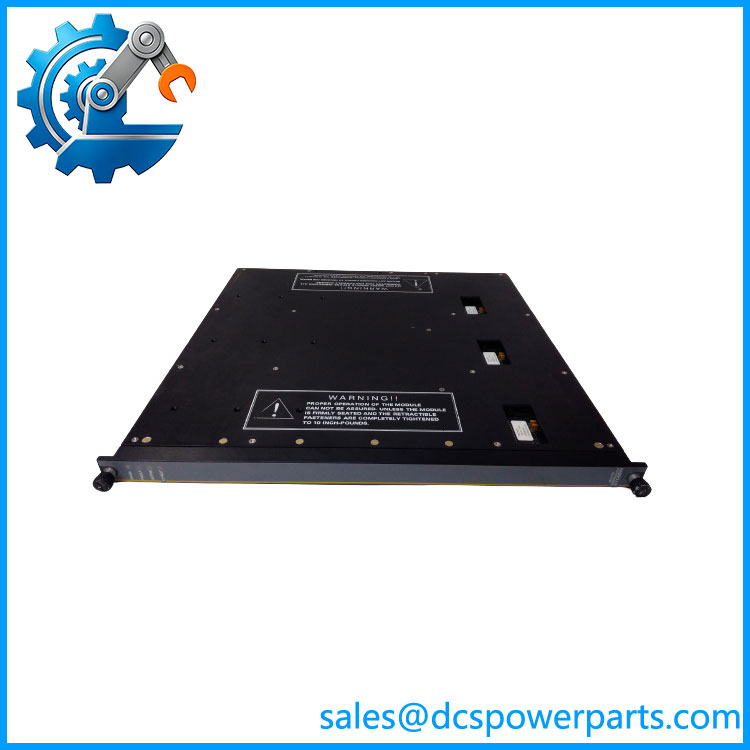

3708EN
Application Scenarios & Field Pitfalls
Engineering Pain Point
The biggest risk with a 3708EN replacement is misidentifying the module as a conventional thermocouple input card. This is a TMR safety-system module, and its termination hardware, Tricon chassis compatibility, configuration, and system version all need to match.
Typical Applications
- Refinery and petrochemical SIS: furnace, heater, reactor, and process-temperature monitoring.
- Power generation: boiler, turbine auxiliary, combustion, and high-temperature equipment protection.
- Chemical processing: reactor and process-vessel temperature monitoring.
- Industrial burner systems: temperature measurements used as part of shutdown or protective logic.
Technical Pitfalls to Avoid
- Do not substitute an RTD module. The 3708EN is a thermocouple module supporting J/K/T/E types. Some recent reseller listings incorrectly describe 3708EN as an RTD input module; that identification conflicts with the Tricon safety documentation.
- Do not confuse 3708EN with 3706A. Both are Tricon thermocouple modules, but 3706A is non-isolated while 3708E/3708EN is isolated. The Tricon documentation specifically classifies 3708EN as differential, isolated, TMR.
- Check the termination arrangement and system generation. The thermocouple modules use an external termination panel and cable interface to the Tricon backplane. Tricon documentation also shows 3708EN as the V9/V10 certified designation associated with the standard 3708 module.
- Do not use generic 24 VDC/Modbus/PROFIBUS specifications from reseller pages. Those descriptions are inconsistent with the documented function of the 3708EN and appear to confuse it with unrelated Triconex hardware.
Related Products
- 3708E — Standard isolated TMR thermocouple input module corresponding to the 3708EN designation used in certain certified Tricon documentation.
- 3706A — Non-isolated 16-point TMR thermocouple input; functionally related but not an automatic replacement for an isolated 3708EN installation.
- 3703EN — 16-point isolated analog input for 0–5 VDC or 0–10 VDC signals; same general isolated AI family but not a thermocouple interface.
- 3704E — 64-point commoned TMR analog input supporting 0–5 VDC or 0–10 VDC; substantially different signal architecture.
- 3721N — 32-point differential DC-coupled analog input used in Tricon systems; not a thermocouple-specific module.
- 3805EN / 3805HN — TMR 4–20 mA analog output modules, intended for output rather than temperature acquisition.
- 3511N — TMR pulse input module for rotating-equipment speed measurement; different signal type and application.
- 4352AN — Tricon Communication Module for system communications; not an I/O replacement for 3708EN.
Procurement Check
For TRICONEX 3708EN, verify the complete 3708EN / 3708 designation, Tricon chassis generation, hardware revision, external termination panel, interface cable, thermocouple type, and existing TriStation configuration before ordering.
One critical correction for procurement records: classify this part as an isolated 16-channel TMR thermocouple input module, not an RTD module, digital I/O module, or generic 24 VDC communication module. The latter descriptions found online are not consistent with the Tricon technical documentation.
