Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex / Invensys |
| Model | 3604E |
| Product Type | TMR Digital Output Module |
| System Family | Tricon v9–v11 |
| Nominal Voltage | 24 VDC |
| Field Voltage Range | 22–45 VDC |
| Output Channels | 16 |
| Output Configuration | Non-commoned |
| Maximum Current | 2 A per point |
| Surge Current | 10 A for 10 ms |
| Logic Power | <10 W |
| Load Leakage | 2 mA maximum |
| Point Isolation | 1,500 VDC minimum |
| Field Termination Fuse | 2.5 A fast-acting, one per output |
| Module Indicators | PASS / FAULT / ACTIVE |
| Point Indicators | Individual ON/OFF status |
| Field Alarm | LOAD/FUSE |
| Color Code | Dark blue |
| Diagnostic Toggle Rate | Every 100 ms plus one scan |
| Diagnostic Glitch Duration | 2 ms maximum; 500 μs typical |
| Inductive Protection | Reverse diode on I/O module |
These values are consistent with Tricon planning and installation documentation for the 3604E.
The output architecture is particularly important: 16 non-commoned channels means the individual field circuits are not tied together through a common output terminal arrangement. Point isolation is specified at a minimum of 1,500 VDC.
Application Scenarios & Pain Points
A bad digital output in a safety system can be more difficult to diagnose than a simple PLC I/O failure. The module may report a load or fuse condition while the real problem sits downstream in a solenoid coil, termination panel, or field cable.
- Emergency shutdown systems: 3604E provides discrete output commands to field devices involved in protective process actions.
- Solenoid and relay control: The 24 VDC outputs can drive compatible field loads, subject to the specified 2 A maximum per point and the actual load characteristics.
- Process safety systems: Its TMR architecture forms part of the fault-tolerant output path used by Tricon safety systems. Tricon documentation identifies the 3604E as a TMR digital output module.
- Legacy Tricon maintenance: It remains relevant where plants continue operating Tricon v9–v11 installations and need stocked I/O spares.
Field note: If one channel reports a LOAD/FUSE alarm, do not immediately condemn the 3604E. Check the field termination fuse, cable resistance, solenoid coil, and termination hardware first. A shorted coil can make a good output card look bad.

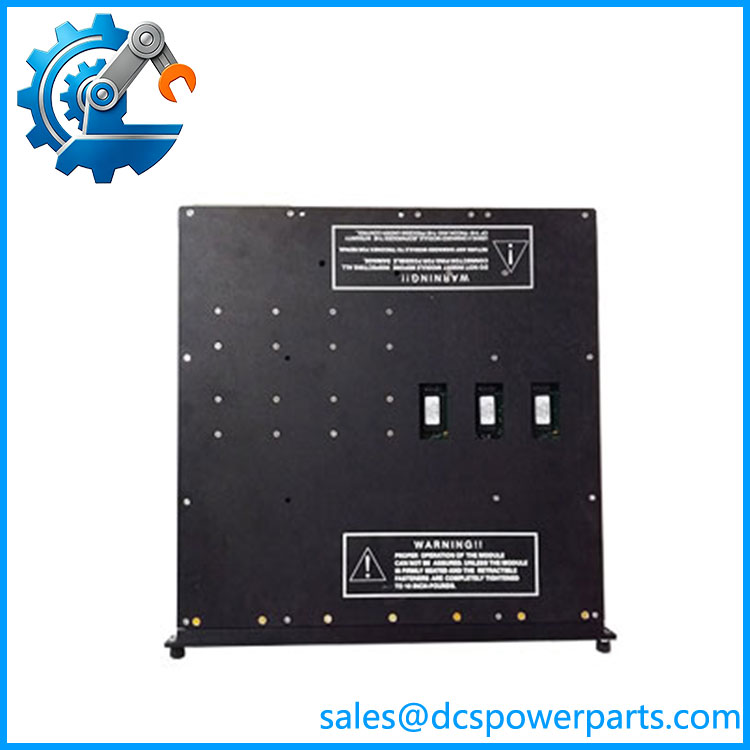

3604E
Related Products
- TRICONEX 3603E — TMR digital output module for higher-voltage DC applications. It is a different electrical variant and should not be substituted for 3604E simply because both are 16-point TMR DO modules.
- TRICONEX 3607E — TMR digital output module designed for 48 VDC applications. The voltage class differs from the 24 VDC 3604E.
- TRICONEX 3601E — TMR digital output module for 115 VAC applications. Useful for AC field loads, not a replacement for 3604E’s DC output architecture.
- TRICONEX 3625 — 24 VDC digital output family used in Tricon systems, with different module characteristics and application requirements.
- TRICONEX 3624 — 24 VDC supervised digital output module. Supervised output applications differ from the standard 3604E arrangement.
- TRICONEX 3664 — 24 VDC digital output module in the Tricon I/O family. Its configuration differs from the 16-point 3604E.
- TRICONEX 3503E — 24 VDC digital input module. It performs the opposite signal direction, receiving discrete field information rather than driving field loads.
- TRICONEX 3504E — 24/48 VDC digital input module for field status acquisition. It complements output modules such as 3604E in complete safety I/O architectures.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not substitute by “24 VDC + 16 channels” alone.
Several Tricon modules share similar channel counts and voltage classes but have different electrical characteristics.
How to avoid it: Match the exact 3604E designation, output configuration, termination hardware, and system generation.
⚠️ Check the field termination before replacing the module.
The 3604E uses one fast-acting fuse per output at the field termination. The module also provides LOAD/FUSE diagnostic indication.
How to avoid it: Inspect the fuse, field wiring, solenoid, relay coil, and termination panel before declaring the I/O module defective.
⚠️ Do not exceed the output current rating.
The maximum is 2 A per point, with a specified 10 A surge for 10 ms. Inductive loads also require attention despite the module’s reverse-EMF protection.
How to avoid it: Measure the actual load current and check the inrush characteristics of solenoids, relays, and other inductive devices.
Frequently Asked Questions (FAQ)
What is the TRICONEX 3604E used for?
The 3604E is a 24 VDC TMR digital output module for Tricon safety systems. It provides 16 non-commoned discrete outputs to field devices.
How many output channels does the 3604E have?
It provides 16 non-commoned digital output points. Each point has individual ON/OFF status indication.
What voltage does the 3604E support?
The nominal field voltage is 24 VDC, with a specified operating range of 22–45 VDC.
What is the maximum current per 3604E output?
The maximum continuous output rating is 2 A per point, with a specified 10 A surge for 10 ms.
Is the TRICONEX 3604E a TMR module?
Yes. The 3604E is specifically identified as a TMR Digital Output Module. The Tricon architecture uses redundant processing and diagnostic mechanisms to detect faults in the safety I/O path.
Can I replace a 3604E with another Tricon digital output module?
Not automatically. The output voltage, commoning arrangement, current capability, field termination, and system configuration all matter. For example, 3607E is a 48 VDC variant, while 3601E is intended for 115 VAC applications.
What should I verify when purchasing a replacement 3604E?
For a plant spare, verify:
- Model: 3604E
- Tricon system generation
- 24 VDC field supply
- 16-point non-commoned configuration
- Field termination module
- Termination cable and connector condition
- Fuse arrangement
- Hardware revision
- PASS/FAULT/ACTIVE diagnostics
- Functional test documentation
