Triconex 3311S2 High-Resolution Digital Input Module
Product Overview
The Triconex 3311S2 is a 32-point high-resolution digital input module for the Tri-GP General Purpose control system. Its primary role is acquisition of 24 VDC discrete field signals where ordinary digital-input response is not sufficient. The published Tri-GP documentation identifies the module as a 32-point, commoned-input HRDI module with a nominal 24 VDC input and an operating range of 19.2–30 VDC.
The major difference between the Triconex 3311S2 and the standard 3301S2 is input speed and event recording. The 3311S2 has a 0.13 ms input time constant and approximately 1.2 kHz −3 dB bandwidth, compared with 2.86 ms and 55 Hz for the 3301S2. The technical guide also specifically states that the 3311S2 reports Sequence of Events (SOE) with resolution and accuracy of one millisecond or less.
From a system perspective, the 3311S2 belongs to the Tri-GP TMR I/O architecture rather than functioning as a conventional standalone PLC input card. The module uses 32 commoned field inputs and includes diagnostic processing. The standard digital-input installation uses the 2301S2 baseplate; the 3311S2 can also be paired with the 2302S2-F high-voltage baseplate for the documented high-voltage TriPak configuration.
Product Introduction
Fast discrete events are where the 3311S2 earns its place. A 0.13 ms input time constant and approximately 1.2 kHz input bandwidth make it substantially faster than the standard 3301S2, while the SOE function provides millisecond-level event timing for sequence reconstruction and troubleshooting.
For a legacy replacement, do not substitute a 3301S2 merely because both modules have 32 inputs and operate from 24 VDC. The 3301S2 is the standard DI module; the 3311S2 is specifically the high-resolution version. If the application relies on fast transitions or SOE records, that difference is functional, not cosmetic.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3311S2 |
| Manufacturer / Brand | Triconex / Invensys |
| Product Series | Tri-GP |
| Product Type | High-Resolution Digital Input Module |
| Architecture | TMR |
| Number of Points | 32 |
| Point Configuration | Commoned |
| Nominal Input Voltage | 24 VDC |
| Operational Voltage Range | 19.2–30 VDC |
| Absolute Maximum Input Voltage | 33 VDC |
| Absolute Maximum Reverse Input Voltage | −0.6 VDC |
| Input Time Constant | 0.13 ms |
| Input Bandwidth | −3 dB at approximately 1.2 kHz |
| Input Impedance | >30 kΩ without baseplate; approximately 3 kΩ with baseplate |
| Input Power | 0.2 W/point at 24 VDC; 0.5 W/point at 33 VDC |
| Input Threshold — Off | 0–5 VDC |
| Input Threshold — Transition | 6–14 VDC |
| Input Threshold — On | 15–30 VDC |
| Diagnostic | Force-to-Value Diagnostic (FVD) |
| SOE | Supported |
| SOE Resolution | ≤1 ms |
| SOE Accuracy | ≤1 ms |
| Standard Baseplate | 2301S2 |
| High-Voltage Baseplate | 2302S2-F |
| Logic Power | 3 W maximum |
| Primary Field Power | 7 W maximum |
The input electrical specifications and power figures are taken from the Tri-GP v3 technical guide.
Major Features / Practical Advantages
32-point high-resolution digital input
The 3311S2 provides 32 commoned digital input points. The 24 VDC interface covers the normal industrial discrete-input range, with a specified operational range of 19.2–30 VDC and an absolute maximum input voltage of 33 VDC.
The term commoned is important. The 32 field points should not be marketed as 32 individually isolated inputs. If galvanic isolation between field circuits is required, the complete termination and external-interface arrangement needs to be examined.

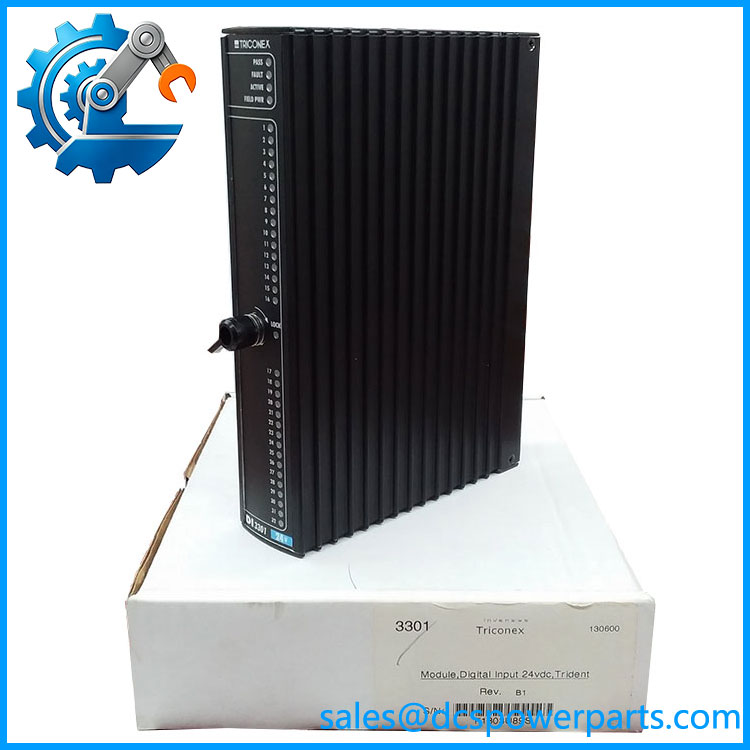

3311S2
High-speed input response
The strongest technical reason to specify a 3311S2 rather than a 3301S2 is its input response. The 3311S2 has a 0.13 ms time constant and approximately 1.2 kHz −3 dB bandwidth. The standard 3301S2 uses a 2.86 ms time constant and approximately 55 Hz bandwidth.
That is a substantial difference for short-duration events. Applications involving high-speed machinery status, trip sequencing, interlocks, or event reconstruction can require this higher temporal resolution.
Sequence of Events capability
The Tri-GP guide specifically identifies SOE capability for the 3311S2 and states that it reports events with resolution of one millisecond or less and accuracy of one millisecond or less.
For troubleshooting, this is more than a convenience. When several permissives, trips, or machine-status signals change within a narrow time window, millisecond event records can help establish the order in which the signals actually reached the control system.
Force-to-Value Diagnostic
The 3311S2 includes Force-to-Value Diagnostic (FVD), with the published specification giving a diagnostic test duration below 2 ms per test. This provides a mechanism for checking the input signal path rather than relying only on the normal state of the field input.
TMR architecture
The 3311S2 operates within the Tri-GP TMR architecture. Tri-GP uses three isolated, parallel control paths with hardware and software voting mechanisms. Digital inputs are voted before being passed to the application logic.
That architecture is why this module should not be treated as an ordinary 32-channel 24 VDC PLC input card. The controller, I/O baseplate, diagnostics, and application configuration all form part of the intended system.
Hot-spare support
The Tri-GP technical guide states that DI modules support a hot-spare module and that the DI modules are mechanically keyed to prevent improper installation in a configured baseplate.
For maintenance planning, that is useful. It does not, however, mean every installation permits unrestricted live removal. Site procedures and the installed system configuration still control how a replacement is performed.
High-voltage configuration option
The 3311S2 can be used with the 2302S2-F high-voltage digital-input baseplate, forming the documented 5312S2-F Digital Input TriPak, High Resolution, High Voltage. This is a complete field-interface configuration and should not be confused with the standard 2301S2 installation.
Related Products
- 3301S2 — Standard 32-point, 24 VDC Tri-GP digital-input module. It has a slower 2.86 ms input time constant and approximately 55 Hz bandwidth compared with the high-resolution 3311S2.
- 2301S2 — Standard digital-input baseplate for the 3301S2 and 3311S2. It is the normal baseplate for typical DI applications.
- 2302S2-F — High-voltage digital-input baseplate used with the 3311S2 in the 5312S2-F configuration.
- 5311S2 — Digital Input TriPak containing one 3311S2 high-resolution DI module and one 2301S2 baseplate.
- 5312S2-F — High-resolution, high-voltage Digital Input TriPak using the 3311S2 and 2302S2-F.
- 5301S2 — Standard Digital Input TriPak using the 3301S2 and 2301S2. This is the normal alternative when high-speed SOE input performance is not required.
- 3361S2 — Combined analog-input/digital-input module with 16 analog and 16 digital points; it is not a 32-point high-resolution DI substitute.
- 3382S2 — Enhanced Pulse Input module for pulse/frequency acquisition rather than conventional 24 VDC discrete status inputs.
- 3401S2 — 16-point 24 VDC TMR digital-output module. It performs the opposite I/O direction and should not be confused with the 3311S2.
FAQ
Can I replace a 3311S2 with a 3301S2?
Not automatically. Both are 32-point, commoned, 24 VDC digital-input modules, but the 3311S2 is the high-resolution version. Its 0.13 ms input time constant and approximately 1.2 kHz bandwidth are substantially faster than the 3301S2’s 2.86 ms and approximately 55 Hz. If the application uses fast-event capture or SOE, the difference is significant.
Can I hot-swap this module?
The Tri-GP documentation states that DI modules support a hot-spare module and are mechanically keyed. That supports an online-maintenance strategy, but it should not be interpreted as blanket authorization to remove the module from every energized installation. Follow the approved maintenance procedure for the specific Tri-GP system.
What is the main difference between the 3311S2 and 3301S2?
Input speed and SOE capability. Both have 32 commoned 24 VDC inputs, but the 3311S2 is the high-resolution DI module. Its specified input response is 0.13 ms with approximately 1.2 kHz bandwidth, compared with 2.86 ms and approximately 55 Hz for the 3301S2.
Does the 3311S2 support Sequence of Events?
Yes. The Tri-GP documentation specifically states that the 3311S2 reports SOE with resolution of one millisecond or less and accuracy of one millisecond or less. This is one of the primary reasons to use the HRDI module.
Does the 3311S2 have individually isolated inputs?
No. The specification identifies the inputs as 32 commoned. Do not confuse the TMR architecture’s isolated electronic channels with individual galvanic isolation of each field input.
What voltage does the 3311S2 accept?
The nominal input voltage is 24 VDC, with an operational range of 19.2–30 VDC and an absolute maximum input voltage of 33 VDC. The specified input thresholds are 0–5 VDC for Off, 6–14 VDC for the transition region, and 15–30 VDC for On.
Does this support firmware v3.1?
The 3311S2 model number does not establish a specific firmware revision. Firmware compatibility should be checked against the installed Tri-GP controller/system configuration and approved application database rather than inferred from the I/O module part number.
Can the 3311S2 be used for high-voltage digital inputs?
The 3311S2 is used in the documented 5312S2-F high-resolution, high-voltage TriPak with the 2302S2-F high-voltage DI baseplate. Do not assume that a standard 3311S2/2301S2 assembly has the same field interface as the high-voltage configuration.
What is the maximum input frequency?
The published specification gives an input bandwidth of approximately 1.2 kHz at −3 dB, rather than defining the module simply as a frequency counter. It should therefore not be marketed as a pulse-input module; the Tri-GP family has the separate 3382S2 Enhanced Pulse Input module for pulse/frequency applications.
Procurement Note
For a Triconex 3311S2 replacement, verify the application requirement for high-resolution digital acquisition before accepting a standard 3301S2 as an alternative. The two modules share the same 32-point, 24 VDC basic field interface, but their input dynamics are materially different. The 3311S2 is specifically documented for high-resolution operation and SOE.
The normal installation uses the 2301S2 digital-input baseplate. If the existing system uses the high-voltage 2302S2-F, that must be matched as part of the assembly. The corresponding TriPak configurations are 5311S2 for standard high-resolution DI and 5312S2-F for high-resolution high-voltage DI.
For legacy spare procurement, verify the complete module marking, baseplate, keying, connector condition, and physical board condition. Request evidence of actual hardware condition rather than relying on a catalog photograph. Also distinguish new surplus from refurbished or previously installed stock and confirm whether functional testing was performed.
One final point: lifecycle documentation identifies the 3311S2 as an “ASSY MOD HRDI 24VDC 32PT TMR”, which aligns with the Tri-GP technical guide’s 32-point high-resolution digital-input specification.
