Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3008N |
| Manufacturer | TRICONEX / Schneider Electric |
| Product Series | Tricon V10 Safety System |
| Product Type | Main Processor Module |
| Functional Role | Safety logic execution and system diagnostics |
| Architecture | Triple Modular Redundancy (TMR) |
| Processor | Motorola MPC860 32-bit processor |
| Processor Frequency | 50 MHz |
| Memory | 16 MB DRAM |
| SRAM | 32 KB battery-backed SRAM |
| Flash Memory | 6 MB Flash PROM |
| Internal Communication | TriBus |
| TriBus Speed | 25 Mbps |
| Installation Position | Tricon Main Chassis processor slots |
| Software Platform | TriStation engineering environment |
| Application | SIS, ESD, Fire & Gas, critical process protection |
Application Scenarios & Pain Points
A safety controller outage is not treated like a normal PLC fault. In a refinery, chemical plant, or offshore platform, losing confidence in the shutdown system can delay production restart and trigger extensive verification work.
Typical applications:
- Oil & Gas Emergency Shutdown Systems: Used as the processing core for ESD logic, shutdown sequences, and protective interlocks where continued availability is required.
- Petrochemical Process Protection: Handles safety logic execution for reactors, compressors, furnaces, and hazardous process units.
- Power Generation Safety Systems: Supports critical protective functions around turbines, auxiliary systems, and plant process equipment.
- Fire & Gas Systems: Works with Tricon safety I/O modules to process alarm inputs and initiate protective actions.
Field note: A chemical facility experienced a processor diagnostic alarm during scheduled maintenance. The replacement 3008N was installed after verifying the TriStation project version and processor firmware. The system returned to service without changing the application logic.

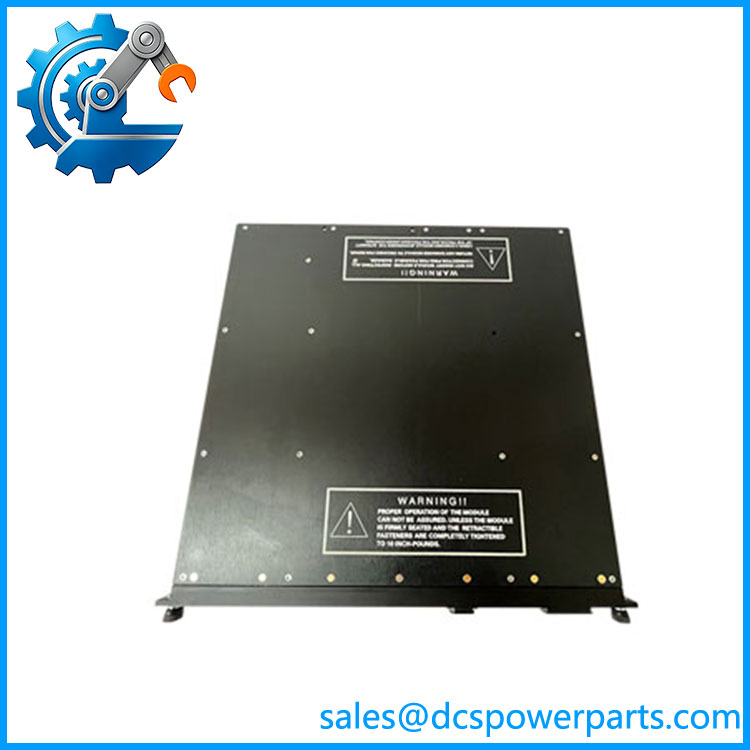

3008N
Related Products
- TRICONEX 3008 — Earlier Tricon main processor module family. Similar processor role, but firmware and system generation compatibility must be confirmed before replacement.
- TRICONEX 3009 — Main processor module used in related Tricon architectures. Physical similarity does not guarantee direct interchangeability.
- TRICONEX 4351A — Tricon Communication Module used for Ethernet and serial communication functions. It supports external communication but does not replace the safety processor function.
- TRICONEX 4352A — Enhanced communication module option for Tricon systems requiring additional network interfaces.
- TRICONEX 8110 — Main chassis assembly used to house Tricon modules, including processor and I/O modules.
- TRICONEX 8310 — 120 VAC/VDC power module supporting Tricon chassis power requirements.
- TRICONEX 8311 — 24 VDC power module option for Tricon chassis installations.
- TRICONEX 3721N — Analog input module used with Tricon processors for safety analog measurements such as process transmitters.
- TRICONEX 3503EN — Digital input module for safety-related discrete signals. Used with the 3008N processor within complete Tricon architectures.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Firmware and TriStation Version Mismatch
A replacement processor may physically install but fail to synchronize with the running system if firmware compatibility is incorrect.
How to avoid: Record the existing MP firmware revision and TriStation project version before replacement.
⚠️ Incorrect Processor Pairing
Tricon systems use redundant processor arrangements. Mixing incompatible processor versions can prevent the chassis from reaching a healthy state.
How to avoid: Check both processor slots, module labels, and revision history before inserting a spare.
⚠️ Battery and Memory Condition Overlook
The processor contains battery-backed memory used for retained information.
How to avoid: Inspect battery status indicators and verify application backup files before removing the original module.
Frequently Asked Questions (FAQ)
What is the TRICONEX 3008N used for?
The TRICONEX 3008N is a Tricon V10 Main Processor Module responsible for executing safety application programs, performing diagnostics, and managing the TMR processing architecture.
Is the TRICONEX 3008N a PLC CPU?
It performs a similar role to a PLC CPU, but it is designed specifically for safety instrumented systems. Its TMR architecture provides independent processor paths with voting mechanisms for safety applications.
How does the 3008N achieve fault tolerance?
The module operates as part of a TMR architecture. Three independent processor legs execute safety functions and use voting methods to maintain operation if one processing path develops a fault.
Can a TRICONEX 3008N replace a 3008 module directly?
Not always. Before replacement, verify:
- Processor model
- Firmware revision
- TriStation compatibility
- Chassis generation
- Existing processor configuration
A similar label does not always mean full compatibility.
What are common failure symptoms of a 3008N?
Typical symptoms include:
- Processor fault alarms
- Loss of processor synchronization
- Communication errors with I/O modules
- Diagnostic failures
- Failure to enter RUN mode
Does the 3008N require programming after installation?
The processor requires the correct safety application project and compatible engineering configuration. A hardware replacement alone does not restore the application.
Is a refurbished TRICONEX 3008N suitable for SIS service?
A tested refurbished unit can be suitable when processor diagnostics, memory operation, firmware compatibility, communication functions, and compatibility with the installed Tricon chassis are verified before returning the SIS to operation.
