Description
TRICON 3503EC1 | 32-Point TMR Digital Input Module | Tricon Safety System
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | TRICONEX / Invensys |
| Model | 3503EC1 |
| Base Model | 3503E |
| Product Type | TMR Digital Input Module |
| Number of Inputs | 32 |
| Input Arrangement | Commoned in groups of 8 |
| Nominal Input Voltage | 24 VAC/VDC |
| Recommended Input Range | 20–42.5 VDC |
| Maximum Voltage | 42.5 VAC/VDC |
| Input Frequency | DC or 47–63 Hz |
| Off-to-On Switching Level | 15 VAC/VDC typical; 18 VAC/VDC worst case |
| On-to-Off Switching Level | 8 VAC/VDC typical; 6 VAC/VDC worst case |
| Typical Hysteresis | 4 VAC/VDC |
| Nominal Turn-On Current | 6–9 mA |
| Input Impedance | >1.25 kΩ nominal |
| Input Delay, Off-to-On | <8 ms |
| Input Delay, On-to-Off | <15 ms |
| Point Isolation | 1,000 VAC minimum / 1,500 VDC minimum |
| Module Status | PASS / FAULT / ACTIVE |
| Point Indicators | One status indicator per input |
| Logic Power | <10 W |
| Diagnostic Feature | Stuck-ON self-test |
The Tricon planning documentation identifies the 3503E as a 32-point TMR digital input module for nominal 24 VAC/VDC signals. The inputs are commoned in groups of eight, and each point uses optical isolation. The specified recommended DC input range is 20–42.5 VDC, with a 42.5 VAC/VDC maximum.
Product Introduction
The TRICON 3503EC1 is associated with the 3503E TMR Digital Input Module, a 32-point discrete input module used in Tricon safety instrumented systems. It receives binary signals from field devices such as switches, contacts, interlocks, and other discrete status sources and processes those signals through the Tricon architecture for safety control and monitoring. The 3503E uses three independent processing paths and includes diagnostic capability for detecting certain input-circuit faults.
The TRICONEX 3503EC1 is intended for installations where 24 VAC/VDC-class field signals must be brought into a Tricon controller. Its 32-input density makes it suitable for ESD, shutdown, permissive, interlock, and equipment-status applications. For procurement, the complete module designation, hardware revision, Tricon system version, termination arrangement, and existing field-voltage configuration should be recorded rather than treating “3503E” as sufficient identification.

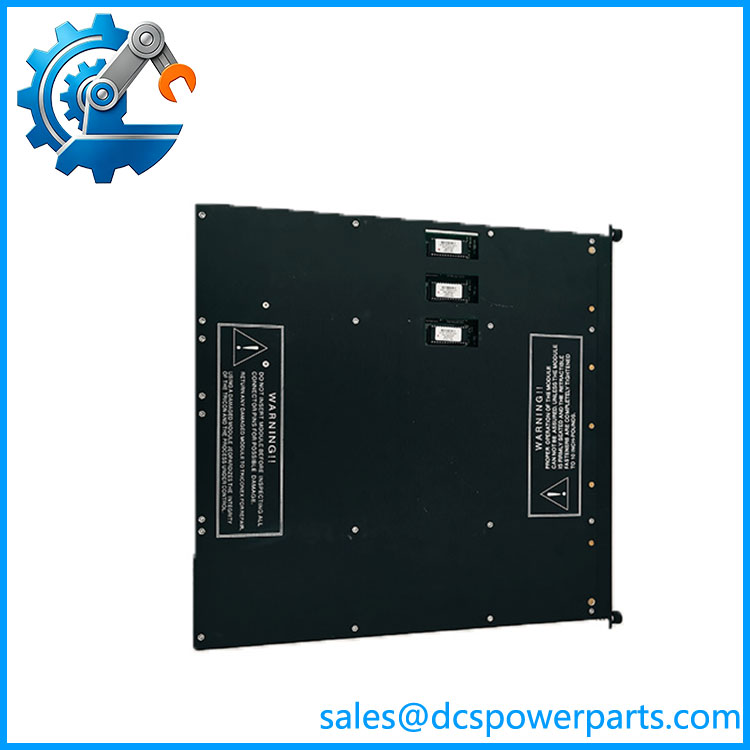

3503EC1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A digital input card in a safety system cannot be evaluated only by channel count. The field voltage, commoning arrangement, diagnostic behavior, termination hardware, and Tricon controller generation all affect whether a replacement is actually suitable. A module that physically fits the chassis can still be wrong for the installed field circuit.
Typical Applications
Emergency Shutdown Systems
The 3503E can acquire discrete signals associated with shutdown initiators, permissives, trips, and equipment status within Tricon safety architectures.
Process Interlocks
Typical signals include limit switches, pressure-switch contacts, equipment permissives, and other binary process conditions.
Fire and Gas Interfaces
Where the field system provides compatible 24 VAC/VDC discrete signals, the module can be part of the input path for safety-related status information.
Rotating Equipment Protection
Discrete trip or status contacts from pumps, compressors, turbines, and auxiliary equipment can be brought into the Tricon system through appropriate input termination arrangements.
Technical Pitfalls
- 3503EC1 should not be confused with an analog input module.
The underlying 3503E is a digital input-only module with 32 discrete input points. A secondary web listing incorrectly describes 3503E as a 16-channel analog input module; that description conflicts with the Tricon system documentation. - Verify the actual field voltage.
The 3503E is intended for nominal 24 VAC/VDC applications, with a recommended DC range of 20–42.5 VDC and a maximum of 42.5 VAC/VDC. It should not be substituted into a 48 V or 115 V input circuit simply because the connector and chassis position appear similar. - Do not confuse 3503E with 3502E.
Both are 32-point TMR digital input modules, but 3502E is the 48 VAC/VDC class, whereas 3503E is the 24 VAC/VDC class. The field-voltage difference is significant. - Check 3505E for intrinsic-safety applications.
Tricon documentation specifically cautions that the 3503E is not recommended for use with shunt-diode intrinsic-safety barriers and recommends 3505E for those applications. - Understand the commoning arrangement.
The 32 input points are commoned in groups of eight. This matters when checking field wiring and isolation requirements; the module should not be treated as 32 completely independent isolated circuits. - The diagnostic test can create a temporary diagnostic condition.
The documented stuck-ON diagnostic can force a test condition on the input circuitry. The installation documentation warns that a diagnostic glitch can become noticeable on an adjacent de-energized point and may falsely energize a paralleled input on another piece of equipment. Field wiring should therefore be reviewed before commissioning. - Confirm the exact suffix and label.
“3503EC1” is commonly used by inventory suppliers for the 3503E module. For a controlled replacement, record the complete label, hardware revision, serial number, and any associated termination panel/cable information.
Related Products
- TRICONEX 3502E — 32-point TMR digital input module for the higher 48 VAC/VDC input class; not a direct 3503E electrical substitute.
- TRICONEX 3505E — 32-point 24 VDC TMR digital input module with low-threshold characteristics; preferred for specified shunt-diode intrinsic-safety barrier applications.
- TRICONEX 3504E — 64-point high-density 24/48 VDC TMR digital input module.
- TRICONEX 3501E/T — 32-point 115 VAC/VDC TMR digital input module.
- TRICONEX 3564 — 64-point single, commoned digital input module for compatible Tricon configurations.
- TRICONEX 8110 — Tricon chassis hardware providing the physical platform for compatible modules.
- TRICONEX 8111 — Related Tricon chassis configuration; verify system generation and slot arrangement.
- TRICONEX 3604E — Related Tricon digital I/O hardware; function and electrical characteristics differ from 3503E.
- TRICONEX 3008 — Tricon Main Processor module; fundamentally different from the 3503E input module.
Procurement Note
For inventory and replacement records, use:
TRICONEX 3503EC1 / 3503E — 32-Point TMR Digital Input Module — 24 VAC/VDC
Before ordering, verify the complete module label, hardware revision, Tricon version, field input voltage, termination panel/cable, chassis slot, and application configuration.
For used or surplus inventory, inspect the connector and housing for mechanical damage, check the front-panel PASS/FAULT/ACTIVE indicators, and test the input channels with the correct 24 VAC/VDC signal range. A power-up test alone is insufficient because it does not demonstrate correct channel sensing or diagnostic behavior.
Engineering classification: TRICON 3503EC1 = 3503E 32-point TMR digital input module, nominal 24 VAC/VDC, commoned in groups of eight, with stuck-ON self-test.
