Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | TVB6002-1/IMC |
| Part Numbers | 1308-644857-12 / 1381-644857-16 |
| Manufacturer | TEL (Tokyo Electron Limited) |
| Product Type | Equipment Control Interface Module |
| Application | Semiconductor manufacturing equipment |
| Main Function | Equipment subsystem interface and signal processing |
| Signal Types | Analog and digital I/O |
| Communication Method | Internal TEL equipment communication |
| Installation Method | Plug-in PCB module |
| Board Architecture | Industrial control PCB assembly |
| Compatible Equipment | TEL wafer processing platforms |
| Typical Use | Process tool maintenance and replacement |
Application Scenarios & Pain Points
Semiconductor production equipment depends on thousands of coordinated signals. When an interface board begins failing, the symptoms are often inconsistent: valve commands may delay, sensor feedback may disappear, or a chamber sequence may stop during initialization.
Typical applications:
- Wafer Etching Systems: Used for communication between the equipment controller and subsystems managing valves, process hardware, and chamber functions.
- Deposition Equipment: Supports control signal exchange for process modules involving temperature, pressure, and gas delivery systems.
- Wafer Cleaning Platforms: Handles interface functions between controller logic and mechanical or fluid-handling assemblies.
- TEL Tool Refurbishment Projects: Maintains installed production equipment where replacing the entire platform is not practical.
Field note: A fabrication line reported intermittent chamber initialization failures after years of operation. Power rails and software logs appeared normal, but subsystem feedback was unstable. Replacing the TVB6002-1/IMC board and checking the stored machine parameters restored normal equipment startup.

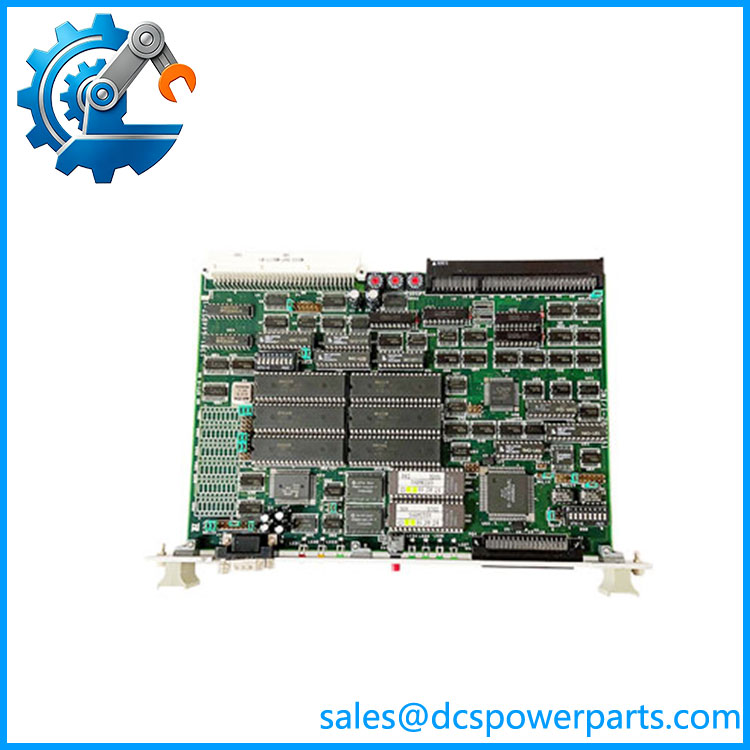

TVB6002-1/IMC 1308-644857-12 1381-644857-16
Related Products
- TEL TVB-1202-1/ANET 1381-647980-12 — Network interface board used for TEL equipment communication functions. Suitable where ANET communication handling is required rather than IMC subsystem interfacing.
- TEL TVB3101-1/ISC 1381-644957-16 — Related TEL interface controller board. Used for different internal communication and control tasks within TEL platforms.
- TEL VME-U10/B 381-641697-5 — Legacy VME-based TEL controller board used in older equipment architectures.
- TEL MBMY-001A — TEL control board assembly used for equipment subsystem management.
- TEL TVB6003 Series Interface Modules — Related interface assemblies for TEL equipment communication and subsystem control.
- TEL Motion Control Modules — Supporting hardware responsible for actuator positioning and mechanical movement control.
- TEL I/O Interface Boards — Auxiliary boards used for sensor acquisition and machine signal processing.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Board Revision and Part Number Confusion
TEL boards often have similar labels but different firmware or hardware revisions. A board with the same family name may not initialize correctly.
How to avoid: Match the complete part number, including both 1308- and 1381- identifiers, and compare PCB revision markings.
⚠️ Connector Damage During Replacement
Semiconductor equipment boards use high-density connectors. A slightly bent pin or contaminated contact can create difficult intermittent faults.
How to avoid: Inspect backplane contacts carefully. Look for oxidation, dust, or mechanical damage before installation.
⚠️ Missing Equipment Configuration Data
Replacing the hardware alone may not restore operation if machine-specific parameters are stored elsewhere.
How to avoid: Save equipment settings and record the original board position before removal.
Frequently Asked Questions (FAQ)
What is the TEL TVB6002-1/IMC 1308-644857-12 1381-644857-16 used for?
The TVB6002-1/IMC is an equipment control interface module used inside TEL semiconductor manufacturing equipment to exchange control signals and feedback information between system controllers and machine hardware.
Is the TVB6002-1/IMC a PLC module?
No. It is a dedicated TEL equipment control PCB designed specifically for semiconductor process tools rather than general-purpose PLC systems.
What functions does the IMC board handle?
The module typically manages interface functions between the main equipment controller and subsystems such as actuators, sensors, and process hardware.
Can the 1308-644857-12 and 1381-644857-16 numbers refer to the same board?
They are associated with the same TVB6002-1/IMC module family, but engineers should confirm the exact installed configuration because TEL equipment may use revision-specific hardware.
What should be checked before replacing this TEL module?
Recommended checks:
- Complete board number
- PCB revision
- TEL equipment model
- Slot position
- Connector condition
- Machine configuration backup
Why does a replacement /IMC fail after installation?
Common causes include:
- Incorrect board revision
- Communication mismatch
- Damaged connector contacts
- Missing machine parameters
- Incorrect installation position
Is a refurbished TEL /IMC suitable for production equipment?
A tested refurbished unit can be suitable when board-level inspection, power verification, interface testing, and equipment compatibility checks are completed before returning the tool to production.
