Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | TVB3101-1/ISC |
| Part Numbers | 1381-644957-16 / 1308-644957-12 |
| Manufacturer | TEL (Tokyo Electron Limited) |
| Product Type | Equipment Monitoring Interface Board |
| Application | Semiconductor manufacturing equipment |
| Main Function | Equipment status acquisition and interface communication |
| System Role | Monitoring and data interface layer |
| Power Supply | Typically 24 VDC from equipment backplane |
| Installation | TEL equipment rack / control chassis |
| Communication | TEL internal equipment communication architecture |
| Signal Handling | Digital and analog equipment status signals |
| Compatible Platforms | TEL process equipment families |
| Typical Equipment | Coater/Developer, Etcher, Cleaner, Thermal Process Systems |
Application Scenarios & Pain Points
Semiconductor tools depend on accurate equipment status information. When a monitoring interface board begins failing, the symptom may appear as a chamber fault, unavailable sensor data, or interrupted automation sequence.
Typical applications:
- Wafer Etching Systems: Used for collecting equipment operating information and transferring subsystem status to the main controller.
- Coater/Developer Platforms: Supports monitoring functions for process modules, mechanical assemblies, and equipment feedback signals.
- Cleaning Equipment: Provides interface support for monitoring sensors and machine operating conditions.
- Legacy TEL Tool Maintenance: Used as a replacement spare when installed production equipment requires continued service.
Field note: A fabrication facility reported intermittent equipment alarms with no clear sensor failure. After checking communication paths, the issue was traced to the ISC monitoring board. Replacement of the TVB3101-1/ISC and verification of the machine configuration restored normal equipment status reporting.

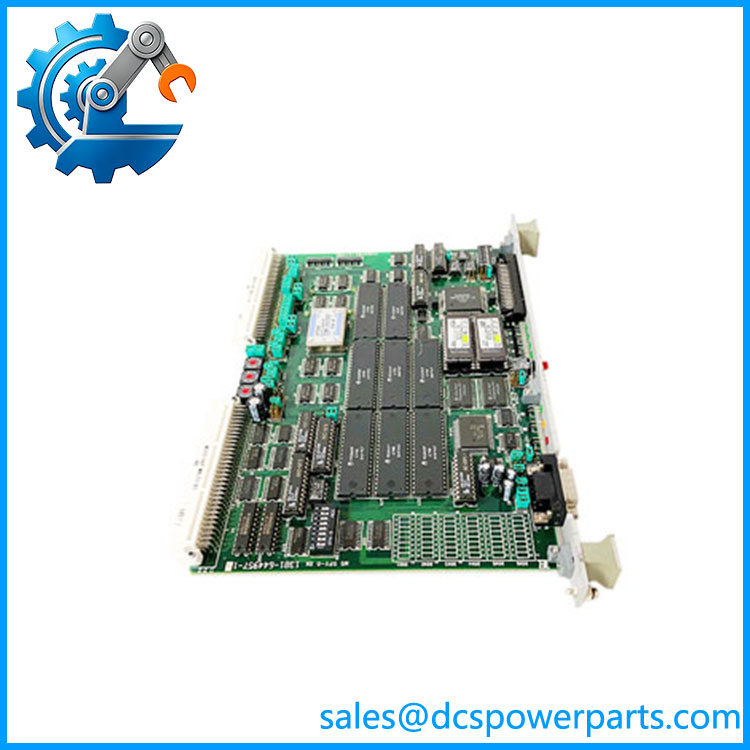

TVB3101-1/ISC 1381-644957-16 1308-644957-12
Related Products
- TEL TVB6002-1/IMC 1308-644857-12 / 1381-644857-16 — Main interface control module used for equipment communication and subsystem coordination. The IMC performs a different role from the ISC monitoring board.
- TEL TVB-1202-1/ANET 1381-647980-12 — Network interface board used for TEL equipment communication functions. Commonly paired within the same equipment control architecture.
- TEL TVB6003-1/EIMC — Expansion communication interface module used when additional equipment communication capacity is required.
- TEL TYB511-1/IOAS — Digital I/O board supporting equipment signal exchange with field devices and subsystems.
- TEL TYB512-1/IOMT — Motor control interface board used for equipment motion-related functions.
- TEL VME-U10/B 381-641697-5 — Legacy VME controller board used in older TEL equipment architectures.
- TEL MBMY-001A — TEL equipment control board used in older semiconductor tool platforms.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing ISC With IMC Functions
The TVB3101-1/ISC is a monitoring/interface board, not the primary equipment controller. Replacing it with an IMC board may create unexpected communication issues.
How to avoid: Verify the original board label, slot position, and equipment documentation before ordering.
⚠️ Board Revision Differences
TEL equipment often uses similar PCB assemblies with different firmware or hardware revisions.
How to avoid: Match the complete identification numbers: TVB3101-1/ISC, 1381-644957-16, and 1308-644957-12.
⚠️ Connector Contamination or Backplane Contact Problems
Small contact issues can create intermittent faults that look like software problems.
How to avoid: Inspect edge connectors and backplane contacts for dust, oxidation, or mechanical damage before installation.
Frequently Asked Questions (FAQ)
What is the TEL TVB3101-1/ISC 1381-644957-16 used for?
The TVB3101-1/ISC is a TEL semiconductor equipment monitoring/interface board used to collect machine status information and communicate with the equipment control system.
Is the /ISC a main controller board?
No. It works as a monitoring and interface module. The main control functions are handled by other TEL controller assemblies such as IMC-related modules.
Are 1381-644957-16 and 1308-644957-12 the same module?
They are associated part numbers for the /ISC board family. Before replacement, confirm the exact installed hardware revision because TEL equipment configurations can vary.
Which TEL systems use the /ISC?
It is used in TEL semiconductor manufacturing equipment, including process platforms such as coaters/developers, etchers, cleaners, and related wafer processing systems.
What should be checked before installing a replacement /ISC?
Recommended checks:
- Complete board number
- PCB revision
- Equipment model
- Rack position
- Connector condition
- Machine configuration backup
Why does a replacement board fail after installation?
Common causes include:
- Wrong hardware revision
- Incorrect slot installation
- Damaged connector contacts
- Missing equipment parameters
- Communication configuration mismatch
Is a refurbished TEL /ISC suitable for production equipment?
A tested refurbished unit can be suitable when board inspection, power verification, communication checks, and compatibility testing with the installed TEL equipment are completed before returning the tool to production.
