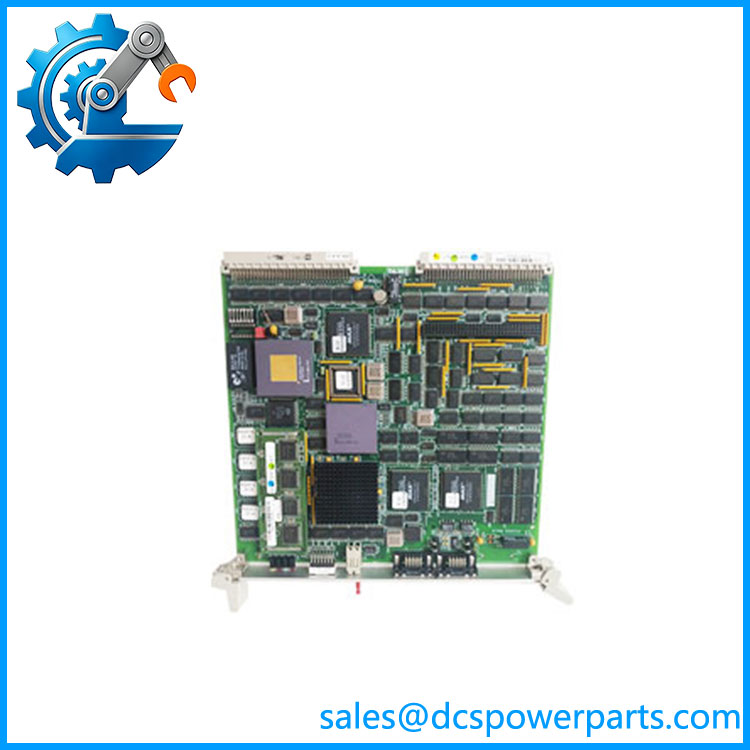

TEAM BG0090 PC0006 | Motor Control Drive Assembly

Description

Key Technical Specifications

Product Introduction

TEAM BG0090 PC0006 Product Introduction

TEAM BG0090 PC0006 is a servo motor drive module designed for industrial automation motion applications. The module converts control commands from a higher-level controller into precise motor movement signals, supporting position, speed, and torque control functions within automated equipment.

The main advantage of TEAM BG0090 PC0006 is its compact servo control architecture for equipment requiring coordinated motion control. It is commonly considered for legacy machine maintenance where the existing drive configuration must be preserved. Verify motor ratings, encoder type, communication settings, and parameter files before installation.

BG0090 PC0006

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A machine can appear mechanically healthy but still remain offline because a servo drive module has failed. This is a common issue in CNC equipment, packaging lines, semiconductor handling systems, and other motion-based machines. Replacing the drive hardware alone does not always restore operation. The motor data, encoder feedback, tuning parameters, and communication settings must match the original setup.

Typical Applications

• Semiconductor Equipment – Precision positioning systems for wafer handling, inspection equipment, and automated stages.
• Packaging Machinery – Servo-controlled indexing systems, filling equipment, labeling machines, and synchronized motion axes.
• CNC and Machine Tools – Motor positioning control for feed axes and automated mechanical movements.
• Factory Automation Systems – Robotic mechanisms, conveyors, and custom production equipment requiring closed-loop motion control.

Technical Pitfalls to Avoid

1. Match Motor and Encoder Specifications
   Confirm the connected motor type, encoder feedback format, and rated current before replacing the module. Incorrect matching can cause drive faults or unstable motion.
2. Restore Original Parameters
   Servo drives rely heavily on stored tuning values. Backup configuration data before replacement whenever possible.
3. Check Communication Settings
   Verify RS232, RS485, CANopen addressing, baud rates, and controller-side communication parameters before commissioning.
