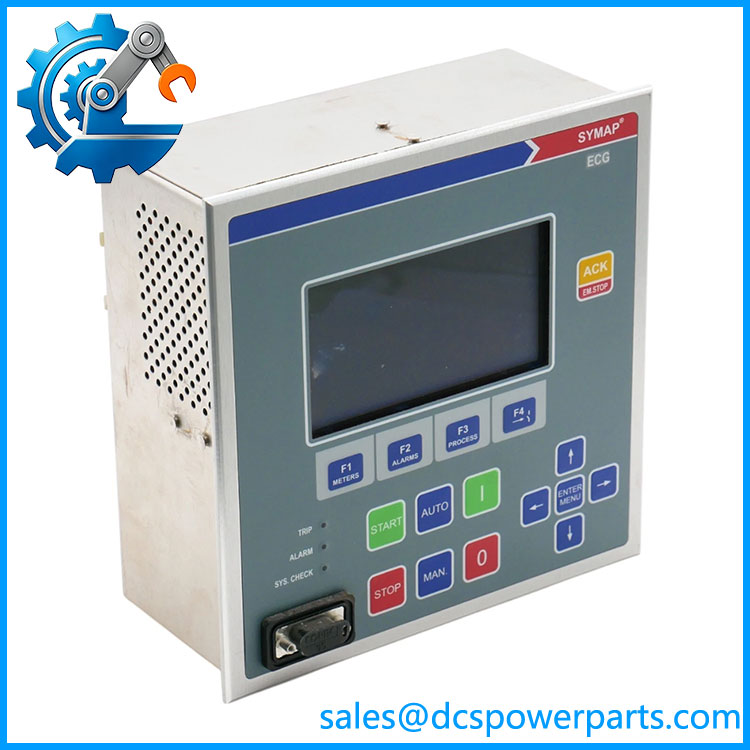

Stucke Elektronik SYMAP-ECG — Engine Control & Generator Protection Relay
Product Introduction
A generator protection relay in a marine or industrial switchboard has to do more than trip a breaker when an electrical limit is exceeded. It may also be involved in engine sequencing, synchronization, load management, frequency control and recovery after a blackout. Stucke SYMAP-ECG was developed for this broader role. It combines generator protection with engine-control functions in a single SYMAP® platform intended for low-voltage power systems.
The SYMAP-ECG uses three microprocessors and provides an HMI for local operation, parameter setting and event information. Its architecture supports CT/PT measurement, programmable inputs and outputs, communication interfaces and power-management functions. In an existing installation, however, the exact firmware, extension boards, control-voltage arrangement and programmed protection functions matter as much as the base model. A replacement should therefore be matched against the original configuration rather than ordered from the model name alone.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SYMAP-ECG |
| Manufacturer | Stucke Elektronik GmbH |
| Product Series | SYMAP® Y |
| Product Type | Engine control and generator protection device |
| Primary Application | Low-voltage generator systems |
| Processing Architecture | Three microprocessors |
| Generator Protection | Integrated |
| Engine Control | Integrated |
| Synchronization | Supported |
| Power Management | Supported for applicable ECG configurations |
| CT Measurement | Generator/feeder current measurement inputs |
| PT Measurement | Generator and bus voltage measurement inputs |
| Analog Inputs | Up to four 4–20 mA inputs in documented connection configurations |
| Digital I/O | Programmable inputs and outputs |
| Communication | CAN1, CAN2 and RS-485/422 shown in documented connection drawings |
| Control Power | Configuration-dependent; documented versions support multiple DC supply ranges |
| HMI | Integrated front-panel HMI |
| PLC Function | Simple programmable logic functions supported |
| Protection Functions | Multiple ANSI/IEEE protection functions depending configuration |
| Mounting / Connection | Rear terminal-plug connection architecture |
The manufacturer describes SYMAP as a digital protection and control device with three microprocessors, integrated protection functions and an HMI. Its current product literature lists ECG specifically as the engine control and generator protection version.
Documented ECG connection drawings show CT inputs, generator and bus voltage inputs, programmable digital I/O, 4–20 mA analog inputs, CAN1/CAN2 and RS-485/422 interfaces. The drawings also show application-specific power-supply arrangements, so the exact control-voltage configuration should be checked against the installed unit.
Application Scenarios & Pain Points
Marine Generator Switchboards
SYMAP-ECG is particularly suited to marine generator systems where engine control and electrical protection have to operate together. Stucke identifies ECG among its SYMAP models for low-voltage applications and includes synchronization and PMS functions within its diesel-automation solutions.
SYMAP-ECG
Industrial Standby and Emergency Generators
The controller can combine generator protection, engine start/stop logic, synchronization and monitoring functions. That can reduce the number of separate control devices in a generator switchboard, provided the installed project configuration supports the required functions.
Generator Synchronization
Synchronization functions allow the controller to supervise electrical conditions before connecting a generator to another source or bus. Voltage and frequency measurements from the PT circuits are therefore critical during commissioning.
Power Management Systems
SYMAP devices can operate as bay-level controllers within a larger power-management or substation system, providing remote supervision, remote control, parameter setting and measured-value acquisition.
Blackout and Load Management
The SYMAP-ECG product literature identifies blackout management, automatic synchronization, frequency control, voltage regulation, load-related functions and programmable logic among the platform capabilities. Actual functionality depends on the configured application and firmware.
Related Products
- SYMAP-EC — Engine-control version; intended for engine automation without the full ECG generator-protection designation.
- SYMAP-G — Generator-protection version within the SYMAP family.
- SYMAP-F — Feeder-protection version.
- SYMAP-M — Motor-protection version.
- SYMAP-T — Transformer-protection version.
- SYMAP-LD — Line-differential protection version.
- SYMAP-DC — DC protection version.
- SYMAP-BCG — Multifunction protection and power-management model, primarily positioned for medium-voltage applications.
- CMA extension boards — SYMAP documentation lists CMA 215, CMA 216, CMA 238 and CMA 216+237 among available extension-board options.
These are related SYMAP products, not automatic replacement parts. The protection philosophy, I/O configuration, firmware and application voltage must be checked before substitution.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not treat SYMAP-ECG as only a protection relay
The ECG version combines generator protection with engine control. A replacement unit may therefore carry application logic that is just as important as the protection settings. Copying protection parameters alone does not necessarily reproduce the original system behavior.
2. Verify the power-supply configuration
Different SYMAP connection drawings show different control-power arrangements, including DC supply configurations. One marine equipment listing reports a 12–36 VDC supply, while Stucke documentation shows configurable supply arrangements in its connection drawings. Do not use a generic voltage figure as the design basis; check the nameplate and original wiring diagram.
3. Check CT and PT wiring before energizing
CT and PT connections are protection circuits, not ordinary analog inputs. Incorrect CT polarity, phase assignment or PT phase mapping can produce incorrect power calculations and protection decisions. Perform secondary-injection and phase-verification testing after replacement.
4. Preserve the programmed logic
SYMAP provides PLC-type logic capability for simple application-specific functions. A replacement with the same hardware model can still behave differently if the application program, parameters or firmware configuration is missing.
5. Confirm communication hardware
CAN and RS-485/422 connections are shown in the SYMAP ECG documentation, but communication configuration depends on the actual application. Confirm baud rate, addressing, protocol and connected PMS/SCADA equipment before commissioning.
6. Check extension-board configuration
CMA extension boards are part of the SYMAP architecture. If the existing controller contains optional hardware, purchasing only the base SYMAP-ECG unit may leave the replacement short of required I/O or interface capability.
7. Do not assume a visually identical unit has identical firmware
For legacy marine and generator-control equipment, firmware and application parameters can be tied to the specific project. Record the original unit’s firmware/configuration data before removal whenever possible.
FAQ
What is the Stucke SYMAP-ECG?
The SYMAP-ECG is a microprocessor-based digital control and protection device from Stucke Elektronik. ECG stands for the SYMAP configuration combining engine control and generator protection. It is primarily associated with low-voltage generator systems, including marine and industrial applications.
Is SYMAP-ECG a generator protection relay or an engine controller?
It is both. The ECG configuration combines generator protection with engine-control functions. The SYMAP platform also supports synchronization, monitoring and power-management functions depending on configuration.
What protection functions can SYMAP-ECG provide?
The SYMAP platform supports a broad range of protection functions, with the actual set dependent on the model and configuration. Documented functions include overcurrent, earth-fault, voltage, frequency, reverse-power, negative-sequence, breaker-failure and other generator-related protection functions.
Can SYMAP-ECG control a diesel generator?
Yes. Engine-control functions include start/stop and related diesel-automation functions. Stucke specifically lists SYMAP-ECG among the models used for diesel automation and power-management applications.
Does SYMAP-ECG support synchronization?
Yes. Synchronization is part of the SYMAP platform functionality, and Stucke identifies synchronization as a feature of its SYMAP BC and Y series.
What communications are available?
Documented SYMAP-ECG connection drawings show CAN1, CAN2 and RS-485/422 interfaces. The actual protocol and interface configuration should be confirmed against the installed controller and system drawings.
What should I verify before buying a replacement SYMAP-ECG?
Match the complete SYMAP-ECG model, hardware revision, firmware/application configuration, extension boards, control-power arrangement, CT/PT wiring, communication configuration and terminal connections. For used or refurbished equipment, verify actual inventory condition and test results rather than relying only on a generic model description.
