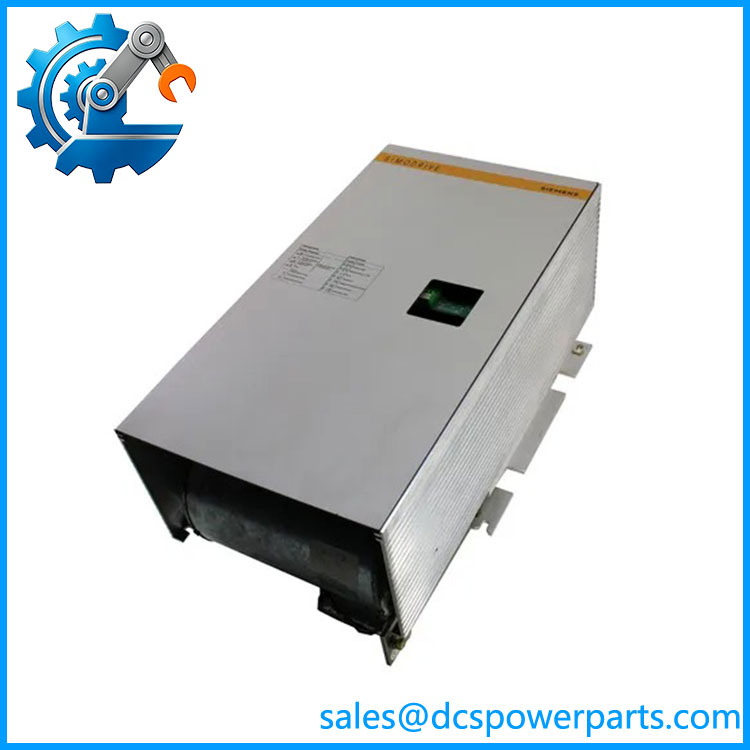

Siemens 6RA2781-6DV57-0AA0 SIMODRIVE Converter Unit
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6RA2781-6DV57-0AA0 |
| Manufacturer | Siemens |
| Product Family | SIMODRIVE 6RA25/26/27 |
| Product Type | Converter unit |
| Version | Enhanced version |
| Field Weakening | Integrated field-weakening control |
| AC Input | 3-phase 380/400 VAC |
| Input Frequency | 50/60 Hz |
| Options | Without options |
| Drive Technology | DC drive / thyristor converter technology |
| Dimensions (W × H × D) | Approx. 400 × 570 × 600 mm |
| Weight | Approx. 27 kg |
| Installation | Industrial drive cabinet |
| Lifecycle | Legacy / discontinued family; verify installed-system support |
The exact Siemens description identifies 6RA2781-6DV57-0AA0 as a SIMODRIVE converter unit with field-weakening control for 3 × 380/400 VAC, 50/60 Hz operation. It belongs to the broader Siemens 6RA25/26/27 converter family.
Product Introduction
The Siemens 6RA2781-6DV57-0AA0 is a high-power SIMODRIVE converter unit intended for industrial DC motor drive systems. Its field-weakening function allows the drive system to operate beyond the base-speed region when the connected motor and drive configuration are designed for that operating mode. This makes the unit part of the complete DC drive power architecture rather than a standalone control board.
This unit belongs to an older Siemens drive generation, and replacement work requires more than matching the Siemens MLFB number. The connected DC motor, armature circuit, field circuit, control electronics, feedback arrangement, braking hardware, and existing parameter configuration all need to be checked. Current replacement availability is primarily a service and legacy-equipment issue, with repair and exchange services still listed for this exact model.
6RA2781-6DV57-0AA0
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A 6RA2781 converter failure can easily be misdiagnosed as a motor or field-supply problem. In a DC drive system, armature current, field current, motor feedback, firing control, and protection circuits interact closely. Before changing the converter, maintenance should determine whether the fault originates in the power converter, field circuit, motor, feedback device, firing-control section, or external control wiring.
Typical Applications
- Industrial DC motor drives — controlled DC power for variable-speed motor applications.
- Machine-tool drive systems — suitable for legacy machinery using Siemens SIMODRIVE/6RA architecture.
- Production machinery with field-weakening operation — where the DC motor requires controlled field reduction above base speed.
- Legacy Siemens drive cabinets — replacement or repair of installed 6RA25/26/27 equipment.
Technical Pitfalls to Avoid
- Do not treat it as a generic AC drive.
This is a Siemens SIMODRIVE converter for DC-drive applications. A modern AC variable-frequency drive is not automatically an electrical replacement. - Verify the motor data before replacement.
Armature voltage, armature current, field voltage, field current, motor rated speed, maximum speed, and feedback type must agree with the drive configuration. - Check the field circuit separately.
The 6DV57 designation identifies the field-weakening version, so field-circuit wiring and field-control requirements are important during commissioning. - Do not ignore the external control electronics.
A power converter can be healthy while the drive remains inhibited because of a missing enable signal, feedback fault, interlock, or controller problem. - Verify the exact MLFB.
Nearby 6RA27 models can have substantially different electrical characteristics. The suffix -0AA0 should be retained when specifying the replacement. - Inspect aging power components.
On equipment of this generation, cooling, thyristor condition, capacitors, contactors, fuses, wiring insulation, and cabinet ventilation deserve inspection before returning the drive to service.
Related Products
- Siemens 6RA2775-6DV57-0AA0 — SIMODRIVE converter from the same 6RA27 family; electrical ratings differ and must be checked before substitution.
- Siemens 6RA2777-6DV57-0AA0 — another 6RA27 converter with field-weakening functionality; not an automatic replacement.
- Siemens 6RA2785-6DV57-0AA0 — higher-numbered 6RA27 converter variant; verify motor and current ratings before considering interchangeability.
- Siemens 6RA2781-6DV57-7AA1 — related 6RA2781 configuration with a different suffix; the changed ordering code requires configuration verification.
- Siemens 6RA2781-6DV57-ZA22 — special configuration of the same basic 6RA2781 family; do not assume electrical equivalence.
- Siemens 6RA2181-6DV66-0 — older SIMOREG K converter with a different electrical configuration and four-quadrant drive arrangement.
- Siemens 6RA2968-6DV01-0 — SIMODRIVE feed-drive unit from a later/different 6RA29 family, not a direct substitute.
Procurement and Replacement Note
For procurement, identify the unit as:
Siemens 6RA2781-6DV57-0AA0 — SIMODRIVE converter unit — enhanced version with field-weakening control — 3 × 380/400 VAC, 50/60 Hz — without options.
Before approving a replacement, obtain the original nameplate and verify the complete MLFB, motor armature rating, field rating, feedback device, control-unit configuration, cabinet wiring, and field-weakening parameters. The published dimensions of approximately 400 × 570 × 600 mm and weight of 27 kg are useful for cabinet planning, but they should not be used as evidence of electrical interchangeability.
Because the 6RA25/26/27 generation is legacy equipment, a practical replacement assessment should compare the complete drive system—not just the converter part number. Repair or tested exchange of the original unit may also need to be considered where preserving the existing motor and controller configuration is important.
