Siemens 6RA2781-6DV57-0AA0
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6RA2781-6DV57-0AA0 |
| Manufacturer | Siemens |
| Product Family | SIMODRIVE 6RA27 |
| Product Series | 270 |
| Product Type | Converter unit / DC drive converter |
| Input Voltage | 3 × 380/400 VAC |
| Additional Input Rating | 3 × 415 VAC |
| Input Frequency | 50/60 Hz at 380/400 VAC; 50 Hz at 415 VAC |
| Control Function | Field-weakening control |
| Version | Enhanced / comfort version |
| Designation | D380/400 MREQ-GDGF 6V57 |
| Communication Protocol | Not applicable as the primary power-conversion function |
| Installation | Industrial machine/drive cabinet |
| Approx. Dimensions | 400 × 570 × 600 mm |
| Approx. Weight | 27 kg |
| Lifecycle | Legacy / replacement and repair market |
The exact 6RA2781-6DV57-0AA0 is documented as a Siemens SIMODRIVE converter unit with field-weakening control and a 3 × 380/400 VAC, 50/60 Hz input specification; the same product family is documented for 3 × 415 VAC at 50 Hz. Secondary technical records give approximate dimensions of 400 × 570 × 600 mm and a weight of about 27 kg.
Product Introduction
The Siemens 6RA2781-6DV57-0AA0 is a legacy SIMODRIVE power converter unit from the 6RA27 family. Its job is to provide controlled power conversion for DC drive applications, with field-weakening control included in this configuration. The input designation identifies a three-phase 380/400 VAC class supply, with the documented configuration also supporting 415 VAC at 50 Hz.
This is not a small plug-in PLC module. The 6RA2781 is a cabinet-level power-conversion assembly, and its physical size and approximately 27 kg mass reflect that role. The 6DV57 configuration is particularly important because field-weakening control affects how the connected motor operates above its base-speed region.

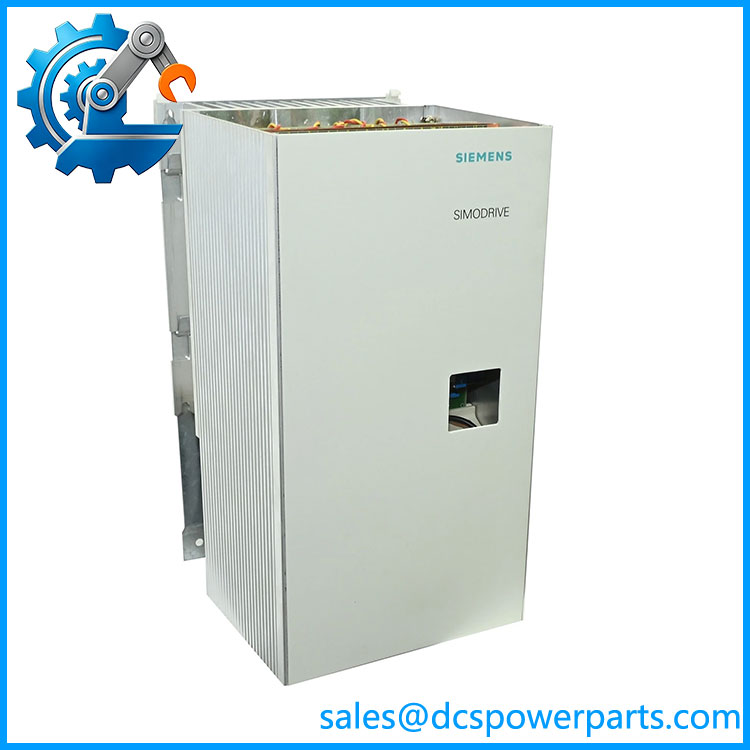

6RA2781‑6DV57‑0AA0
Engineering Pain Point
When a 6RA2781 fails, the temptation is to identify a replacement by the basic 6RA27 family number. That is not sufficient. The 6RA27 family contains multiple converter configurations, and suffixes can define different voltage, power, control, and option arrangements. A visually similar converter can therefore be electrically unsuitable even when its enclosure and connectors appear comparable.
Typical Applications
- CNC machine tools — controlled DC motor drive applications in legacy machining equipment.
- Industrial production machinery — variable-speed DC motor systems requiring field weakening.
- Machine-tool drive cabinets — high-power conversion within older Siemens SIMODRIVE architectures.
- Legacy automation equipment — maintenance and replacement of installed 6RA27-based drive systems.
Technical Pitfalls to Avoid
- Verify the complete part number.
The difference between 6RA2781-6DV57-0, 6RA2781-6DV57-0AA0, 6RA2781-6DV57-7AA1, and other variants should not be dismissed as a cosmetic suffix difference. The 6RA2781 family contains multiple configurations. - Check the incoming supply before installation.
This unit is associated with three-phase 380/400 VAC and 415 VAC configurations. Confirm the actual machine supply, frequency, upstream protection, and cabinet wiring against the original machine documentation. - Do not overlook field-weakening configuration.
The 6DV57 designation identifies a configuration with field-weakening control. Motor parameters, base speed, field circuit, and drive setup must agree with the original machine configuration. - Check the motor and feedback architecture.
Replacing the converter without confirming the connected DC motor, tachogenerator/feedback arrangement, field circuit, and machine control interface can result in a drive that powers up but cannot be commissioned correctly. - Preserve original parameter data.
Before removing a functioning unit, document accessible drive parameters, potentiometer/switch settings, terminal wiring, and machine-specific commissioning values. The converter hardware alone does not reproduce the complete machine setup. - Allow for cabinet thermal conditions.
A unit of this physical class dissipates meaningful heat. Confirm cabinet ventilation, fan operation, clearances, and ambient temperature before commissioning a replacement.
Related Products
- Siemens 6RA2777-6DV57-0AA0 — another SIMODRIVE converter with field-weakening control and the same 380/400 VAC class input; its ratings and configuration should not be assumed identical.
- Siemens 6RA2732-6DV57-0AA0 — related SIMODRIVE converter configuration with field-weakening control; requires application-specific comparison before substitution.
- Siemens 6RA2785-6DV57-0AA0 — same broader 6RA27 converter family and 6DV57 configuration, but different base unit designation.
- Siemens 6RA2781-6DV57-7AA1 — closely related 6RA2781 variant; complete hardware and option coding must be checked before replacement.
- Siemens 6RA2781-6DV57-ZA22 — another documented 6RA2781 configuration with a different option code.
- Siemens 6RA2787-4DV57-0 — related 6RA27 SIMODRIVE converter equipment, but the different base designation indicates that direct substitution requires engineering verification.
- Siemens 6RA2728-6DV57-0AA0 — another field-weakening converter in the SIMODRIVE family.
Procurement Note
For 6RA2781-6DV57-0AA0, the safest purchasing specification is the complete Siemens MLFB, not simply “SIMODRIVE 6RA27.” Confirm the nameplate against the requested 6RA2781-6DV57-0AA0, then match the 380/400 VAC or 415 VAC supply, field-weakening configuration, motor/field ratings, feedback arrangement, cabinet interface, and machine-specific parameters.
There is also an important lifecycle consideration: secondary technical sources classify this equipment as legacy/obsolete or primarily handled through repair and replacement channels, although individual sources disagree on current production status.For a critical CNC machine, I would therefore verify the exact hardware revision and test requirements before accepting a replacement unit.
