Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | SCALANCE X116 |
| Order Number | 6GK5116-0BA00-2AA3 |
| Product Type | Unmanaged Industrial Ethernet switch |
| Ethernet Ports | 16 × RJ45 |
| Data Rate | 10 / 100 Mbps |
| Ethernet Interface | Copper RJ45 |
| Supply Voltage | 24 VDC |
| Supply Range | 18–32 VDC |
| Power Inputs | Redundant voltage supply |
| Signaling Contact | 1 |
| Diagnostics | LED status indication |
| SET Function | Integrated with signaling contact |
| Mounting | 35 mm DIN rail / wall / S7-300 rail |
| Protection Rating | IP30 |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +80°C |
| Dimensions | Approx. 120 × 125 × 124 mm |
| Net Weight | Approx. 1.1 kg |
Siemens documentation specifies 16 electrical RJ45 connections and separate connections for signaling and redundant power. The documented supply is 24 VDC, with an external supply range of 18–32 VDC.
Product Introduction

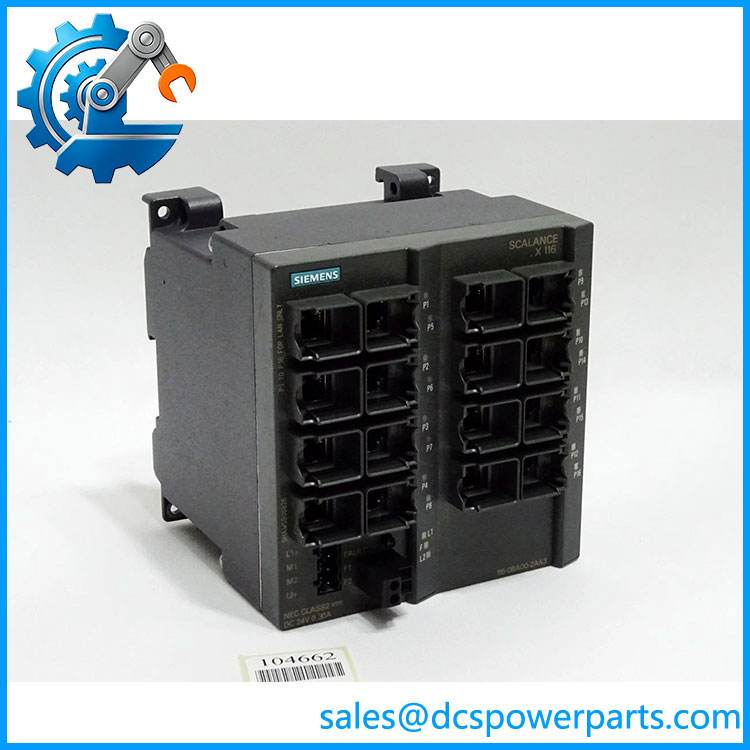

The Siemens 6GK5116-0BA00-2AA3 is a SCALANCE X116 unmanaged Industrial Ethernet switch intended for copper-based automation networks. Its 16 RJ45 ports support 10 and 100 Mbps Ethernet communication, allowing PLCs, operator stations, drives, remote I/O, controllers, and other Ethernet devices to be interconnected without requiring managed-switch configuration.
The important distinction is that this is an unmanaged X116, not a managed SCALANCE switch with configurable VLANs, routing, or network-management functions. The hardware provides basic Ethernet switching plus LED diagnostics, fault signaling, and redundant DC power input. Siemens documentation also lists the X116 within the SCALANCE X-100 operating-instruction family.
6GK5116-0BA00-2AA3
Engineering Pain Point
The usual replacement mistake is comparing only the number of Ethernet ports. A 16-port switch may have the same RJ45 count while using a different power arrangement, management architecture, port speed, temperature rating, or SCALANCE generation. For 6GK5116-0BA00-2AA3, the fact that it is an unmanaged 10/100 Mbps switch with redundant 24 VDC supply is part of the compatibility requirement.
Typical Applications
- PLC and DCS network segmentation where basic Ethernet switching is sufficient.
- Industrial control cabinets connecting multiple copper Ethernet nodes.
- Machine-level Industrial Ethernet networks with 10/100 Mbps equipment.
- Legacy automation networks where maintaining the existing SCALANCE hardware architecture is preferable to changing network behavior.
Technical Pitfalls to Avoid
- Do not confuse X116 with managed SCALANCE variants.
The X116 is specified as an unmanaged switch. Do not assume that a replacement provides VLAN, SNMP, redundancy-manager, or other managed-switch functions simply because it has the SCALANCE name. - Verify the exact MLFB.
6GK5116-0BA00-2AA3 identifies the . Siemens also lists the related X124 as 6GK5124-0BA00-2AA3, so similar numbering does not mean identical hardware. - Check the power wiring.
The unit accepts 24 VDC with an 18–32 VDC range and provides redundant voltage-supply connections. Confirm both supply paths and cabinet protection before replacement. - Do not overlook temperature and enclosure constraints.
The published operating range is -20 to +70°C and protection class is IP30. If the switch is installed in a hot cabinet, verify actual cabinet temperature rather than relying on the ambient plant temperature. - Check the fault-signaling circuit.
If the existing PLC or alarm system monitors the switch’s signaling contact, document its wiring before removal. Replacing the Ethernet switch without reconnecting this circuit can remove a useful network-health indication.
Related Products
- Siemens SCALANCE X108 — 6GK5108-0BA00-2AA3 — 8-port unmanaged Industrial Ethernet switch; fewer copper ports than the .
- Siemens SCALANCE X112-2 — 6GK5112-2BB00-2AA3 — related X-series switch with a different port configuration.
- Siemens SCALANCE X124 — 6GK5124-0BA00-2AA3 — 24-port unmanaged Industrial Ethernet switch for applications requiring more copper ports.
- Siemens SCALANCE X104-2 — 6GK5104-2BB00-2AA3 — smaller-port X-series Industrial Ethernet switch.
- Siemens SCALANCE X106-1 — 6GK5106-1BB00-2AA3 — related X-series Industrial Ethernet switch with a different port arrangement.
- Siemens SCALANCE X202-2IRT — 6GK5202-2BB00-2BA3 — managed Industrial Ethernet variant for applications requiring additional network functions.
Procurement note: Specify the complete Siemens 6GK5116-0BA00-2AA3 / SCALANCE designation. Before substitution, verify the 16-port requirement, 10/100 Mbps copper network, unmanaged operating concept, redundant 24 VDC supply, fault-contact wiring, mounting method, and cabinet temperature. The Siemens MLFB should take precedence over generic descriptions such as “16-port Ethernet switch.”
