Description
Product Overview
The ABB REX521BBHGLB01C is a numerical protection and control relay belonging to ABB’s REX 521 feeder protection platform. It is designed for medium-voltage electrical networks, integrating protection, control, measurement, monitoring, event recording, and configurable logic within a single intelligent protection terminal. The REX 521 family is intended for applications involving feeders and other medium-voltage electrical assets, providing a dedicated protection layer between field CT/VT signals, circuit-breaker control, and higher-level substation automation systems. ABB’s technical documentation confirms that the REX 521 order code identifies the hardware, communication, power-supply, and configuration characteristics of each specific relay.
The REX521BBHGLB01C is a configuration-specific REX 521 variant, so its exact protection functions and I/O arrangement should be verified from the complete ordering code and installed configuration rather than assumed from the family name alone. The REX 521 platform supports configurable protection functions, measurement, control, self-supervision, event information, and communication, making it suitable for integration into switchgear and substation control architectures.
For industrial power distribution, the ABB REX521BBHGLB01C can provide dependable electrical protection while supplying operating and fault information to plant monitoring systems. It is particularly valuable in installations where feeder reliability, selective fault isolation, and rapid troubleshooting are important.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | REX521BBHGLB01C |
| Manufacturer | ABB |
| Product Series | REX 521 |
| Product Type | Numerical Protection and Control Relay |
| Application | Medium-Voltage Feeder / Electrical Network Protection |
| Protection Functions | Configuration-dependent; overcurrent, earth-fault and other feeder functions |
| Measurement | Current/voltage measurement depending on configuration |
| Control | Circuit-breaker and configurable control functions |
| Communication | SPA / IEC communication; configuration-dependent |
| Rear Communication | Optical interface options depend on order configuration |
| Configuration | Application-specific B01 configuration |
| Power Supply | High/low supply option identified by order code; verify nameplate |
| Installation | Switchgear / substation protection panel |
| Operating Temperature | Approx. -25°C to +55°C* |
| Protection Rating | IP20* |
| HMI | Front-panel local user interface |
| Diagnostics | Self-supervision, event and fault information |
*Environmental and electrical values above should be treated as reference values for the REX 521 platform. The exact REX521BBHGLB01C hardware configuration should be checked against ABB documentation and the relay nameplate before engineering or replacement. Third-party listings report -25°C to +55°C and IP20, but some secondary sources contain inconsistent electrical specifications.
Main Features and Advantages
Integrated numerical protection
The REX521BBHGLB01C uses microprocessor-based protection technology to replace multiple conventional electromechanical protection functions with a programmable numerical relay. This provides more consistent protection characteristics and enables protection settings to be adapted to different feeder operating conditions.
Application-specific hardware configuration
The REX 521 ordering structure is significant because the order code identifies hardware type, power-supply option, rear communication interface, optical connector type, and configuration revision. Therefore, REX521BBHGLB01C should be treated as a specific engineered variant rather than simply a generic REX 521 relay.

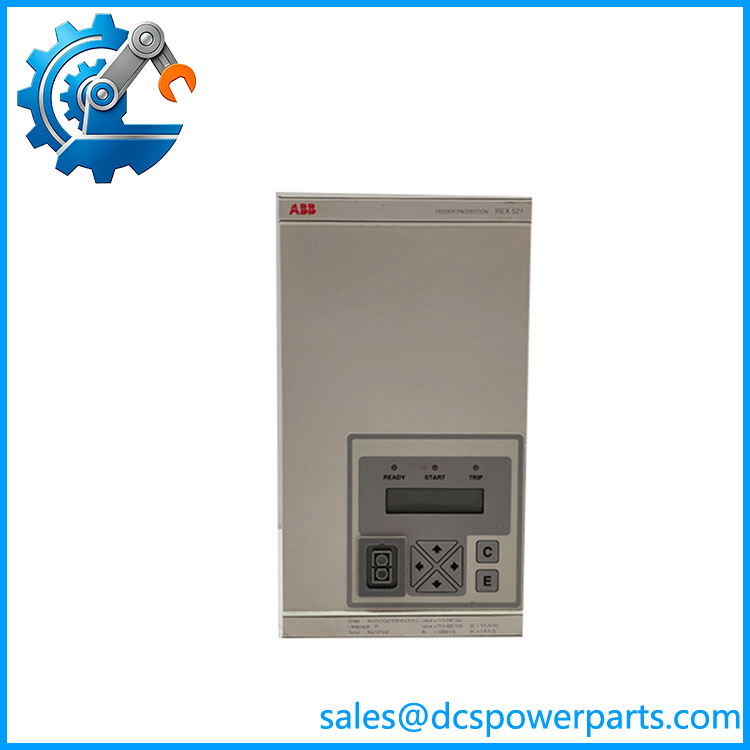

REX521BBHGLB01C
Protection, control and measurement in one device
The platform combines electrical protection with breaker control, measurement, monitoring, configurable logic, and event information. This reduces the need for separate auxiliary devices and provides a more coherent interface between field equipment and the substation automation system.
Self-supervision and diagnostics
Built-in self-supervision helps identify internal relay faults and abnormal operating conditions. Event information and recorded protection data can also assist engineers in analyzing trips and determining whether a fault originated in the protected feeder or elsewhere in the network.
Industrial communication capability
REX 521 documentation identifies SPA and IEC communication options, with different rear communication configurations available according to the ordering code. This allows the relay to exchange protection and operational information with supervisory and substation automation systems.
Legacy-system replacement value
The REX 521 platform is a mature ABB protection technology and remains relevant for maintenance of existing medium-voltage switchgear. Using the correct original configuration can reduce engineering changes when maintaining established protection panels.
Application Fields
The ABB REX521BBHGLB01C is primarily applicable to medium-voltage electrical distribution systems, where it can protect outgoing or incoming feeders and associated switchgear. In utility substations, it can be installed alongside CTs, VTs, circuit breakers, disconnectors, and station automation equipment to provide selective fault detection and breaker-trip control.
In industrial plants, the relay can be used in electrical distribution systems serving motors, transformers, production lines, and auxiliary loads. Oil and gas facilities, chemical plants, steel mills, mining operations, and large manufacturing sites can use numerical feeder protection to reduce the consequences of short circuits and earth faults while maintaining supply to unaffected sections.
For power-generation facilities, the REX 521 platform can be integrated into medium-voltage auxiliary-power networks, switchboards, and plant distribution systems. Its measurement and event information can be made available to SCADA or plant automation systems, allowing operators to review feeder status and protection events.
The relay is also suitable for legacy switchgear modernization projects where an existing ABB protection architecture needs to be maintained. Because the exact REX521BBHGLB01C configuration determines its hardware and software characteristics, replacement engineering should verify CT/VT ratings, auxiliary supply, communication interface, binary I/O, and protection settings before commissioning. ABB’s technical reference specifically states that each REX 521 order number identifies the associated hardware and software configuration.
