Description
The ProSoft Technology RLX2-IFH24E is an industrial wireless Ethernet radio designed for automation applications requiring reliable data communication without physical network cabling. It is part of the RadioLinx RLX2 platform and provides wireless connectivity for PLC systems, remote equipment, and industrial Ethernet networks.
The ProSoft Technology RLX2-IFH24E uses frequency-hopping spread spectrum technology to maintain communication reliability in industrial environments where electrical noise, physical obstacles, or long cable distances create installation challenges. The radio supports point-to-point and point-to-multipoint network configurations for distributed control applications.
The ProSoft Technology RLX2-IFH24E is commonly deployed in manufacturing plants, water treatment facilities, oil and gas installations, and remote equipment monitoring systems. Engineers should evaluate antenna selection, radio positioning, network load, and environmental conditions before installation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | RLX2-IFH24E |
| Manufacturer | ProSoft Technology |
| Product Series | RadioLinx RLX2 |
| Product Type | Industrial Wireless Ethernet Radio |
| Wireless Frequency | 2.4 GHz ISM Band |
| Wireless Technology | Frequency Hopping Spread Spectrum (FHSS) |
| Ethernet Interface | 10/100 Mbps Ethernet |
| Communication Mode | Point-to-point / Point-to-multipoint |
| Ethernet Protocol Support | TCP/IP, UDP/IP, industrial Ethernet traffic |
| Antenna Connector | RP-SMA |
| Configuration Method | Web-based configuration utility |
| Mounting | DIN rail / panel installation |
| Power Supply | 10–30 VDC typical |
| Diagnostics | Radio signal strength, link status, communication statistics |
| Operating Temperature | Industrial temperature range |
| Application | PLC communication, SCADA, remote I/O, telemetry |
| Installation Environment | Industrial control cabinets and outdoor enclosures |
Product Introduction
ProSoft Technology -IFH24E Product Introduction
ProSoft Technology -IFH24E is an industrial wireless Ethernet communication module designed to connect automation equipment in locations where wired Ethernet installation is difficult, expensive, or impractical. It provides a wireless bridge between Ethernet-based control devices while maintaining compatibility with common industrial networking requirements.
The ProSoft nology belongs to the RadioLinx family, which was developed for industrial environments requiring flexible wireless communication between distributed assets. The module can connect PLCs, HMIs, remote I/O stations, and supervisory systems while reducing the need for long-distance Ethernet cabling.
The ProSoft nology supports industrial communication applications where equipment is separated by distance, moving machinery, or difficult installation areas. Typical deployments include remote pump stations, material handling systems, outdoor equipment monitoring, and factory automation networks.
The module should be engineered as part of a complete wireless system. Antenna placement, radio frequency conditions, line-of-sight requirements, and network traffic levels directly influence communication performance. A successful installation requires more than simply configuring IP addresses; the wireless link must be validated under actual operating conditions.

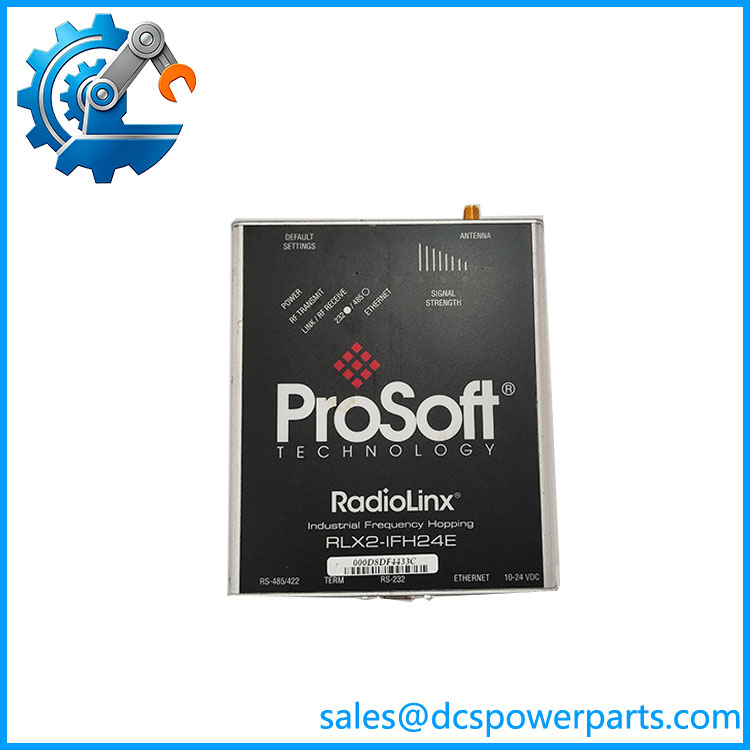

RLX2-IFH24E
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A plant needs Ethernet communication with equipment located hundreds of meters away or across areas where installing cable is disruptive. Traditional wiring may require significant construction work, cable trays, or shutdown periods.
Wireless Ethernet radios provide an alternative, but the radio link becomes part of the automation infrastructure and must be designed carefully.
Typical Applications
Manufacturing Automation
Used for:
- Remote PLC communication
- Production line expansion
- Machine-to-machine networking
- Mobile equipment connectivity
Water and Wastewater Systems
Applied for:
- Pump station monitoring
- Remote instrumentation
- Reservoir communication
- Control system networking
Oil & Gas Facilities
Used for:
- Remote equipment monitoring
- Pipeline stations
- Skid package communication
- Field data transmission
Industrial Utilities
Applied for:
- Energy monitoring
- Building automation networks
- Distributed control applications
Technical Pitfalls to Avoid
1. Antenna Installation Is Critical
Before commissioning, verify:
- Antenna type
- Antenna gain
- Cable length
- Mounting location
- Radio line-of-sight
Poor antenna placement is one of the most common causes of unstable wireless communication.
2. Evaluate Radio Environment
Check for:
- Nearby wireless equipment
- Industrial interference sources
- Metal structures blocking signals
- Changing environmental conditions
3. Confirm Network Configuration
Verify:
- IP addressing
- Ethernet subnet design
- PLC communication settings
- Data traffic requirements
4. Plan for Industrial Reliability
Consider:
- Backup communication paths
- Signal monitoring
- Environmental enclosure requirements
- Power supply stability
