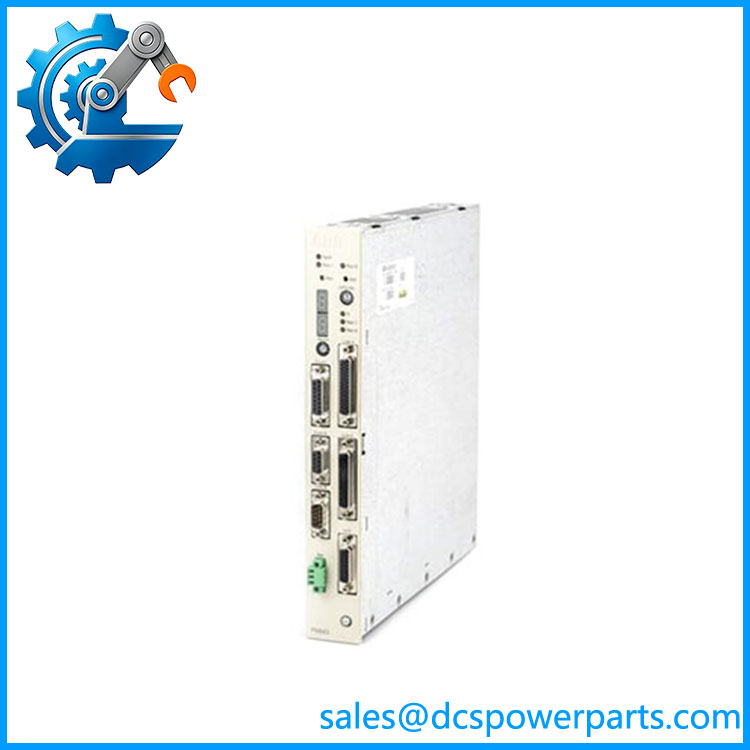

PM665 3BDS005799R1 Advant Controller 160 (AC 160) PowerPC RISC Processor

PM665 3BDS005799R1 Advant Controller 160 (AC 160) PowerPC RISC Processor

Model:PM665 3BDS005799R1

Brand:ABB

Core Function:Advant Controller 160 (AC 160) PowerPC RISC Processor

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: PM665 3BDS005799R1

Description

The part numbers PM665 and 3BDS005799R1 refer to a high-performance central processing module manufactured by ABB.

Product Overview

  • Manufacturer: ABB

  • Model / Type Designation: PM665

  • ABB Catalog / Part Number: 3BDS005799R1

  • Component Type: Central Processing Unit (CPU) / Processor Module

  • Platform: ABB Advant Controller 160 (AC 160) / Modular Industrial Control Systems

Key Specifications & Features

  • Processor Architecture: Built on a robust PowerPC-based processing core engineered for heavy deterministic computing tasks.

  • Redundancy Support: Equipped with an onboard redundancy voter, making it fully compatible with high-availability, fault-tolerant dual-processor configurations.

  • Advanced Interfaces:

    • Features a High-Speed Link (HSL) connection for fast, deterministic node-to-node network communication.

    • Includes dedicated speed input connections for direct monitoring of rotational velocity or frequency signals without intermediate processing delays.

  • Physical Dimensions:

    • Width: 40 mm

    • Height: 273 mm

    • Depth: 252 mm

    • Weight: Approx. 2.04 kg

Industrial Deployment

  • Applications: Widely deployed in complex industrial automation, large-scale power generation, heavy manufacturing, and continuous process control environments utilizing ABB Advant architecture where high reliability and rapid cycle execution are critical.

    PM665



PM665 3BDS005799R1

Product Overview

PM665, part number 3BDS005799R1, is a high-performance PowerPC-based processor module manufactured by ABB for Advant Controller 160 within the Advant Master DCS platform. Serving as the core processing unit inside control racks, it executes closed-loop control algorithms, sequence logic, alarm management and event processing. The module integrates an onboard hardware redundancy voter, dedicated high-speed rack link interfaces and built-in speed input channels, specially optimized for rotating machinery monitoring. It supports dual redundant hot-standby configuration and communicates with S600/S800 I/O modules, fieldbus devices and System 800xA operation platforms. Widely deployed on turbine, generator and compressor control systems for power generation and process industries.

Technical Specifications

Item Parameter
Module Model PM665
Full Part Number 3BDS005799R1
Manufacturer ABB
Applicable Platform Advant Controller 160 / Advant Master DCS
Processor Architecture PowerPC RISC Processor
Core Function Control logic execution, I/O management, redundant voting, speed signal acquisition, high-speed inter-rack communication
Built-in Hardware Redundancy voter, high-speed link ports, dedicated speed input channels
Interfaces Multiple D-Sub communication connectors, rack backplane interface
Mounting Form Plug-in module for Advant control rack
Power Supply Powered via rack backplane bus
Operating Temperature -20℃ ~ +70℃
Ambient Humidity 5%–95% non-condensing
Protection Class IP20 (cabinet internal installation)
Supported Upper System ABB System 800xA
Spare Part Status Original production discontinued; new surplus and refurbished modules available

Key Features

  • PowerPC high-performance processor delivers stable real-time computing for complex continuous process control
  • Integrated hardware redundancy voter enables dual-processor hot standby to eliminate single-point failure risks
  • Native speed input channels simplify shaft speed signal acquisition for turbine and rotating equipment control
  • High-speed dedicated links support low-latency data exchange between racks and distributed I/O modules
  • Comprehensive onboard self-diagnosis system with front panel LED indicators for status and fault visualization
  • Robust industrial mechanical structure with anti-vibration PCB layout suitable for power plant continuous operation
  • Reliable multi-channel communication interfaces for seamless connection with field I/O, HMI and remote control systems
  • Strict full part number matching required; different hardware revisions cannot be directly interchanged without configuration verification
  • Compatible with legacy Advant OCS control architecture, ideal for system maintenance and upgrade retrofit projects

Application Scope

Thermal & hydropower turbine control systems, generator excitation control cabinets, large compressor protection control racks, petrochemical process DCS, pulp & paper automation systems, and maintenance retrofits of legacy ABB Advant Master distributed control platforms.
