Description
Product Overview

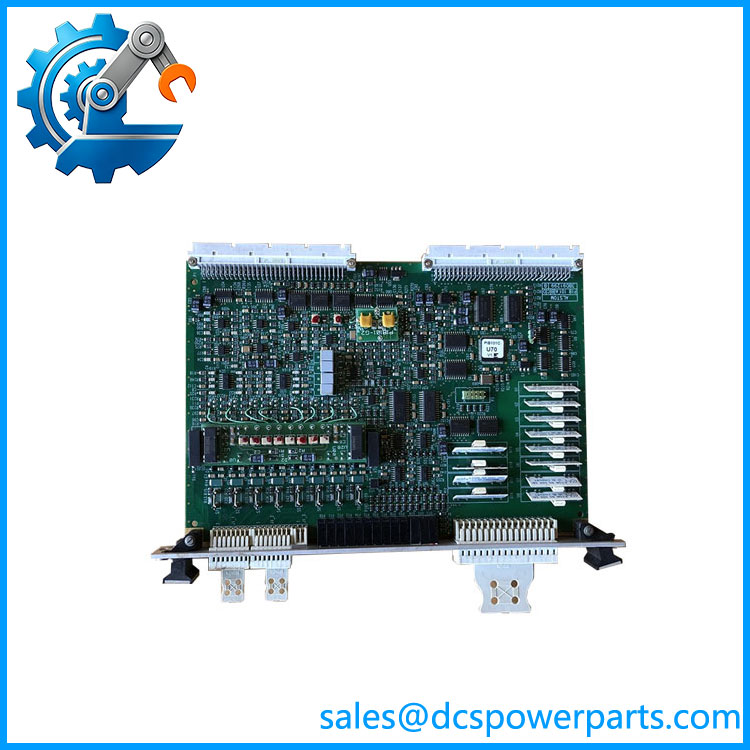

ALSTOM PIB101C is an industrial interface PCB designed for ALSTOM Converteam automation and power conversion platforms. The board provides a connection layer between controller electronics, rack modules, and external system interfaces, allowing different sections of the control architecture to exchange operating information.
The ALSTOM PIB101C belongs to the same general PIB interface family as boards such as PIB102A and PIB310, but each PIB variant has its own electrical definition, connector assignment, and system role. These boards are application-specific and should be matched by exact model and hardware revision rather than physical appearance alone.
Typical system architecture:
Controller Module → PIB101C Interface Board → Drive Control Network → Converter / Motor Control Hardware
The PIB101C supports communication and interface functions required for coordinated operation of large electrical drive systems. It can provide signal routing, interface adaptation, and connection between internal control assemblies depending on the host ALSTOM platform configuration.
Common applications include:
- Medium-voltage motor drives
- Industrial converter systems
- Marine propulsion control systems
- Power generation equipment
- Large process automation installations
In long-service ALSTOM installations, the PIB101C is typically maintained as a replacement-level control component. Failure of an interface board can create system symptoms that appear unrelated, including communication loss, missing feedback signals, drive enable problems, or controller initialization faults.
Before replacement, engineers should verify:
- Complete board identification
- Hardware revision
- Rack location
- Connector configuration
- Associated CPU and interface modules
- System firmware compatibility
A replacement PIB101C should be tested within the complete control system because individual PCB power-up verification does not confirm correct communication or application compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | |
| Product Type | Industrial Interface Board |
| Series | PIB Interface Board Family |
| Main Function | Signal interface and system interconnection |
| Application | Drive control and power conversion systems |
| Communication | Internal system interface (platform dependent) |
| Signal Handling | Control and feedback signal exchange |
| Mounting Type | Rack-mounted PCB |
| Power Supply | System rack supply (configuration dependent) |
| Cooling Method | Cabinet airflow |
| Operating Environment | Industrial automation cabinet |
| Replacement Category | Control system spare module |
Main Features and Advantages
PIB101C
Dedicated ALSTOM Control Interface
The main function of the is providing an interface point between multiple sections of an industrial control system.
Typical functions:
- Signal transfer
- Interface adaptation
- Control data routing
- Module coordination
This architecture separates controller processing functions from interface and power hardware.
Application-Specific Industrial Design
The was developed for ALSTOM/Converteam control platforms where dedicated hardware interfaces are required.
Typical installation environments:
- Large motor drive systems
- Converter cabinets
- Industrial electrical control rooms
- Marine propulsion systems
Modular Maintenance Concept
The board follows the modular design approach used in ALSTOM control systems.
Maintenance advantages:
- Individual PCB replacement
- Easier fault isolation
- Reduced system intervention
- Preservation of existing cabinet design
Supports Legacy Equipment Operation
Many ALSTOM drive and automation systems remain in operation for extended service periods.
Maintaining spare boards helps support:
- Existing production assets
- Original control architecture
- Reduced downtime during repairs
Engineering Verification Requirements
Before installing a replacement , check:
- Board part number
- PCB revision
- Rack compatibility
- Power supply condition
- Communication wiring
- Connected modules
A similar-looking PIB board may not operate correctly if the internal wiring or firmware configuration differs.
Application Scenarios
Medium Voltage Drive Systems
Used for:
- Large industrial motors
- Pumps
- Compressors
- Fans
Power Conversion Equipment
Applications:
- Converter cabinets
- Electrical control systems
- Energy conversion platforms
Marine Electrical Systems
Used in:
- Propulsion control
- Shipboard drive systems
Industrial Automation
Applications:
- Process plants
- Heavy industry
- Manufacturing systems
Related Components
| Model | Function |
|---|---|
| PIB102A 3BEB0180 | Communication interface board |
| PIB310 3BHB0190 | Power interface board |
| PIB903 | Rack power interface module |
| BGTR8HE 24491276A1004 | VME control rack assembly |
| MV7000 Series | ALSTOM/Converteam drive platform |
Engineer’s Guide: Field Pitfalls
⚠️ Confirm Exact PIB Variant
, PIB102A, and PIB310 are related family products but should not be substituted without verification.
Confirm:
- Model marking
- Hardware revision
- Connector layout
- System documentation
⚠️ Investigate External Fault Sources
Interface board failures may result from:
- Unstable rack power
- Backplane contact issues
- Communication cable faults
- Downstream module problems
⚠️ Record Existing Configuration
Before removing the board:
- Photograph installation position
- Label connectors
- Record alarm information
- Save controller parameters
⚠️ Refurbished Board Testing Requirements
Recommended checks:
- PCB visual inspection
- Power rail measurement
- Connector inspection
- Communication interface test
- Rack integration test
- Controller recognition test
- Extended operation verification
A board that powers on does not confirm full system compatibility.
Frequently Asked Questions
What is ALSTOM ?
The is an industrial interface board used in ALSTOM/Converteam power conversion and drive control systems.
Is a PLC CPU module?
No. It is an interface PCB used inside a dedicated industrial control architecture.
Can replace PIB102A?
Not directly. Although both are PIB-family boards, their hardware functions and system assignments may differ.
What should be checked before replacement?
Verify:
- model marking
- Hardware revision
- Rack type
- Connector configuration
- System firmware
- Associated modules
- Application documentation
