Description
Product Overview

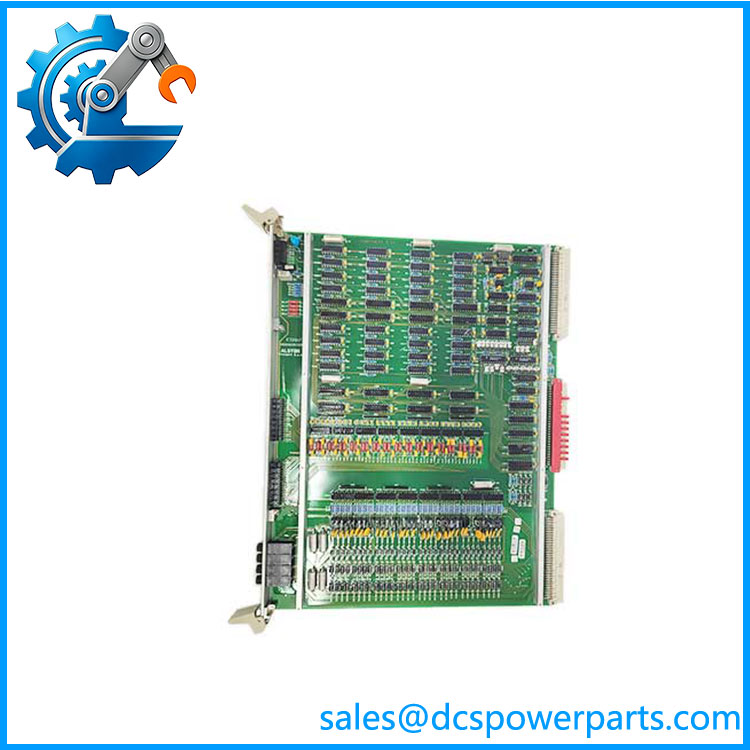

The ALSTOM N895609510K N895609010R E32OUT N895609100P is a legacy ALSTOM digital-output assembly used within E-series control hardware. The four identifiers are commonly presented together, with E32OUT serving as the functional designation and N895609100P appearing as the associated assembly number. Current technical references classify the unit as a digital-output module rather than a CPU or general-purpose I/O controller.
At the system level, the ALSTOM N895609510K converts control logic generated by the host processor into discrete output commands. Typical applications for this class of hardware include relay control, status indication, interlock logic, alarm functions, and other binary control circuits. The board is therefore part of the final control path between the electronic control system and external equipment. Its actual field wiring and electrical loading depend on the installed ALSTOM configuration.
The ALSTOM E32OUT N895609100P should not be confused with the separately identified N895600512D/N895600051C ECPU_1, which is listed as a central processor module. The N895609 series is also listed alongside ALSTOM diagnostic, analog-output, and processor modules, indicating that these assemblies form part of a broader legacy control platform.
One secondary source states that E32OUT provides 32 output channels, while assigning different channel counts to the associated N895609010R and N895609510K identifiers. Because those detailed electrical claims are not independently corroborated, the safest procurement specification is the complete four-part identification plus the E32OUT marking.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM |
| Primary Identification | N895609510K |
| Associated Identification | N895609010R |
| Functional Designation | |
| Assembly Number | N895609100P |
| Product Type | Digital Output Module |
| Output Type | Discrete / Digital |
| Channel Count | 32 channels reported for |
| System Architecture | ALSTOM E-Series / legacy rack-based control |
| Host Interface | Rack/backplane dependent |
| Field Interface | System configuration dependent |
| Output Voltage | Not reliably confirmed |
| Maximum Output Current | Not reliably confirmed |
| Electrical Isolation | Configuration dependent; verify original documentation |
| Communication Protocol | Not applicable as a conventional network module; host/backplane interface is system dependent |
| Mounting | Compatible ALSTOM rack |
| Firmware | System dependent |
| Operating Temperature | Not reliably confirmed |
| Condition | New Surplus, subject to inspection and functional testing |
The 32-channel figure is specifically reported for by a secondary technical source. I would not publish the same source’s claims regarding 2 A/48 VDC output, 2.5 kV isolation, surge ratings, or 5 VDC/±12 VDC supply as confirmed specifications without primary documentation.
N895609510K
Related Products
- ALSTOM N895609010R — Associated N895609-series digital-output identification. It is listed alongside and appears to represent a related output hardware configuration. Verify the exact board marking before treating it as an alternative.
- ALSTOM / — The functional assembly designation. References identify this version as a 32-channel digital-output module.
- ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processor assembly. It generates or coordinates control logic, while provides the downstream discrete output function.
- ALSTOM N897066510E / N897066010M / AOVD / N897066000A — Analog output module. It serves analog control signals rather than binary outputs.
- ALSTOM N897093511D / N897093051D / DIAGNOSTICA / N897093400H — Diagnostic/data-acquisition hardware. It provides monitoring and diagnostic functions rather than field output switching.
- ALSTOM N895313512X / N95313012D / SUP-AL / N895313000R — Related legacy ALSTOM control/supervision module. It belongs to the same broader hardware ecosystem but has a different system role.
- ALSTOM N897092520B / N897092057Y / TRENO / N897092500E — Legacy railway/traction control module. Its application differs from the digital-output function.
- ALSTOM 42011-106-00 A01 / ITC_VIOM_VIOC VER.A01 — VIOC I/O processing board. It handles I/O processing within a different ALSTOM architecture and should not be considered a direct replacement.
Frequently Asked Questions
1. What is ALSTOM N895609510K N895609010R used for?
It is a digital-output assembly for an ALSTOM legacy control system. The designation is associated with discrete output processing, while one technical reference specifically identifies as a 32-channel output module.
Its job is downstream of the processor: receive control decisions and switch or command external binary devices through the configured output circuitry.
2. Is really a 32-channel module?
The available product evidence says yes.
A current technical listing identifies as a 32-channel digital-output unit.
That does not establish that every N895609-series identifier has 32 identical channels. The and numbers should remain part of the identification chain when ordering a replacement.
3. Can I replace with ?
Not automatically.
Although both numbers appear in the same product identification, they may represent different board, assembly, or configuration levels. Before substitution, compare:
- Complete part number
- PCB marking
- Output channel configuration
- Connector pinout
- Field voltage
- Load requirements
- Rack slot
- System revision
A similar part number is not sufficient evidence of interchangeability.
4. Can I hot-swap this digital-output module?
Do not assume it is hot-swappable.
One secondary source claims hot replacement may be supported depending on configuration, but that statement is not sufficient to establish a system-wide hot-swap specification.
For a plant installation, follow the cabinet maintenance procedure. Removing an energized output board can change relay states or interrupt critical interlocks.
5. Will replacing erase my control logic?
Normally, the should not be treated as the main application-logic processor. The ALSTOM ECPU_1 family is separately identified as central processor hardware.
The practical concern is output configuration. After replacement, verify channel assignments, output states, interlocks, and diagnostics before returning the equipment to automatic operation.
6. Does this support firmware v3.1?
There is no reliable evidence establishing firmware v3.1 as a universal requirement for the N895609-series hardware.
For a replacement project, record the existing board revision and host-system software version. If the output card is configuration-dependent, confirm compatibility before installation.
7. How should I verify a New Surplus before installation?
Use the complete identification:
/ / /
Then inspect:
- PCB and label markings
- Hardware revision
- Connector condition
- Relay/output components
- Signs of corrosion or storage damage
- Rack/backplane compatibility
- Output channel configuration
- Field-voltage requirements
- Controlled power-up behavior
- Channel-by-channel output testing
Procurement judgment: The strongest available evidence supports identifying this assembly as an ALSTOM digital-output module, with 32 channels specifically reported for . Detailed load ratings and electrical isolation specifications are less certain, so those should not be treated as confirmed until matched against the original ALSTOM documentation or the installed board.
