ALSTOM SDK-C0148 | SBS05M09B Control Module

Description

Product Overview

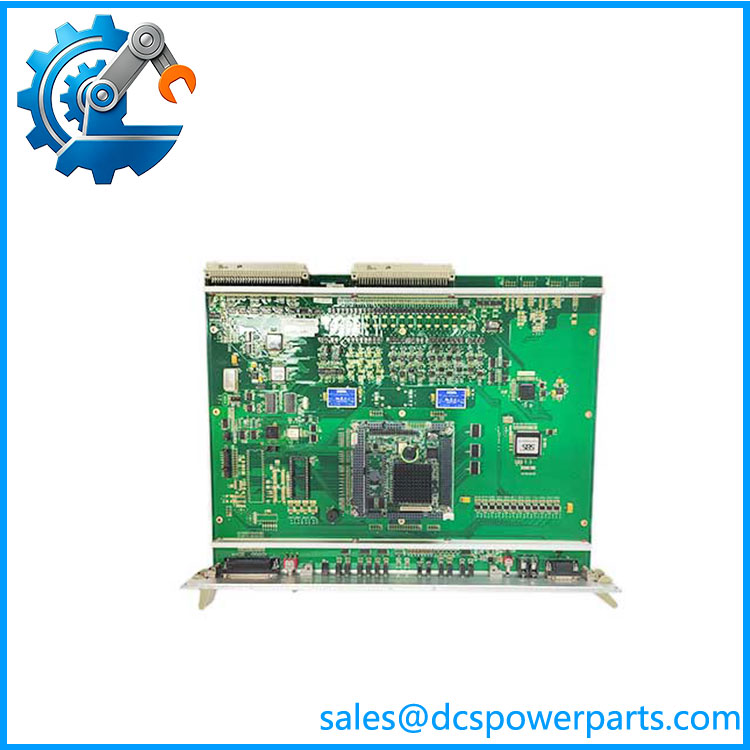

The ALSTOM SDK-C0148 12003-101-01 SBS05M09B is a legacy ALSTOM control module used within rack-based industrial control architectures. Product references consistently identify SDK-C0148, 12003-101-01, and SBS05M09B together, with the module generally described as an ALSTOM control-module card. Its physical construction and backplane-oriented design indicate that it is intended to operate as part of a larger control cabinet rather than as an independent PLC controller.

The ALSTOM SDK-C0148 is particularly relevant when maintaining older ALSTOM installations where the original control hardware remains in service and replacement boards must match the existing rack architecture. One technical listing describes the unit as a plug-in, backplane-powered control board, with system communication and signaling handled through the host architecture. That makes rack type, slot assignment, connector configuration, hardware revision, and neighboring modules important compatibility factors. A visually similar board from the same 12003/12004 family should not be assumed to be interchangeable.

The ALSTOM 12003-101-01 SBS05M09B is also listed alongside other ALSTOM legacy control boards such as SDK-C0147 and SDK-C0167-1. Some secondary sources describe SDK-C0148 as a traction-control module and publish detailed I/O figures, 24 VDC power requirements, and communication interfaces. Those figures are not corroborated by the more conservative product references, which identify the unit simply as a control module. For a plant replacement, I would therefore verify the exact board revision and cabinet application before treating any generic channel count or electrical rating as authoritative.

Key Technical Specifications

Specification caution: One secondary source claims a 6-AI/4-AO/12-DI/8-DO configuration, 24 VDC input, Ethernet/IP, Profibus DP, CANopen, and IEC 61131-3 programming. Another source gives different generic voltage, communication, temperature, and dimensional information. These discrepancies are too significant to present those values as confirmed specifications for the exact SBS05M09B board.

The safer engineering description is a system-dependent ALSTOM plug-in control module, with exact electrical and I/O characteristics verified from the installed unit and original cabinet documentation.

SDK-C0148

Related Products

• ALSTOM SDK-C0147 / 12004-101-00 / SBS04M17C — Related ALSTOM control module from the same legacy ecosystem. It is a useful cross-reference when maintaining adjacent control hardware, but its different part and SBS numbers prevent automatic substitution.
• ALSTOM SDK-C0167-1 / 12004-08-01 / SBS07M076B — Another ALSTOM control module in the same legacy family. Its different board designation indicates a different system assignment; verify slot and function before considering replacement.
• ALSTOM 12004-102-01 / VPS BOARD VER.C — VPS board associated with the same broader rack architecture. It is relevant to rack-level power/interface functions rather than serving as a direct replacement for .
• ALSTOM 12004-103-01 / I/OBUS2 — Bus-interface module used within the legacy ALSTOM architecture. Its primary role is system bus interfacing rather than general control processing.
• ALSTOM 12004-104-00 / I/OBE2 — Distributed I/O interface module. It can complement a control module by handling field I/O, but it is not a direct substitute for .
• ALSTOM 12004-106-04 / VOOB8-B — Output/interface hardware from the same family. It is applicable where discrete output functions are required, rather than as a general control-board replacement.
• ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processor module in the broader ALSTOM control architecture. Its role is closer to central processing, while is identified as a control module.
• ALSTOM N895313512X / N95313012D / SUP-AL / N895313000R — Supervision/alarm-related hardware used in legacy ALSTOM cabinets. It complements control electronics but has a different system function.

Frequently Asked Questions

1. What is ALSTOM 12003-101-01 used for?

It is identified as an ALSTOM control module / plug-in control board for legacy rack-based control equipment. Multiple references associate the three identifiers with the same product.

Its exact control assignment depends on the host ALSTOM system, so I would not infer a specific I/O count from the part number alone.

2. Can I replace with SDK-C0147 or SDK-C0167-1?

Not as a direct substitution.

Although these modules belong to the same general ALSTOM control ecosystem, their identifiers are different:

• SDK-C0147 → 12004-101-00 / SBS04M17C
• → 12003-101-01 /
• SDK-C0167-1 → 12004-08-01 / SBS07M076B

They should be treated as separate hardware assemblies unless the original ALSTOM system documentation explicitly approves the substitution.

3. Does support firmware v3.1?

There is no reliable evidence confirming firmware v3.1 as a universal specification for this board.

For an installed system, record the original board revision and host software/configuration revision before replacement. Firmware compatibility should be established from the actual ALSTOM system rather than from generic product listings.

4. Can I hot-swap this module?

Do not assume that it is hot-swappable.

The available technical description identifies the board as a plug-in, backplane-powered module. Physical plug-in construction does not automatically mean energized insertion/removal is permitted.

For maintenance:

1. Put the process in the approved maintenance state.
2. Isolate power where required.
3. Record the board identification and revision.
4. Remove the original module using ESD precautions.
5. Install the matching board.
6. Restore power under controlled conditions.
7. Verify diagnostics and affected control functions.

5. Will I lose my PLC or DCS logic if I replace ?

Not normally because the board should not automatically be classified as the system’s primary application-logic storage device.

The important risk is configuration compatibility. If the board participates in a specific control function, replacing it with a different revision or configuration can cause faults even though the main application program remains intact.

6. Why do some listings say has 6 AI, 4 AO, 12 DI, and 8 DO?

Those figures appear in one secondary technical listing, along with 24 VDC power, Ethernet/IP, Profibus DP, CANopen, and other detailed specifications.

The problem is that other references do not corroborate those specifications, and another listing provides a different set of generic electrical data.

Procurement judgment: I would not use those channel counts for cabinet engineering without the original ALSTOM documentation or a clear photograph of the board and its connectors.

7. How should I verify a New Surplus ?

Use all three identifiers:

• 12003-101-01

Then verify:

• PCB revision
• Connector/backplane condition
• Component condition
• Rack compatibility
• Original slot position
• Hardware revision
• Configuration requirements
• Controlled power-up
• System diagnostics
• Actual control/I/O behavior

Quality-control judgment: For this legacy ALSTOM spare, matching the complete identification chain is more important than accepting a generic specification sheet. The public evidence supports its identity as an ALSTOM control module, but the detailed electrical and I/O specifications remain insufficiently verified.
