Metso IOP320 | 4–20 mA Analog Output Module | maxPAC DCS Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IOP320 |
| Manufacturer | Metso Automation |
| Product Family | maxPAC I/O |
| Module Type | 4–20 mA Analog Output |
| Number of Outputs | 8 |
| Output Range | 4–20 mA |
| Resolution | 12 bit |
| Load Impedance | 0–800 Ω |
| System Supply | 24 VDC via backplane |
| Loop Supply | 24 VDC via backplane |
| Input Power | Approx. 175 mA from 24 V system supply |
| Accuracy | 0.1% of reading, 0.05% of span at 25°C |
| Temperature Sensitivity | 0.004% of reading/°C; 1.5 µV/°C RTI |
| Rise Time | 750 ms |
| Calibration | Automatic/self-calibration at startup |
| Diagnostics | Open-load detection and power-up diagnostics |
| Communication | maxPAC I/O bus to DPU |
The Metso hardware guide specifically describes IOP320 as a microprocessor-based module supporting up to eight 4–20 mA outputs. Each output is generated through a D/A stage with optical isolation between the logic and field sides, while the module also detects open-load conditions and reports them to the DPU.
Product Introduction

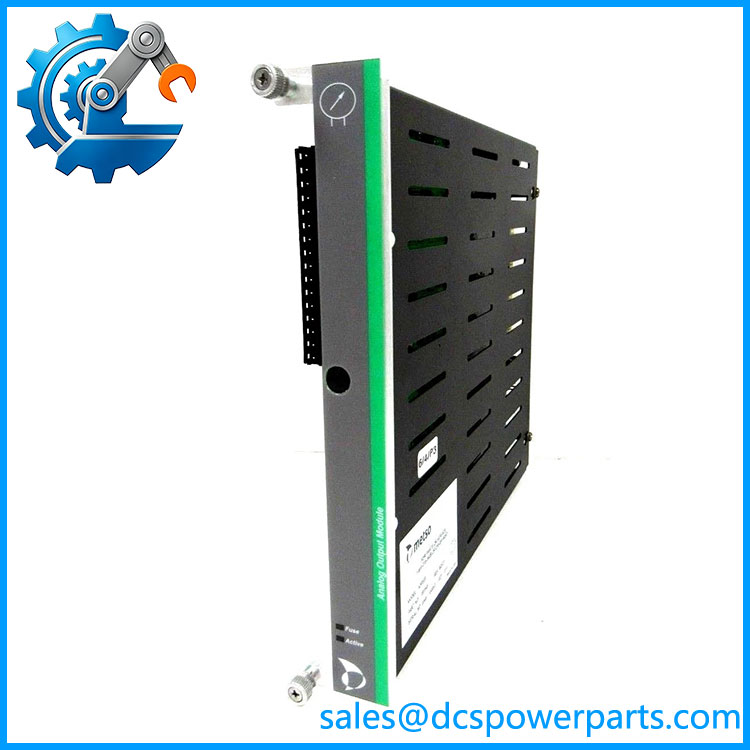

The Metso IOP320 is an eight-channel analog output module for the maxPAC I/O architecture, used in Metso Automation DCS applications. It converts commands received from the Distributed Processing Unit into standard 4–20 mA signals for field devices such as control valves, positioners, actuators, and other modulating equipment.
The Metso IOP320 receives its system power through the backplane and also makes 24 V loop power available to the output circuits. Its internal microcontroller, FPGA, optical isolation, watchdog, diagnostics, and startup calibration make it more than a simple passive current-output card.
IOP320
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The important issue with an IOP320 replacement is not simply getting an eight-channel 4–20 mA card. The module is designed for the maxPAC I/O bus and its DPU/backplane architecture. A generic analog-output module cannot replace it without matching the system interface and field-power arrangement.
Typical Applications
- Control valve positioning — Provides 4–20 mA commands to valve positioners and actuator interfaces.
- Process control loops — Outputs continuous control signals for pressure, temperature, flow, and level loops.
- Motor and drive references — Can provide analog reference signals where the field interface is designed around 4–20 mA.
- Metso DCS systems — Used as an output module within the maxPAC distributed I/O architecture.
Technical Pitfalls to Avoid
- Do not confuse with IOP321. Both are eight-channel 4–20 mA output modules, but the hardware guide identifies IOP321 as the isolated-output version with fused isolated field power. instead receives loop power through the backplane.
- Do not use the frequently advertised 220 VAC specification. Several current reseller pages claim that operates from 220 V and provide unrelated figures such as 30 kHz output frequency. Those values conflict with the Metso hardware documentation, which specifies 24 V system power through the backplane.
- Check output loading. The documented load impedance is 0–800 Ω. When replacing a module, calculate the complete loop burden, including the positioner, isolator, barrier, wiring resistance, and any other series components.
- Check the watchdog/output-state configuration. The watchdog monitors communication with the I/O bus. If communication is lost for more than approximately 0.7 seconds, the outputs can either reset or remain at their last state depending on the onboard program-jumper configuration.
Related Products
- IOP321 — Eight-channel 4–20 mA isolated analog output module; the principal related module when individual field-power isolation is required.
- IOP302 — Analog input module used for bringing process signals into the maxPAC system; opposite signal direction from .
- IOP304 — Thermocouple input module for temperature measurement within the same maxPAC I/O family.
- IOP330 — 24 V common digital input module with 16 digital inputs.
- IOP331 — 48 V common digital input module with 16 digital inputs.
- IOP350 — Related maxPAC digital-output family component; verify the exact application before substitution.
- DPU — Distributed Processing Unit that scans and exchanges data with the I/O modules over the maxPAC I/O architecture.
- 181545 / 69230I320A — Ordering references associated with the designation in current technical records.
Procurement Note
For a replacement, verify the complete module marking, revision, ordering number, maxPAC DPU configuration, and backplane installation before purchasing. The commonly referenced ordering numbers include 181545 and 69230I320A, but the physical module marking should take priority when reconciling an older plant BOM.
For used or surplus hardware, inspect the output terminals, backplane connector, fuse/loop-power circuitry, front-panel indicators, and signs of overheating. After installation, test each 4–20 mA channel under load rather than relying only on a no-load output measurement.
A particularly important field check is the 0–800 Ω loop burden and the watchdog/output-state jumper. Those two details can affect whether an otherwise electrically functional behaves correctly when connected to the existing field loop.
