Metso D202214 | ACN MR Controller Base Module, Industrial Automation

Description

Key Technical Specifications

A recurring configuration in available technical records is:

D202275 ACN MR Controller + D201832L IPSP + D202214 Base.

That distinction matters. D202214 should not be described as the CPU itself. The controller function is associated with D202275, while D202214 serves as the base assembly in this configuration.

Product Introduction

Metso D202214

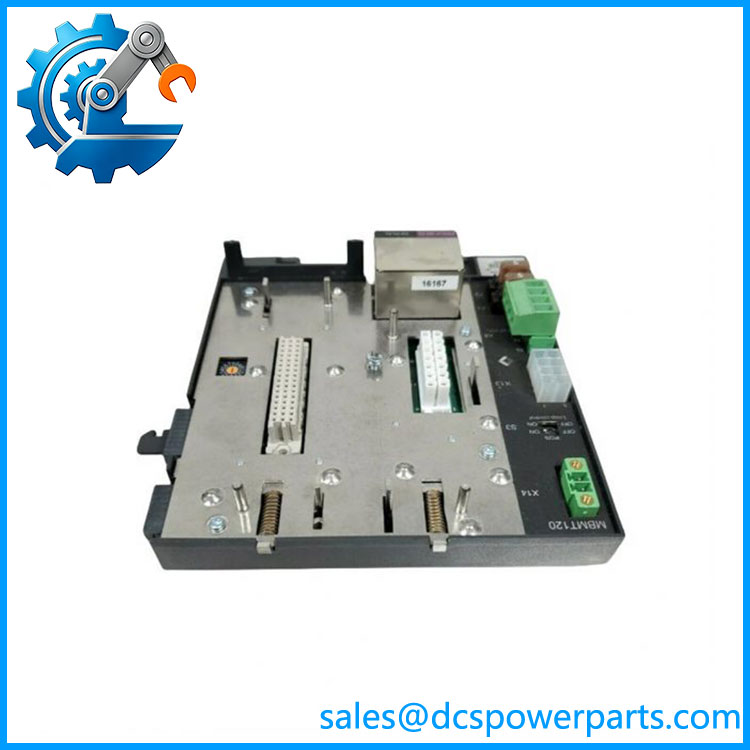

The is a base assembly used in the ACN MR controller architecture, with documentation and equipment listings associating it with the D202275 controller and D201832L IPSP module. It provides the physical and electrical foundation on which the controller assembly is built.

For legacy DCS maintenance, this is an important distinction. A base/backplane failure can interrupt an otherwise healthy controller because power and module interconnections pass through the assembly. Replacement should therefore be based on the complete ACN MR configuration rather than the number alone.

D202214

Application Scenarios & Field Pitfalls

Engineering Pain Point

A controller can be perfectly healthy and still fail to communicate if the base assembly has a damaged connector, poor contact, cracked solder joint, or power-distribution problem. This is particularly common in older automation cabinets where years of thermal cycling and vibration have taken their toll. Replacing the CPU first is not always the right diagnosis.

Typical Applications

• Pulp and Paper Mills — Process-control systems for stock preparation, paper machines, pumps, drives, and auxiliary processes.
• Mining and Minerals — Distributed process control for grinding, conveying, flotation, and material-handling systems.
• Metallurgical Plants — Legacy process automation and equipment-control cabinets.
• Industrial Process Plants — ACN MR-based controller installations requiring replacement of aging controller-base hardware.

Metso continues to supply automation solutions for process industries, including mining and grinding applications, although the itself belongs to an older controller generation.

Technical Pitfalls to Avoid

1. Do not call the CPU.
   The available configuration evidence specifically identifies D202275 as the ACN MR controller, with D201832L and forming part of the controller assembly.
2. Verify the complete assembly.
   Before ordering, record the part numbers of the controller and D201832L IPSP installed with the base. The combination is more useful for identification than alone.
3. Inspect the backplane connectors carefully.
   On legacy modular systems, intermittent faults can originate from oxidation, mechanical stress, connector wear, or poor seating. A controller replacement will not fix a defective electrical interface.
4. Do not assume modern specifications apply.
   Some commercial listings incorrectly describe as a standalone controller and publish generic electrical specifications. Those figures are not sufficiently supported for engineering use. The more reliable evidence identifies as the base of an ACN MR controller assembly.
5. Check the power-supply path separately.
   is identified as the IPSP associated with the / assembly. If the controller has a power-related fault, test the IPSP and incoming supply before condemning the base.
6. Document module positions before removal.
   Photograph the installed assembly and record connector locations. Legacy controller cabinets often contain field-specific wiring that cannot safely be inferred from the part number.
7. Check system configuration after replacement.
   The base itself may not contain application firmware, but the installed controller does. Preserve the existing controller configuration before performing a controller-level replacement.
8. Do not substitute a physically similar base without documentation.
   Mechanical compatibility is not enough. Pin assignment, power distribution, module-bus connections, and controller compatibility must match.

Related Products

• — ACN MR controller associated with the base. This is the active controller component, while provides the base/interface structure.
• — IPSP module used with the / controller assembly. It is an important companion component when troubleshooting power or controller startup problems.
• Metso IPSP + Base — The combined base/power-support portion of the ACN MR controller architecture. Verify both part numbers when sourcing a complete controller assembly.
• Metso D201189L — Legacy Metso automation I/O hardware encountered in related ACN/legacy automation systems. It serves an I/O role rather than replacing the base.
• Metso AI8H D201189 — Analog-input hardware associated with legacy Metso automation systems. It is complementary I/O equipment, not a substitute for the controller base.
• Metso D201376 — Legacy Metso analog-input module. Applicable where additional analog process signals are required; it does not perform the base/backplane function of .
• Metso D200175 — Legacy Metso PLC/interface module found in older automation architectures. Its role is different from the ACN MR controller base.
• Metso D100644 — Legacy I/O processor hardware. It belongs to the broader Metso automation spare-parts ecosystem but should not be treated as a functional replacement for .
• Metso IOP313 — Legacy Metso CPU/controller hardware. It represents a different controller architecture and is not a direct replacement.
• Metso PDP403 — Distributed processing unit used in Metso automation systems. It provides processing functionality rather than the mechanical/electrical base function of .
