Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | D201379L |
| Manufacturer | Metso Automation / Valmet DNA |
| Product Type | Universal Analog Input Module |
| Series | D201 Process I/O Series |
| Input Channels | 8 channels |
| Input Signal Types | 4–20 mA, 0–10 VDC, Pt100/Pt1000 RTD |
| Channel Isolation | Galvanically isolated inputs |
| Backplane Supply Voltage | 24 VDC nominal |
| Power Consumption | Approx. 7 W maximum |
| Measurement Accuracy | Approx. 0.2% full scale |
| Isolation Rating | Approx. 500 Vrms channel-to-backplane |
| Noise Rejection | >80 dB at 50/60 Hz |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +75°C |
| Humidity Range | 5–95% RH, non-condensing |
| Mounting | Valmet DNA D201 rack / I/O system |
| Application | Process measurement, instrumentation acquisition |
| Field Devices | Pressure, flow, level, and temperature transmitters |
Product Introduction
Metso D201379L Product Introduction
Metso D201379L is a universal analog input module used in Metso DNA and Valmet DNA distributed control systems. It collects field measurement signals from transmitters and sensors, including current, voltage, and RTD inputs, then converts these signals into process data for controller execution.
The main advantage of Metso D201379L is its ability to support mixed instrumentation requirements in a single I/O module, reducing cabinet complexity in process plants. The extended temperature design makes it suitable for installations where control cabinets experience wider ambient conditions. Confirm the exact I/O configuration and engineering database settings before replacement.

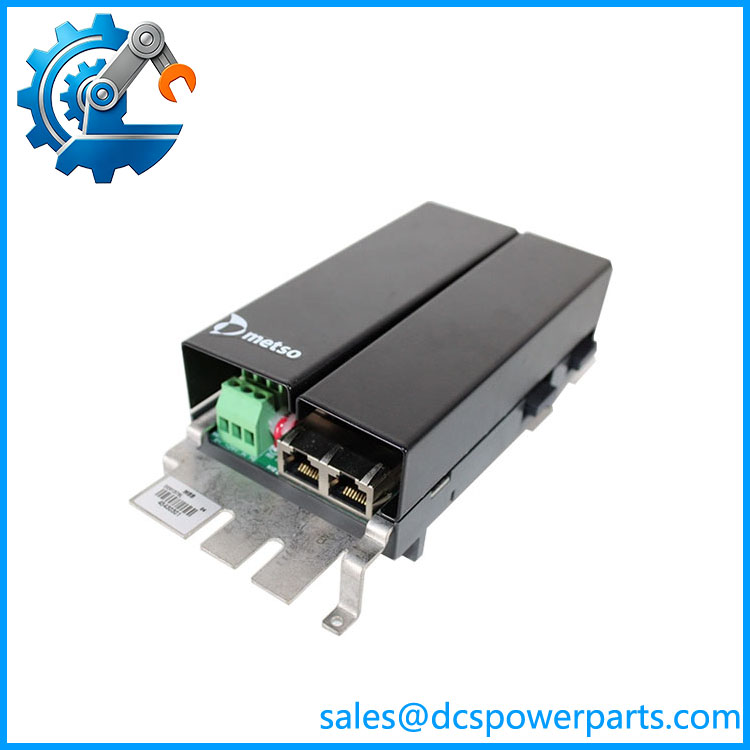

D201379L
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A paper machine suddenly shows unstable basis-weight control. Field transmitters are healthy, loop power checks are normal, and the process instrumentation team cannot find an obvious fault. The investigation often moves back to the DCS input layer where signal conversion, isolation, or channel diagnostics may have failed.
Analog input modules are the connection point between field instruments and control algorithms. A small configuration mistake can create incorrect process values.
Typical Applications
- Pulp & Paper Industry – Paper machine pressure, flow, temperature, and consistency measurement loops.
- Mining & Minerals – Pump station monitoring, slurry process measurement, and plant utility instrumentation.
- Chemical Processing – Reactor temperature, vessel level, and process flow acquisition.
- Power Generation – Auxiliary system monitoring, cooling circuits, and fuel handling instrumentation.
Technical Pitfalls to Avoid
- Confirm Input Type Before Installation
The D201379L supports multiple signal types, but channel configuration must match the connected transmitter or sensor. Incorrect selection can produce inaccurate readings. - Do Not Assume It Is a Direct Swap
Confirm the Valmet DNA I/O database, module address, rack position, and engineering configuration before replacement. - Inspect Field Wiring and Shielding
Analog signals are sensitive to grounding problems, cable damage, and electrical noise. A failed reading is not always caused by the I/O module itself.
