Description

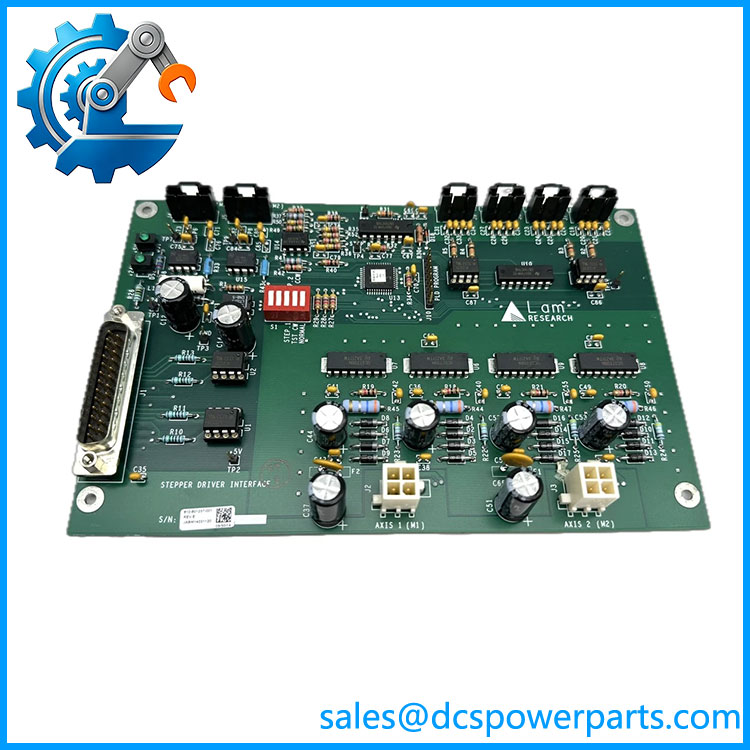

LAM Research 810-801237-001 Stepper Driver Interface PCB
Product Overview
The LAM Research 810-801237-001 is a Stepper Driver Interface printed circuit board used within LAM Research semiconductor manufacturing equipment. Public equipment-spare documentation identifies the part specifically as a Stepper Driver Interface PCB, while one equipment-maintenance source identifies it as being found on LAM Research 2300 Metal Systems.
This is not a conventional PLC I/O card or a standalone industrial stepper motor drive. Its role is as an equipment-level interface board within a semiconductor tool’s motion-control architecture. In practical terms, that means the board sits between the equipment control electronics and the associated stepper-drive circuitry, with its exact electrical responsibilities determined by the host-tool configuration. Publicly accessible documentation does not provide enough reliable information to state a universal supply voltage, number of controlled axes, connector pinout, motor current, or communication protocol for every 810-801237-001 installation. Those values should therefore be taken from the equipment-specific service documentation rather than copied from unrelated stepper-drive products.
The LAM Research 810-801237-001 is particularly relevant for legacy equipment maintenance because the part number continues to appear in semiconductor-equipment spare-parts records, while multiple board revisions have been observed. Records identify Rev C, Rev D, and Rev F examples. This makes revision matching a real procurement requirement rather than a cosmetic detail.
For an installed tool, the correct replacement is determined by more than the basic 810-801237-001 identifier. The engineer should compare the PCB revision, assembly markings, connector arrangement, host-tool model, firmware or configuration dependencies, and any daughterboard or cable assembly included with the original board.
Product Introduction
Motion-control faults on legacy semiconductor equipment are rarely solved by matching a PCB number alone. The 810-801237-001 is identified as a Stepper Driver Interface board, so its replacement should be treated as an equipment-level interface component rather than a generic motor-control module.
Revision control is especially important here. Public records show the same base part number associated with Rev C, Rev D, and Rev F boards. A replacement should therefore be checked against the revision installed in the tool before it is released for installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 810-801237-001 |
| Manufacturer / Brand | LAM Research |
| Product Type | Stepper Driver Interface PCB Assembly |
| Board Function | Stepper-drive interface |
| Equipment Application | Semiconductor manufacturing equipment |
| Known Platform Association | LAM Research 2300 Metal Systems |
| PCB Type | Equipment control/interface board |
| Documented Revisions Observed | Rev C, Rev D, Rev F |
| Motor Current Rating | Not reliably verified from public OEM documentation |
| Input Voltage | Not reliably verified from public OEM documentation |
| Output Voltage | Not reliably verified from public OEM documentation |
| Number of Axes | Not reliably verified from public OEM documentation |
| Communication Protocol | Not reliably verified from public OEM documentation |
| Connector Pinout | Tool-specific documentation required |
| Installation | Internal semiconductor-equipment PCB assembly |
The absence of published electrical ratings is intentional. Available public sources identify the board’s function and platform association but do not provide a sufficiently authoritative specification sheet for the detailed electrical parameters.
Major Features / Practical Advantages
Equipment-level stepper interface
The defining function of the 810-801237-001 is its role as a stepper-driver interface board. It should be viewed as one element in the motion-control chain of the semiconductor tool rather than as a complete stepper controller.
That distinction matters during troubleshooting. A board failure can appear as a motion-axis problem, but replacing the interface PCB without checking the associated driver, cabling, motor, feedback arrangement, and host controller can simply move the diagnostic problem elsewhere.
810-801237-001
LAM Research 2300 platform association
One equipment-spares source specifically identifies the 810-801237-001 as being found on LAM Research 2300 Metal Systems.
For a maintenance engineer, this is useful because the host equipment should be treated as part of the compatibility specification. The same base part number should not automatically be assumed compatible with every LAM Research tool that happens to use stepper-drive electronics.
Multiple hardware revisions
Public records show the part number with at least Rev C, Rev D, and Rev F examples.
When ordering a replacement, compare:
- PCB revision marking
- OEM part number
- Connector layout
- Component population
- Daughterboard configuration, if present
- Cable/termination arrangement
- Host-tool configuration
A later revision may be functionally compatible, but that should be demonstrated from LAM Research equipment documentation rather than assumed from the revision letter.
PCB assembly format
The component is consistently identified as a printed circuit board / PCB assembly. It is therefore important to distinguish a complete functional board from an item sold merely as a damaged or parts-only PCB. Public records include examples explicitly described as damaged, burnt, untested, or parts-only.
For production-tool maintenance, “same part number” and “ready for installation” are not equivalent statements.
Legacy equipment maintenance value
The 810-801237-001 remains relevant primarily as a maintenance spare for installed semiconductor equipment. Public records show the part being tracked for more than a decade, with listings covering multiple board revisions.
That makes condition and traceability particularly important. A board that has been stored for years can require inspection even when it has never been installed.
No unsupported electrical claims
There is a practical reason not to publish invented current or voltage ratings for this part. Unlike a standard PLC module, the 810-801237-001 is an equipment-specific PCB, and its public documentation is sparse. The correct engineering approach is to use the host-tool schematic or service manual for connector-level electrical information.
Related Products
- 810-801237-021 — Another LAM Research Stepper Driver Interface part number in the same broader part-number family. Compatibility with 810-801237-001 should be verified rather than assumed.
- 710-801237-001 — Related LAM Research part number associated with the 810-801237-001 family in equipment-spare records. Exact interchangeability requires tool documentation.
- 810-801237-005 — Related 810-801237 family part number; verify revision and host-tool application before substitution.
- 810-801237-011 — Related interface-board part number appearing in the same documented family.
- 810-801237-022 — Related LAM Research part number; should not be treated as a drop-in replacement without equipment-level confirmation.
- 810-801237-101 — Related assembly identifier in the same family. Revision and tool compatibility should be checked.
- 810-801237-121 — Another related LAM Research part number recorded with the 810-801237 family.
- 810-801237-500 — Related part number requiring equipment-specific compatibility verification.
FAQ
What is the LAM Research 810-801237-001?
It is a Stepper Driver Interface PCB assembly used in LAM Research semiconductor manufacturing equipment. A documented equipment-spares source specifically associates it with LAM Research 2300 Metal Systems.
Is the 810-801237-001 a PLC module?
No. It is an equipment-level PCB assembly rather than a conventional PLC/DCS I/O module. Treating it as a generic automation card can lead to incorrect assumptions about voltage, protocol, I/O count, and installation.
What equipment uses the 810-801237-001?
Public documentation identifies the board with LAM Research 2300 Metal Systems. The exact tool configuration should still be confirmed from the equipment serial number and service documentation before replacement.
Can I use a Rev D board to replace a Rev C board?
Do not assume that it is a direct replacement solely because the base part number is identical. Public records confirm that Rev C and Rev D versions exist, along with Rev F examples. The host-tool documentation should establish revision compatibility before installation.
Can I hot-swap this PCB?
No blanket hot-swap claim should be made for the 810-801237-001. This is an internal semiconductor-equipment PCB rather than a standardized hot-swappable PLC module. Follow the LAM Research tool’s approved shutdown, isolation, ESD, and board-replacement procedure.
Does the 810-801237-001 directly drive the stepper motor?
The reliable public identification is Stepper Driver Interface. It should not automatically be described as the complete stepper motor power amplifier or drive. The exact division of control and power functions depends on the host-tool architecture.
What is the operating voltage?
A reliable OEM public specification for the board’s supply voltage was not located. The voltage should be taken from the applicable LAM Research equipment schematic or service documentation rather than estimated from generic stepper-drive specifications.
Does it support a particular firmware version?
The 810-801237-001 part number alone does not establish a firmware revision. If the board contains programmable devices, verify firmware/configuration compatibility against the host tool before installation.
Is a parts-only 810-801237-001 suitable as a production spare?
No—not without repair and functional verification. Public records include examples explicitly sold as damaged, burnt, untested, or parts-only.
What should procurement verify before buying?
At minimum:
- Exact part number: 810-801237-001
- PCB revision
- Host LAM Research tool and configuration
- Connector and cable arrangement
- Physical board condition
- ESD/contamination handling history
- Functional test evidence
- Whether the board is complete or missing daughterboards/components
- Whether the supplied board has been repaired or reworked
- Compatibility confirmation from the applicable equipment documentation
Procurement Note
For the LAM Research 810-801237-001, revision and equipment compatibility should take priority over generic claims such as “compatible with all LAM systems.” Public evidence establishes the board as a Stepper Driver Interface PCB and associates it with LAM Research 2300 Metal Systems, but the detailed electrical specification is not sufficiently documented in publicly accessible sources to justify inventing a universal voltage, current, axis count, or communication protocol.
The revision issue deserves particular attention. Public records show Rev C, Rev D, and Rev F examples under the same base part number. Before purchasing, request a photograph of the actual PCB identification label and revision marking.
For a production tool, I would also separate new/unused, tested refurbished, used, and parts-only inventory in the procurement record. The market contains examples explicitly identified as damaged or untested, so a matching label alone is not evidence that the board is ready for installation.
The safest replacement specification is therefore: LAM Research 810-801237-001 + confirmed PCB revision + confirmed host-tool compatibility + documented functional condition.
