Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 810-069751-114 |
| Manufacturer | LAM Research |
| Product Type | RF/DC Interface PCBA |
| Application | Semiconductor plasma processing equipment |
| Equipment Platforms | Lam 2300 series, Flex, Kiyo, Versys (configuration dependent) |
| Board Function | RF power interface, control signal distribution, feedback monitoring |
| Power Supply | 24 VDC system supply |
| Communication Architecture | VME-based equipment interface |
| Board Form Factor | Plug-in control PCB assembly |
| Node Identification | Node Type 411 (reported configuration dependent) |
| Field Application | Plasma etch chamber control systems |
| Operating Environment | Semiconductor manufacturing equipment cabinet |
| Handling Requirement | ESD-controlled environment required |
| Replacement Considerations | Hardware revision and system configuration verification required |
Product Introduction
LAM Research 810-069751-114 Product Introduction
LAM Research 810-069751-114 is an RF/DC interface printed circuit board assembly used in semiconductor manufacturing equipment control architectures. The module provides communication and signal handling between the equipment controller and RF/DC power-related subsystems during plasma processing operations.
The primary value of LAM Research 810-069751-114 is maintaining installed Lam process equipment where replacing a single control board is more practical than modifying a validated chamber control configuration. Before installation, confirm machine model, board revision, software compatibility, and RF interface settings.

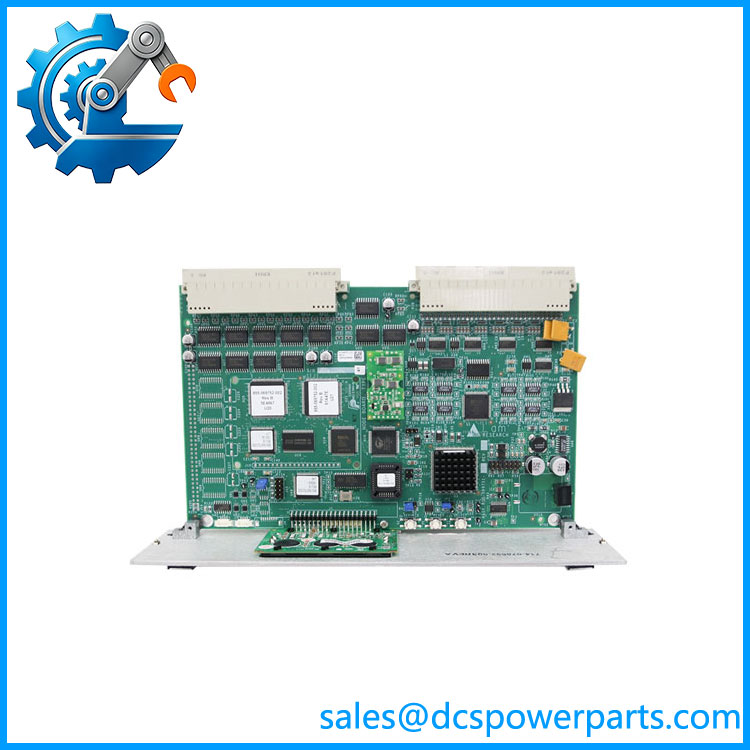

810-069751-114
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A plasma etch chamber fails to start a process recipe even though the vacuum system, gas delivery, and motion systems appear normal. The fault is often somewhere in the RF control chain: command transmission, power feedback, interlock handling, or communication between control boards.
The 810-069751-114 sits in a critical signal path. A board swap without configuration verification can create new faults instead of removing the original one.
Typical Applications
- Semiconductor Etching – RF power interface control for wafer plasma etch chambers.
- Advanced Semiconductor Manufacturing – Process chamber control systems requiring stable RF communication and feedback monitoring.
- MEMS Fabrication – Plasma-based material removal and surface processing equipment.
- Research Semiconductor Equipment – Legacy Lam platforms used for process development and laboratory production.
Technical Pitfalls to Avoid
- Verify Equipment Compatibility First
Lam Research boards are highly platform-specific. Confirm the chamber type, controller architecture, and existing board revision before replacement. - Follow Strict ESD Procedures
Semiconductor equipment control boards contain sensitive electronic components. Improper handling can create intermittent failures that are difficult to diagnose. - Check RF System Parameters After Installation
The board may restore communication, but RF calibration, interlock status, and process parameters should be verified before returning the chamber to production.
Related Products
- LAM 810-069751-114 RF/DC Interface Board
Main replacement board for compatible Lam semiconductor equipment platforms. Used for RF power interface and process control signal handling. - LAM 810-072907-005
VME communication and clock controller board used in related Lam control architectures. Supports system communication timing and coordination functions. - LAM 810-046015-010
VIOP interface module used for equipment-level input/output communication and signal exchange. - LAM 810-066590-004
Backplane-related hardware used in legacy Lam controller assemblies. Supports module interconnection inside the control chassis. - LAM 810-099175-012
Analog I/O interface hardware used for process signal acquisition and equipment monitoring applications. - LAM 810-001489 Series
Related interface and control boards used across Lam semiconductor processing equipment families. - LAM 2300 Series Etch Platforms
Semiconductor process equipment family where RF/DC control boards are integrated into chamber control systems. - LAM Kiyo / Flex / Versys Platforms
Advanced process equipment platforms using similar control architectures, with compatibility depending on installed configuration.
