Lam Research 685-151520-102 | MC4X HDD Controller Assembly

Description

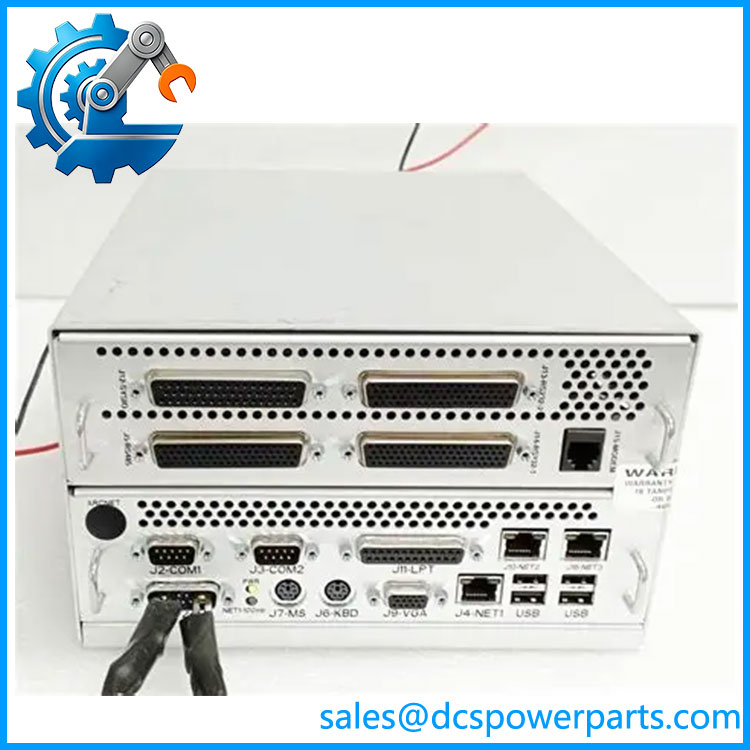

Lam Research 685-151520-102 MC4X Controller

Product Introduction

A failed equipment controller can stop an entire semiconductor process tool even when the individual field I/O boards remain healthy. Lam Research 685-151520-102 is identified in multiple independent equipment-spare records as an MC4/MC4X controller assembly, with descriptions specifically identifying it as an Ethernet/I/O top tray with HDD. It is therefore better treated as an equipment-specific computing and control assembly rather than a generic PLC CPU or ordinary industrial PC.

The procurement issue is compatibility. Service records identify 685-151520-102 specifically as a Lam Research MC4 controller, while another specialist repair source lists it for MC4X controller overhaul. A related repair listing also distinguishes 685-151520-102 from the 685-151520-101 MC4 controller. That distinction matters when replacing hardware in an installed tool: matching the part number alone may not establish firmware, storage, or equipment-level compatibility.

Key Technical Specifications

The Ethernet, I/O top-tray, and HDD characteristics are specifically reflected in independent equipment-part descriptions.

I would not treat commonly published figures such as 24 VDC input, 0–55°C operating temperature, IP20, specific processor type, maximum current, or exact dimensions as confirmed specifications for this part number. Available listings disagree on several of these values, and I did not find a sufficiently authoritative Lam Research source to resolve the discrepancies.

Application Scenarios & Field Considerations

MC4 / Controller Replacement

The primary use case is replacement or service of an existing Lam Research MC4/ controller assembly. A specialist semiconductor-equipment service provider explicitly lists 685-151520-102 for MC4 controller refurbishment, while another repair specialist identifies it as an controller overhaul item.

685-151520-102

Ethernet and Equipment I/O Interface

The part is repeatedly described as an Ethernet, I/O top-tray controller assembly. That makes it part of the equipment’s internal computing and communications architecture rather than a conventional standalone PLC I/O module.

Semiconductor Equipment Maintenance

For fabs maintaining older Lam Research equipment, the 685-151520-102 can become a critical spare when the installed controller fails. In this situation, the useful comparison is not simply CPU performance. Storage configuration, firmware/software environment, interface arrangement, and the exact tool configuration can determine whether a replacement unit can actually be commissioned.

Controller Refurbishment

The part is also represented in the repair market as a controller refurbishment item rather than only as a new spare. This is significant for procurement because “refurbished,” “rebuilt,” and “used working” can describe materially different inspection levels. One service supplier specifically lists the unit for service rebuild, while another inventory listing identifies a used-working condition.

Related Products

• 685-151520-101 — related Lam Research MC4 controller part number; do not assume it is a drop-in substitute for 685-151520-102 without tool-level verification.
• 826-151520-001 — identified by one equipment-spare listing as an internal HDD associated with the controller configuration. Verify the exact storage assembly before substitution.
• 685-092593-001 — listed in secondary equipment references as a related robot controller.
• 810-031325-006 — listed as a related expansion/control unit in secondary equipment references.
• 778-900046-403 — listed as an I/O interface board associated with the MC4 controller family.

The last three relationships are based on secondary equipment-part listings rather than a public Lam Research compatibility matrix, so they should be treated as reference points rather than guaranteed substitutes.

Engineer’s Guide — Field Pitfalls to Avoid

1. Do not substitute by mechanical appearance.
The 685-151520-102 is an equipment-specific controller assembly. A generic industrial computer with Ethernet and I/O may look suitable on paper but does not establish compatibility with the Lam Research equipment software environment.

2. Distinguish 685-151520-102 from 685-151520-101.
Both are identified in service and inventory databases as MC4 controllers, but the part numbers are distinct. Treat the suffix difference as meaningful until the installed tool documentation confirms interchangeability.

3. Check the storage configuration.
The 685-151520-102 is repeatedly described as an Ethernet/I/O top tray with HDD. If the replacement unit has a different storage device, image, or revision, the controller may not behave like the original assembly.

4. Inspect the actual controller before installation.
For a used or refurbished unit, inspect connectors, internal storage, cooling hardware, labels, boards, and revision markings. “Used working” is an inventory description, not proof that the assembly is equivalent to a tested production spare.

5. Do not rely on generic published electrical specifications.
Several secondary listings give different input-voltage, temperature, current, dimensions, and protection specifications. Until the equipment-specific documentation or physical nameplate confirms them, these numbers should not be used for engineering acceptance.

6. Record the tool association before ordering.
For a production-critical spare, capture the installed controller’s complete label, hardware revision, storage configuration, and the Lam Research tool model/software environment. This is more useful than simply recording “MC4 controller.”

FAQ

What is Lam Research 685-151520-102?

It is an MC4/ controller assembly used in Lam Research semiconductor equipment. Independent equipment-part records describe it as an controller and as an Ethernet/I/O top-tray computer with HDD.

Is 685-151520-102 a PLC module?

Not in the conventional sense. Available records identify it as a complete MC4/ controller or industrial computer assembly, rather than a standard PLC CPU or discrete I/O module. It forms part of the control and computing architecture of semiconductor processing equipment.

What does the designation mean?

The available specialist service records associate 685-151520-102 with the controller family. One repair listing specifically calls it “ Controller Overhaul,” while another describes it as an controller with Ethernet.

Does 685-151520-102 include an HDD?

Equipment-spare listings specifically describe the configuration as “COMPUTER, , ETHERNET, I/O TOP TRAY, HDD.” Another listing associates an internal HDD assembly, 826-151520-001, with the controller. Verify the physical storage configuration of the unit being purchased rather than assuming every 685-151520-102 inventory item is identically configured.

Can 685-151520-101 replace 685-151520-102?

Do not assume so. The two part numbers are separately listed as MC4 controller products, and the 102 version is specifically described as the Ethernet/I/O top-tray HDD configuration. Interchangeability should be established from the exact Lam Research tool configuration and controller revision.

What should procurement verify before buying this controller?

Verify the complete 685-151520-102 part number, hardware revision, MC4/ designation, Ethernet/I/O configuration, HDD/storage configuration, physical condition, and the target Lam Research tool configuration. For a refurbished unit, request evidence of functional testing rather than accepting “tested” as an unexplained condition label.

Is 685-151520-102 new, used, or refurbished?

The part number itself does not establish condition. Current listings show different supply conditions: one specialist source offers it for service rebuild, while another inventory listing describes a used-working unit. Condition therefore needs to be confirmed for the specific unit offered.
