GE IS210BPPCH1AD Product Description
Product Overview
GE IS210BPPCH1AD is an I/O Pack Processor Board (BPPC) designed for the GE Mark VIe turbine control system. It serves as the processing and communication core within compatible Mark VIe I/O pack assemblies, handling local I/O processing and communication with the turbine control system.
The board is used in GE Speedtronic Mark VIe control architectures for turbine applications and is associated with gas, steam, and wind turbine control systems. It is not a standalone controller and should be considered a processor PCB within an I/O pack assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS210BPPCH1AD |
| Functional Acronym | BPPC |
| Product Type | I/O Pack Processor Board |
| System | GE Mark VIe |
| Board Type | IS210 Special Assembly |
| Mark VIe Group | Group 1 |
| PCB Construction | Double-sided SMT |
| Communication | 2 × Ethernet ports |
| Mounting | Standoff / carrier-board mounting |
| PCB Coating | Conformal coating |
| Application | Turbine control I/O processing |
| Typical Turbine Applications | Gas, steam and wind turbines |
The BPPC family is identified as an I/O-pack processor board, and the H1-series boards are associated with Mark VIe I/O packs.
Main Features
I/O Pack Processing
The IS210BPPCH1AD provides local processing for compatible I/O pack assemblies. It processes signals associated with the I/O subsystem and communicates processed information to the higher-level Mark VIe control architecture.
Dual Ethernet Interfaces
The board incorporates two Ethernet ports, supporting communication between the I/O pack and the turbine control network. This is an important feature of the BPPC architecture for high-speed industrial control communication.

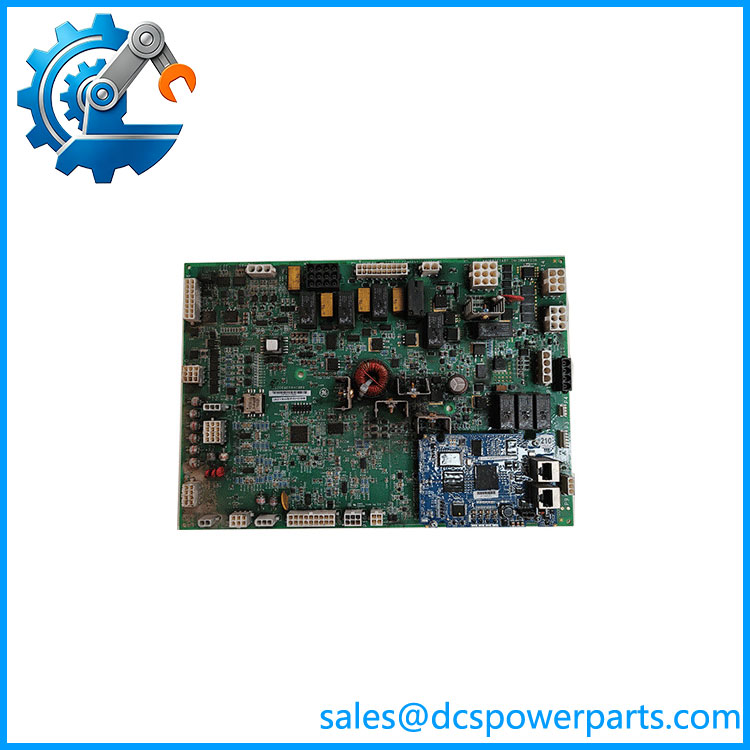

IS210BPPCH1AD
Compact Double-Sided PCB
The board uses a double-sided surface-mount design, with electronic components distributed across both sides of the PCB. This provides a compact form factor suitable for installation inside Mark VIe I/O pack assemblies.
Conformal Coating
The IS210BPPCH1AD uses a conformal-coated PCB, providing additional protection for the electronics against moisture, contamination and other environmental influences encountered in industrial turbine-control installations.
Mark VIe Integration
The BPPC board is designed specifically for Mark VIe I/O packs. Available technical references indicate that BPPC boards are upgraded versions of earlier BPPB I/O-pack processor boards and are used with newer Mark VIe control-system software/hardware architectures.
Application Fields
Gas Turbine Control
The IS210BPPCH1AD can be used within GE Mark VIe I/O packs associated with gas-turbine monitoring and control, supporting communication and processing between field I/O and the turbine controller.
Steam Turbine Control
In steam-turbine installations, the board can form part of the distributed I/O processing architecture used to monitor sensors and control actuators.
Wind Turbine Systems
The Mark VIe platform is also used in wind-turbine control applications, where distributed I/O processing and Ethernet communication are required.
Power Generation
The board is particularly relevant to power-generation facilities maintaining existing GE Speedtronic Mark VIe turbine control systems, where replacement of individual I/O-pack processor boards can help restore system availability without replacing the complete control architecture.
Important Compatibility Information
The IS210BPPCH1AD should not automatically be treated as interchangeable with every BPPC/BPPB board. The exact I/O pack assembly, hardware revision, firmware/software compatibility and control-system configuration should be checked before replacement.
In particular, available technical references indicate that BPPC boards are intended for Mark VIe and are not designed for Mark VIeS safety systems.
The final H1AD revision designation is also important when sourcing a replacement. Related BPPC boards exist with different revisions and functional configurations.
Related Products
- GE IS210BPPCH1A — BPPC I/O Pack Processor Board family.
- GE IS210BPPCH1AE — related revision of the BPPC board.
- GE IS210BPPCH2AD — related BPPC hardware variant.
- GE IS210BPPBH1B — earlier BPPB processor-board family.
- GE Mark VIe I/O Packs — distributed I/O assemblies incorporating processor and field-I/O functions.
