Description
The part number IS210BPPCH1AC refers to an I/O pack processor board manufactured by General Electric (GE) for their turbine control platforms.
Product Overview
-
Manufacturer: General Electric (GE) / GE Energy
-
Part Number / Model: IS210BPPCH1AC (often referred to as BPPC)
-
Component Type: I/O Pack Processor Board / Terminal Board Processor
-
Platform: GE Mark VIe / Mark VIeS Speedtronic Distributed Control System (DCS)
Key Specifications & Features
-
System Role: Functions as an I/O pack processor board within the Mark VIe Speedtronic system (frequently operating in conjunction with terminal boards like the UCPA).
-
Design & Compatibility: Represents an updated component version succeeding older input/output block processor variations (such as the BPPB series), delivering enhanced processing power and modernized hardware features.
-
Functionality: Manages data acquisition, signal processing, and communication between field sensors/actuators and the main controller (such as the UCCH controller) over the high-speed Mark VIe Ethernet network.
Industrial Deployment
-
Applications: Deployed extensively in power generation, gas and steam turbine management, and heavy compressor control stations utilizing the GE Mark VIe control architecture.

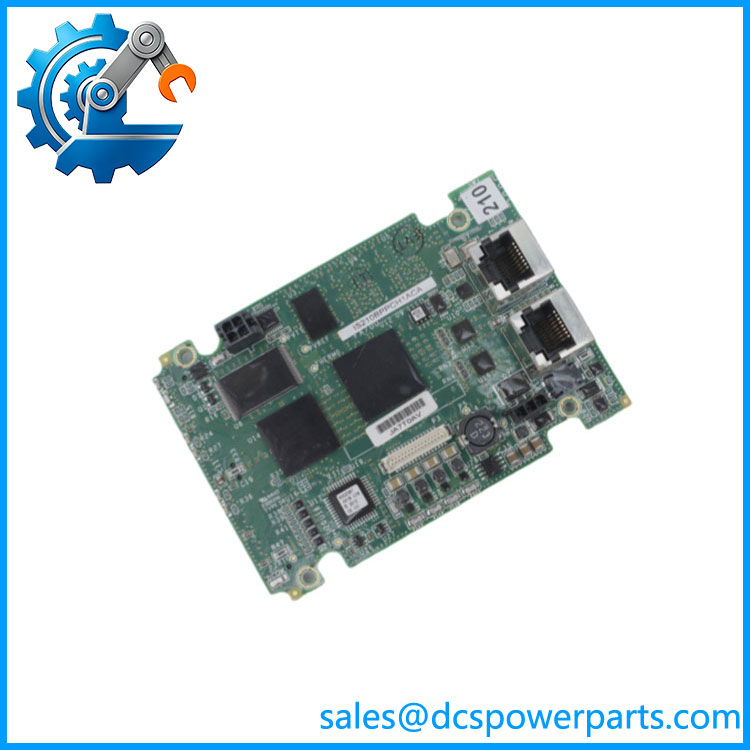

IS210BPPCH1AC
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | IS210BPPCH1AC |
| Module Type | I/O Pack Processor Daughterboard |
| Manufacturer | GE Vernova (General Electric) |
| Applicable Platform | Mark VIe Speedtronic Turbine Control System (UCPA I/O Pack) |
| Core Function | Local I/O signal processing, channel self-diagnosis, IONet communication, data forwarding to main controller |
| Interfaces | Dual 10/100 Mbps Ethernet ports for IONet, internal pack bus connector |
| Power Supply | 12 VDC supplied by UCPA base pack |
| Configuration Software | ToolboxST |
| Status Indicators | Run LED, fault diagnostic LED on front panel |
| Mounting Form | Daughter board installed inside UCPA I/O housing |
| Operating Temperature | -20℃ ~ +70℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet internal installation) |
| Spare Part Status | Original production discontinued; new surplus and refurbished modules available |
Key Features
- Localized signal preprocessing reduces data transmission burden for central universal controllers
- Dual Ethernet IONet interfaces support redundant network communication to avoid single link failure
- Continuous channel self-diagnosis function quickly detects open circuit, short circuit and module abnormalities
- Supports simplex, duplex and TMR triple redundant control architecture matching Mark VIe system
- Front panel LED indicators enable intuitive on-site status inspection and fault troubleshooting
- Compact daughterboard structure perfectly fits UCPA series remote I/O mechanical layout
- Industrial-grade PCB layout with anti-vibration and excellent EMC performance for turbine site environments
- Different hardware revisions cannot be directly interchanged; full part number and firmware verification required before replacement
- Enables distributed I/O architecture to extend signal acquisition coverage and simplify field wiring layout
