Description

The IS200TRLYH1BHH (often associated with base part number IS200TRLYH1B) is a Relay Output Terminal Board manufactured by General Electric (GE). It is predominantly used within the Mark VI and Mark VIe turbine and industrial control systems.

Key Technical Features

• Primary Function: Receives control signals to switch external electrical circuits, operating solenoids, protection alarms, and emergency shutdown mechanisms.

• Relay Configuration: Equipped with 12 plug-in electromagnetic relays.

  • Relays 1–6 can be jumper-configured to drive external solenoid valves or act as dry Form-C contact outputs.

  • Relays 7–11 function as unpowered, isolated Form-C contacts.

  • Relay 12 is designated for specialized isolated applications (such as ignition transformers).

• Power Supply Adaptability: Supports standard field solenoid power sources including 125V DC, 115/230V AC, and optional 24V DC configurations with jumper-selectable individual fuses and on-board suppression (MOV).

• System Compatibility: Supports both Simplex and Triple Modular Redundancy (TMR) control architectures (utilizing specific plug connections like JA1 for simplex, or JR1, JS1, and JT1 for TMR).

• Terminals: Features dual terminal blocks containing a total of 48 numbered metal screw terminals for secure field wiring connections.

Applications

• Gas and steam turbine power generation controls

• Heavy industrial automation and safety shutdown systems

• Actuator, valve, and auxiliary control device management



  IS200TRLYH1BHH

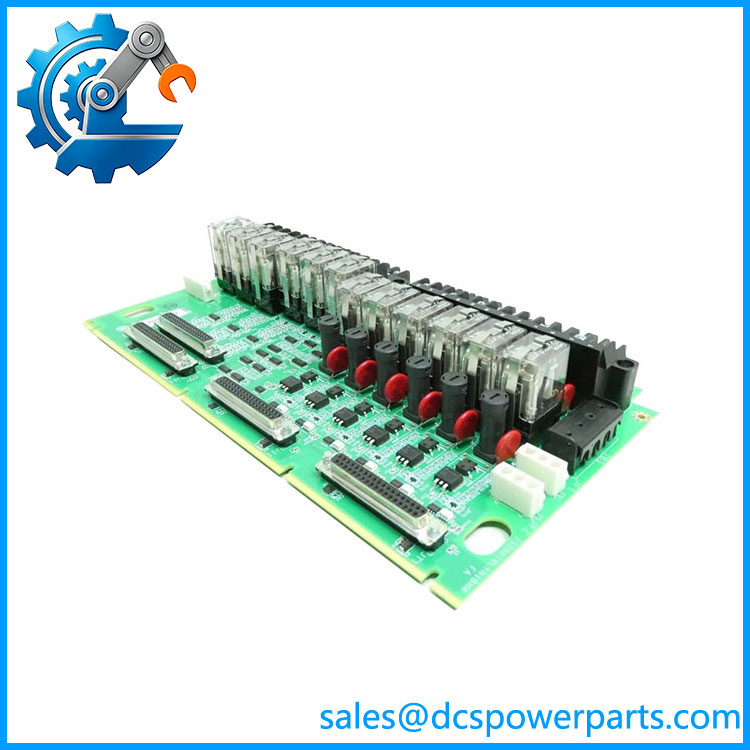

GE IS200TRLYH1BHH Relay Output Terminal Board Product Description

Product Overview

GE IS200TRLYH1BHH is a Relay Output Terminal Board designed for GE Mark VI and Mark VIe Speedtronic turbine control systems. As a dedicated relay interface terminal board, GE IS200TRLYH1BHH provides discrete output switching, relay isolation, field device control, and signal termination functions between GE turbine controllers and external electrical equipment. The module is part of the TRLY relay output family and is primarily used for controlling solenoids, valves, ignition equipment, alarms, shutdown circuits, and other critical turbine auxiliary devices.

The GE IS200TRLYH1BHH belongs to the GE Mark VI control platform hardware family and is a TRLY1B Relay Output Terminal Board with coil sensing capability. Within the turbine control architecture, GE IS200TRLYH1BHH acts as the field interface layer between PDOA/YDOA I/O packs and external loads, converting controller commands into reliable relay switching signals. The board integrates twelve plug-in magnetic relays, relay drive monitoring circuits, surge suppression components, and barrier terminal interfaces to support high-availability industrial control applications.

Designed for demanding power generation environments, GE IS200TRLYH1BHH features a robust industrial PCB structure with sealed mechanical relays, MOV suppression protection, and dedicated feedback monitoring functions. The board supports both Simplex and TMR (Triple Modular Redundant) GE turbine control configurations, making it suitable for applications requiring high reliability and fault-tolerant operation. As an important spare component for existing GE Speedtronic systems, GE IS200TRLYH1BHH helps operators maintain turbine availability and extend the lifecycle of installed automation platforms.

Technical Specifications

Main Features and Advantages

Reliable relay output control:

The primary function of GE IS200TRLYH1BHH is to provide dependable relay output control for GE turbine automation systems. Turbine control applications require precise and reliable switching of external devices such as fuel valves, hydraulic solenoids, breakers, ignition systems, and auxiliary motors. GE IS200TRLYH1BHH provides electrical isolation between controller outputs and field devices, improving system safety and operational stability.

Advanced coil sensing and diagnostic capability:

A key feature of GE IS200TRLYH1BHH is its integrated relay coil sensing function. The board monitors relay excitation status and helps detect conditions such as relay coil failure, loss of drive current, or communication interruption. This diagnostic capability allows maintenance personnel to identify faults quickly and reduces troubleshooting time in critical turbine applications.

Flexible relay configuration:

GE IS200TRLYH1BHH includes twelve plug-in magnetic relays that provide flexible output control options. Several relay channels can be configured for solenoid drive applications or dry Form-C contact outputs, allowing engineers to adapt the board for different turbine package requirements.

High reliability Mark VI system integration:

Designed for GE Mark VI and Mark VIe platforms, GE IS200TRLYH1BHH provides seamless compatibility with GE turbine control architectures. The board connects directly with PDOA/YDOA I/O packs through dedicated connectors, supporting both Simplex and TMR control structures.

Industrial electrical protection:

Power generation environments often experience switching surges, electrical noise, and transient disturbances. GE IS200TRLYH1BHH incorporates MOV suppression and relay isolation technology to protect connected circuits and improve long-term system reliability.

Efficient maintenance design:

The plug-in relay structure of GE IS200TRLYH1BHH simplifies replacement and inspection procedures. Individual relay components and clearly arranged terminal interfaces allow technicians to perform maintenance efficiently during planned turbine outages.

Support for redundant control architectures:

Modern turbine systems require high availability and fault tolerance. GE IS200TRLYH1BHH supports GE TMR control configurations, helping maintain continuous turbine operation even when individual control components experience faults.

Long lifecycle support:

Many GE Mark VI and Mark VIe turbine systems remain operational worldwide. GE IS200TRLYH1BHH provides a reliable replacement solution for maintaining existing turbine automation systems without requiring complete control system modernization.

Application Areas

Gas Turbine Control Systems:

GE IS200TRLYH1BHH is widely used in gas turbine control applications where reliable relay outputs are required for controlling fuel systems, valves, ignition equipment, and protection circuits. It provides stable field-level switching within GE Speedtronic turbine architectures.

Steam Turbine Automation:

Steam turbine systems require accurate control of auxiliary equipment and protection devices. GE IS200TRLYH1BHH provides relay output functions for actuators, alarms, shutdown circuits, and mechanical control systems.

Combined Cycle Power Plants:

Combined-cycle plants require coordinated operation between multiple turbine and balance-of-plant systems. GE IS200TRLYH1BHH supports reliable output control for distributed turbine automation networks.

Generator Protection and Auxiliary Systems:

Generators depend on reliable control of breakers, cooling systems, lubrication systems, and protection devices. GE IS200TRLYH1BHH provides isolated relay outputs for these critical auxiliary applications.

Oil and Gas Turbine Applications:

Gas turbines used for compressor drives and industrial processes require highly reliable control hardware. GE IS200TRLYH1BHH supports field device switching and monitoring in demanding oil and gas environments.

Turbine Retrofit and Maintenance Projects:

For existing GE Mark VI installations, GE IS200TRLYH1BHH is commonly used as a replacement relay terminal board. It helps restore original system functionality while reducing downtime and maintenance costs.
