IMA F7533 | Safety System Bus Coupler Module for Industrial SIS Applications

Description

Key Technical Specifications

Product Introduction

HIMA F7533 Product Introduction

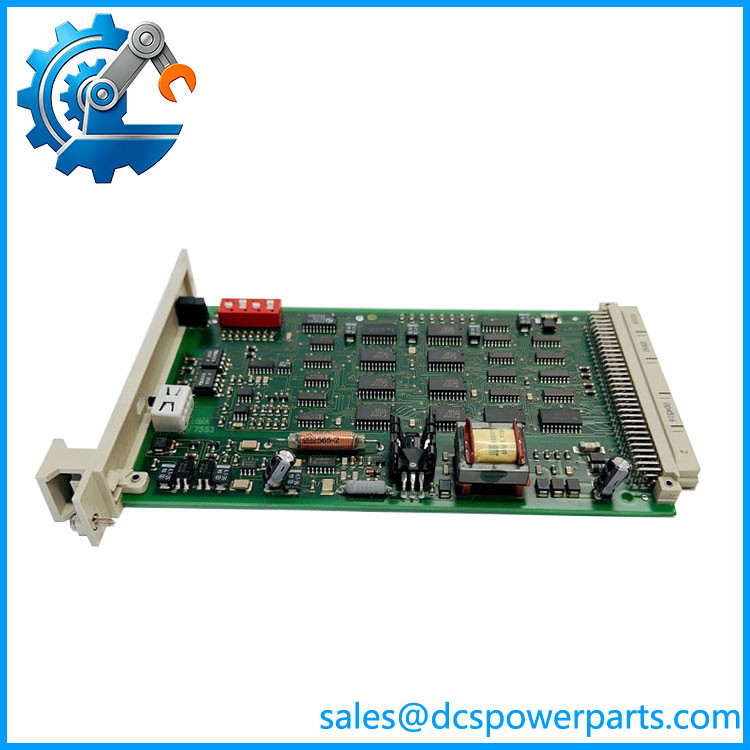

HIMA F7533 is a coupling module designed for HIMA HIQuad safety controller platforms. The module provides interface and signal exchange functions between safety system components, supporting communication paths required for programmable electronic safety system operation.

The HIMA F7533 is mainly maintained in existing HIMA safety installations where the original controller architecture must remain unchanged. It is not a standalone safety controller; correct operation depends on the complete rack configuration, connected modules, engineering database, and system communication settings.

F7533

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A process plant experiences a safety controller communication fault during operation. The central processor reports an interface error, but the CPU and field I/O modules appear normal.

This is a common situation in older SIS installations. Interface modules often sit between major system sections, making them easy to overlook during troubleshooting. A communication path failure can stop a safety system from reaching a healthy operating state even when individual modules appear functional.

Typical Applications

• Oil & Gas – Safety instrumented systems connecting emergency shutdown logic, process protection, and remote safety cabinets.
• Chemical Processing – Reactor protection, hazardous area monitoring, and process interlock systems.
• Power Generation – Burner management systems, turbine protection, and auxiliary safety controls.
• Industrial Manufacturing – Machine protection systems and high-integrity safety interlocking applications.

Technical Pitfalls to Avoid

1. Confirm System Architecture Before Replacement
   HIMA uses multiple interface and coupling modules across different safety families. Verify the exact rack layout and module position before installation.
2. Check Communication Configuration
   A replacement F7533 may require verification of system parameters, module addressing, and engineering database consistency.
3. Inspect Backplane and Connector Condition
   Communication faults are frequently caused by poor rack connections, oxidation, or mechanical stress on connectors rather than the module electronics itself.

Related Products

• HIMA F7532
  Related coupling/interface module variant. Used for similar system communication functions but may differ in interface configuration.
• HIMA F7131
  Power supply monitoring and system support module used in HIMA safety racks.
• HIMA F8650X
  Central processing module used in HIMA safety controller architectures. Provides execution of safety application logic.
• HIMA F3236
  Safety digital input module for monitoring field contacts, switches, and protective devices.
• HIMA F3330
  Safety digital output module used for controlling shutdown devices, valves, and actuators.
• HIMA F6217
  Safety analog input module for process measurement signals in SIS applications.
• HIMA F8621A
  Communication module used for integration between HIMA safety systems and external control networks.
• HIMA H51q-HRS B5233-2 997205233
  Redundant central rack assembly for H51q safety controller systems.
• HIMA H41q Series Safety Controller
  Earlier HIQuad controller platform using related safety I/O and interface modules.
