Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FTA-T-21 |
| Product Type | Digital Input Field Termination Assembly |
| System Family | Honeywell Fail-Safe Control / Safety Management System |
| Function | Digital input field termination |
| Field Signal | Discrete / digital input |
| Electrical Architecture | Field termination/interface circuitry |
| Application | Safety and process-control systems |
| Installation | System-specific FTA installation |
| Lifecycle | Legacy hardware |
| Documentation Confidence | Moderate; conflicting third-party specifications |
One historical equipment inventory explicitly identifies FTA-T-21 as a “DIGITAL INPUT TERMINAL BOARD” and associates it with the Honeywell Safety Management System Model 1200S.
I would not publish a definitive channel count, input voltage, dimensions, or connector specification without checking the actual nameplate/drawing. Current databases variously report 16, 21, or 24 channels, which is too much disagreement for a safety-system component.
Product Introduction

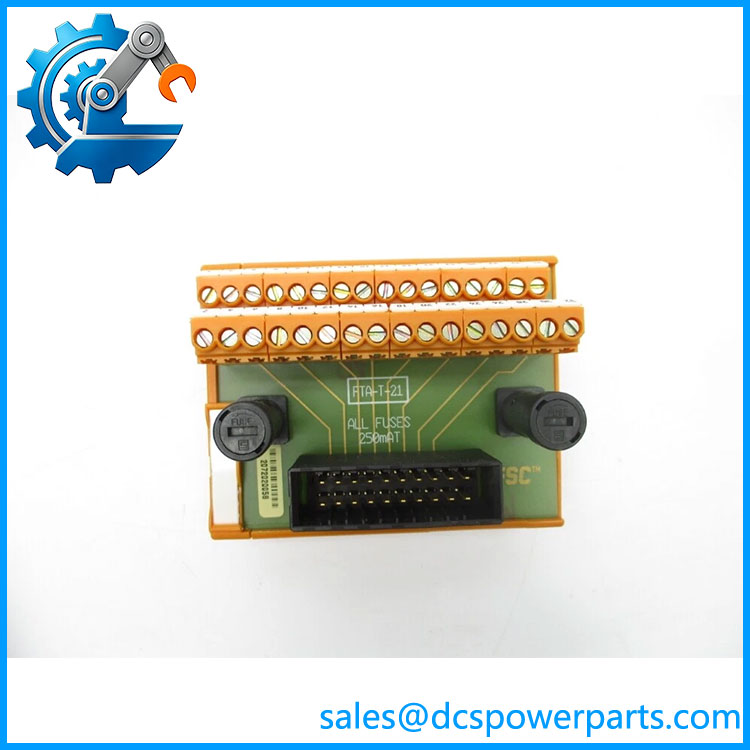

Honeywell FTA-T-21 Digital Input Field Termination Assembly
The Honeywell FTA-T-21 is associated with Honeywell’s legacy Fail-Safe Control / Safety Management System architecture. Its documented role is as a digital-input terminal interface between field wiring and the safety-control system rather than a conventional standalone PLC input card.
That distinction matters during replacement. An FTA provides the physical termination and signal interface expected by the associated controller and I/O architecture. Installing a visually similar terminal assembly with different signal mapping can create wiring and diagnostic problems even when the board physically fits.
FTA-T-21
Application Scenarios & Field Pitfalls
Engineering Pain Point
The main problem with the FTA-T-21 is identification.
Search databases currently describe the same part number as a digital input module, digital output module, 16-channel unit, 21-channel unit, and 24-channel FTA. Those descriptions cannot all be correct.
For a safety-system spare, the system drawing and board identification should take priority over an online catalog description.
Typical Applications
- Honeywell FSC installations: Digital field signal termination within legacy fail-safe control architectures.
- Safety instrumented systems: Interface for discrete field devices associated with protective or shutdown functions.
- Process plants: Field termination for pumps, switches, permissive circuits, and discrete status signals.
- Legacy Honeywell Safety Management Systems: Replacement of an existing FTA-T-21 where the installed system documentation confirms the part number.
Technical Pitfalls to Avoid
- Do not treat as a generic digital I/O card.
Historical documentation identifies it as a digital input terminal board, not the controller’s actual processing module. - Verify the channel count from the cabinet drawing.
Public descriptions conflict substantially. One source reports 16 channels, another 21, and another 24. That is enough reason to reject a replacement based on part number alone. - Check whether the existing installation is FSC/SMS rather than C300.
The strongest historical evidence ties to Honeywell’s Safety Management System. Some current listings incorrectly associate it with unrelated C300 I/O configurations. - Do not substitute an output FTA because the catalog says “.”
At least one current listing describes the exact part number as a digital-output assembly, directly conflicting with historical documentation. For safety applications, that discrepancy is unacceptable without drawing-level verification. - Check field wiring before energizing a replacement.
Compare terminal numbering, common returns, input polarity, fuse arrangements, and cabinet wiring against the approved system drawing. A termination-board mismatch can create multiple channel faults at once.
Related Products
- FTA-T-08 — Honeywell legacy digital-output terminal board; functionally different from the digital-input role.
- FTA-T-09 — Honeywell digital-input terminal assembly; closely related by function but should not be assumed electrically interchangeable with .
- FTA-T-14 — Honeywell analog-input terminal assembly; used for analog signal termination rather than discrete inputs.
- FTA-T-15 — Honeywell power-supply board in the same legacy FTA-T family; power-distribution function rather than field signal termination.
- FTA-T-02 — Honeywell fail-safe output-related FTA; applicable to output circuits rather than the documented input function.
- Honeywell FSC digital input modules — The active electronics that process field inputs; these should be distinguished from the FTA terminal hardware during troubleshooting.
- Honeywell Safety Management System Model 1200S hardware — Historical system family associated with documentation.
Procurement note: Specify Honeywell — Digital Input Terminal Board / Field Termination Assembly and include the system model, cabinet drawing reference, board revision, terminal layout, and existing I/O module part number with the RFQ. I would not approve a replacement solely from an online description claiming “16-channel,” “21-channel,” or “24-channel.” The available documentation is materially inconsistent, and this is exactly the kind of legacy safety-system part where the cabinet drawing should settle the identification.
