Description

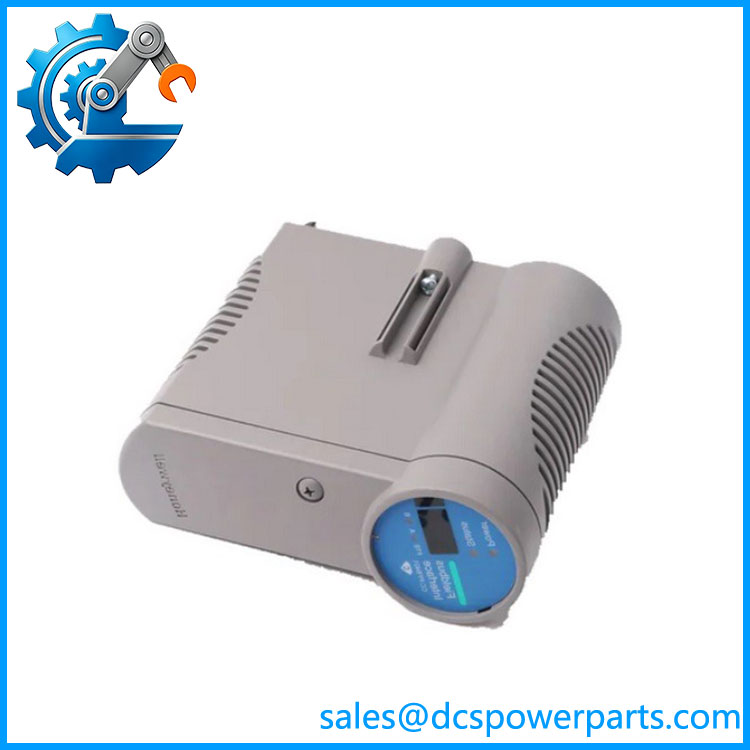

Honeywell CC-PLAIH51 C300 High-Density Analog Input Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CC-PLAIH51 |
| Manufacturer | Honeywell |
| Product Family | C300 / Series C |
| Product Type | High-Density Analog Input Module |
| Number of Channels | 8 |
| Application | Process analog signal acquisition |
| DCS Platform | Experion PKS |
| Controller Platform | C300 |
| I/O Architecture | C300 I/O |
| Termination | Compatible C300 IOTA required |
| Input Range | Verify exact hardware/configuration |
| Input Signal Type | Verify exact configuration |
| Isolation | Verify OEM documentation |
| Accuracy | Verify exact hardware revision |
| Operating Temperature | Verify OEM documentation |
| Power Requirements | Supplied through the C300 I/O architecture; verify installation documentation |
| Firmware | Verify compatibility with installed Experion PKS release |
Available product listings identify CC-PLAIH51 specifically as a Analog Input Module – 8 Channel. This is substantially more useful than reseller pages that describe the same part as a generic PLC processor with ARM CPU, Ethernet, USB, and 4 GB flash; those specifications are inconsistent with its analog-I/O identification.
Product Introduction
The Honeywell CC-PLAIH51 is a -series analog input module intended for acquiring process signals within Honeywell’s distributed control architecture. The available product identification describes it as an 8-channel high-density analog input module, making it part of the I/O layer rather than a standalone controller or general-purpose PLC CPU.
The Honeywell CC-PLAIH51 is used in process-control applications where field analog measurements must be brought into the control environment for monitoring, control algorithms, alarming, trending, and supervisory functions. The exact field signal range, termination arrangement, isolation characteristics, and engineering configuration should be confirmed from the installed module and applicable Honeywell documentation rather than inferred from generic specifications.
CC-PLAIH51
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The CC-PLAIH51 is applicable to process measurement, DCS analog acquisition, plant instrumentation, chemical processing, power generation, refining, and other Experion PKS installations using the architecture. Typical field signals can include transmitters and other analog process measurements, but the actual supported signal type must be verified before connecting field wiring.
The main replacement risk is signal and termination compatibility. An analog input module with the same general form factor is not automatically interchangeable.
Before replacement, verify:
- Channel configuration: Confirm the required eight-channel configuration and the signal type used by each channel.
- IOTA: Match the module with the correct termination assembly and field wiring arrangement.
- Input range: Verify whether the installed application uses the required voltage/current input range before reconnecting field devices.
- Engineering database: Confirm channel assignments, scaling, alarm limits, filtering, and engineering units in the Experion configuration.
- Firmware compatibility: Check the controller and Experion PKS release before introducing replacement hardware.
- Field wiring: Preserve channel-to-channel wiring and polarity; do not assume terminal numbering from another analog module.
- Commissioning: Perform loop checks on every channel rather than relying only on module status diagnostics.
Important Identification Warning
Some online listings describe as a CPU/PLC module and provide unrelated specifications such as an ARM Cortex-A8 processor, 512 MB RAM, 4 GB flash, Ethernet, RS-232, RS-485, and USB. Those claims conflict with the more specific identification of CC- as an 8-channel analog input module and should not be used for engineering procurement.
For a technical BOM, the safer description is:
Honeywell CC- — 8-Channel High-Density Analog Input Module.
Related Products
- Honeywell CC-PAIH01 — analog input hardware; channel count and electrical characteristics must be checked before considering substitution.
- Honeywell CC-PAIH02 — Related analog input module with a different hardware designation.
- Honeywell CC-PAIM01 — analog input family member; verify channel density and field signal compatibility.
- Honeywell CC-PAIX01 — analog input hardware with different configuration characteristics.
- Honeywell CC-TAIN01 — analog termination hardware; termination compatibility must be confirmed with the selected I/O module.
- Honeywell CC-TAIX01 — analog I/O termination hardware.
- Honeywell CC-TDIL01 — digital input termination/I/O hardware serving a different signal type.
- Honeywell CC-PDIL01 — digital input module; not a substitute for analog acquisition.
- Honeywell CC-PDOB01 — digital output module; used for discrete actuation rather than analog measurement.
Procurement note: Specify together with the exact hardware revision, IOTA/termination assembly, field signal type, and Experion PKS/ configuration. For a live DCS replacement, matching only the module name is not enough.
