Honeywell 900R12R-0101 12-Slot I/O Rack
Product Overview
The Honeywell 900R12R-0101 is a 12-slot I/O rack assembly for the Honeywell HC900 Hybrid Controller platform. Unlike an individual analog or digital I/O module, this component provides the physical mounting structure, electrical backplane, and rack-level infrastructure required to install multiple HC900 I/O modules. The 12R designation identifies the 12-slot rack with redundant-power capability, making it suitable for HC900 architectures where loss of a single rack power supply should not immediately remove the entire I/O section from service. Honeywell’s legacy HC900 documentation lists 900R12R-0101 specifically as the 12-slot rack with redundant power.
From an engineering standpoint, the 900R12R-0101 needs to be treated as a system-level mechanical and electrical component, not simply as a cabinet mounting bracket. The rack accommodates the HC900 I/O modules and the associated power/scanner infrastructure. Honeywell documentation describes 8- and 12-slot racks as configurable for reserve power supply and Power Status Module arrangements, while the rack installation instructions specify the physical orientation and airflow requirements.
The model number is also important for legacy replacement work. Honeywell later introduced updated ControlEdge 900 rack numbers for newer hardware generations. The published lifecycle transition identifies 900R12R-0200 as the newer replacement for the older 900R12R-0101, followed by the -0300 generation designed for the newer extended temperature specification. Honeywell stated that the revised hardware was backward compatible and could be used as replacement/spare hardware subject to the applicable system documentation.
Product Introduction
A failed HC900 rack is not an I/O-card problem. When the backplane or rack power infrastructure is compromised, otherwise healthy modules may become unavailable together. The 900R12R-0101 provides twelve I/O module positions and supports redundant power architecture for the legacy platform.
For a legacy replacement, the critical checks are rack generation, controller/CPU compatibility, scanner arrangement, redundant-power hardware, and physical mounting. Do not substitute a newer ControlEdge 900 rack solely because the slot count matches.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 900R12R-0101 |
| Manufacturer | Honeywell |
| Product Family | Hybrid Controller |
| Product Type | I/O Rack Assembly |
| Rack Capacity | 12 I/O slots |
| Power Configuration | Redundant power support |
| Application | controller / I/O expansion architecture |
| Rack Function | Mechanical mounting and electrical backplane for I/O modules |
| Associated Power Status Module | 900PSM-0001 in the legacy architecture |
| Mounting | Panel/rack installation according to Honeywell rack instructions |
| Hardware Generation | Legacy |
| Successor Generation | 900R12R-0200 / later 900R12R-0300 family |
Honeywell’s earlier documentation explicitly identifies 900R12R-0101 as the 12-slot rack with redundant power. Later Honeywell documentation identifies 900R12R-0200 as the revised 12-slot redundant-power rack, while current ControlEdge 900 documentation lists 900R12R-0300.
Exact rack dimensions for the older -0101 ordering code should not be copied from newer -0200/-0300 specifications without checking the hardware revision. Honeywell’s current documentation gives 137 mm H × 683.3 mm W × 151.7 mm D and 5252 g for the 900R12R-0200/-0300 family, which should not automatically be represented as the original -0101 dimensions.
Major Features / Practical Advantages
Twelve I/O module positions
The rack provides 12 I/O positions, allowing a substantial collection of analog, digital, communication, and specialty modules to share one rack assembly. Honeywell’s model-selection documentation identifies the 900R12R as the 12-slot redundant-power version of the I/O rack family.
That capacity matters when expanding an existing controller rather than rebuilding an entire control cabinet. The rack establishes the common backplane and physical arrangement needed for the installed modules.

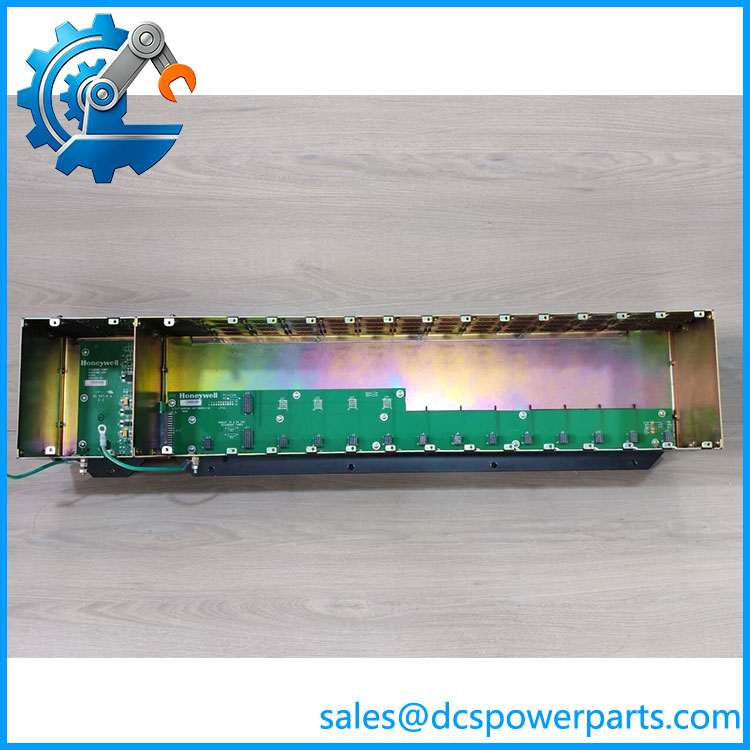

900R12R-0101
Redundant power capability
The defining difference between 900R12R and the standard 900R12 rack is the provision for redundant power. Honeywell’s documentation notes that 8- and 12-slot I/O racks can be equipped with reserve power and a Power Status Module arrangement.
This architecture is intended to maintain rack operation through a single power-supply failure, provided the complete redundant-power configuration has been correctly installed. The rack itself should not be interpreted as containing two complete power supplies; the associated power modules and status hardware remain part of the system configuration.
backplane infrastructure
Individual I/O modules rely on the rack for their electrical interconnection and physical support. That means a rack replacement has a broader impact than replacing one failed I/O card.
When troubleshooting an system with multiple modules offline simultaneously, the rack power path, scanner, backplane connections, and supply status should be checked before assuming that several I/O modules have failed independently.
Compatibility with legacy architecture
The 900R12R-0101 appears in Honeywell’s legacy model-selection documentation alongside C30, C50, C70, C70R controllers, scanners, power supplies, and I/O modules.
This is important for procurement because the platform went through several hardware revisions. A rack from a later ControlEdge 900 generation may look similar and provide the same twelve positions, yet still require confirmation of controller, scanner, power, and configuration compatibility.
Designed for expansion-rack use
Honeywell documentation describes the rack family as usable for controller and I/O expansion applications, with the specific CPU/scanner architecture determining how the rack is configured.
For a remote I/O installation, the scanner module and communications arrangement are particularly important. The rack is infrastructure; it does not independently perform I/O scanning or control logic.
Legacy replacement value
The -0101 version is particularly relevant when maintaining older installations where the existing cabinet was engineered around this hardware generation.
Honeywell’s later lifecycle documentation identifies older hardware as being moved toward phase-out and introduces replacement models. That makes the original part number useful for exact restoration, while newer projects should evaluate the current replacement architecture rather than automatically specifying the obsolete suffix.
Related Products
- 900R12-0101 — Standard 12-slot I/O rack without the redundant-power configuration. It provides the same basic 12-position rack function but differs in power architecture.
- 900R08R-0101 — 8-slot rack with redundant-power support. It is the smaller-capacity member of the same legacy rack family.
- 900R04-0001 — 4-slot legacy rack for smaller installations. It does not provide the twelve-position capacity of the 900R12R.
- 900PSM-0001 — Redundant Power Status Module used with the legacy redundant rack architecture. It provides the rack-level power-status function associated with reserve power configurations.
- 900P01-0001 — 120/240 VAC, 60 W power-supply option documented for the legacy platform.
- 900P02-0001 — 120/240 VAC, 28 W power-supply option for applicable configurations.
- 900P24-0001 — 24 VDC, 60 W power-supply option for the legacy platform.
- 900R12R-0200 — Later 12-slot redundant-power rack introduced as part of Honeywell’s revised hardware generation. It should be evaluated as a potential replacement rather than assumed to be physically identical.
- 900R12R-0300 — Newer ControlEdge 900 12-slot redundant-power rack designed around the revised hardware generation and extended temperature specification.
FAQ
Is 900R12R-0101 an I/O module?
No. It is a 12-slot I/O rack assembly. The rack holds the individual I/O modules and provides their common electrical and mechanical infrastructure.
How many I/O modules can it hold?
The rack provides 12 I/O module positions. Actual usable positions can depend on the installed scanner, power, and redundant-power configuration, so the physical slot layout should be checked against the specific rack installation.
Does 900R12R-0101 include redundant power supplies?
The 900R12R rack is the redundant-power-support version, but the rack should not be interpreted as containing every power component automatically. The legacy architecture uses associated power-supply and Power Status Module components.
Can I replace 900R12R-0101 with 900R12R-0300?
Do not treat that as a simple mechanical swap. Honeywell identifies newer rack generations as backward-compatible replacement hardware, but the controller generation, scanner, power hardware, temperature requirements, and system configuration should be checked before substitution. Honeywell specifically documents the transition from older rack models to revised ControlEdge 900 hardware.
Can I hot-swap an I/O module installed in this rack?
Do not assume that every installation permits unrestricted module removal under power. The applicable installation and replacement procedure should be followed, including any required process-control precautions. The rack’s redundant power capability is not, by itself, proof that every I/O module can be removed without affecting control operation.
Does this rack support C30, C50, and C70 controllers?
The rack family was designed around multiple controller and I/O configurations. However, scanner type and rack role matter. Honeywell’s installation documentation distinguishes controller/rack configurations and identifies specific scanner arrangements for different CPU families.
Does 900R12R-0101 support firmware v3.1?
The rack itself does not establish a firmware revision. Firmware compatibility belongs primarily to the installed controller, scanner, I/O modules, and configuration software. Do not infer a firmware version from 900R12R-0101.
Is 900R12R-0101 still a current Honeywell rack?
It is a legacy model. Honeywell’s published lifecycle information shows the older rack models being transitioned to newer hardware numbers, including 900R12R-0200 and subsequently 900R12R-0300.
What should I check when buying a replacement?
Record the complete rack number, hardware revision, installed CPU/controller, scanner model, power-supply models, Power Status Module, I/O module population, and physical rack condition. For a legacy replacement, photographs of the rack label and both power sections are useful because the same basic rack family exists in multiple hardware generations.
Procurement Note
The Honeywell 900R12R-0101 is infrastructure for an control system, not an independent controller. Its value is in providing twelve I/O positions, backplane connectivity, and support for redundant rack power. Honeywell’s own documentation confirms the legacy model designation and the subsequent transition to newer hardware generations.
For a like-for-like maintenance purchase, specify 900R12R-0101 exactly and verify the physical rack revision. For a system upgrade, compare it against 900R12R-0200/0300 rather than assuming the newer rack is automatically interchangeable.
One procurement trap is worth calling out: several commercial listings combine specifications from different rack generations. Dimensions, operating temperature, and even weight should therefore be tied to the exact hardware suffix being purchased. Honeywell’s current documentation, for example, lists 683.3 × 137 × 151.7 mm and 5.252 kg for the newer 900R12R-0200/-0300 family—not necessarily the original -0101.
