Description
Honeywell 8C-PCNT02 51454363-275 Series 8 C300 Controller Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8C-PCNT02 |
| Part Number | 51454363-275 |
| Manufacturer | Honeywell |
| Product Type | C300 Controller Module |
| Series | Honeywell Series 8 |
| Control Platform | C300 |
| DCS Platform | Experion PKS |
| Control Software Environment | Control Execution Environment (CEE) |
| Engineering Environment | Control Builder |
| Mounting | C300 IOTA |
| Configuration | Application-dependent |
| Hardware Variant | Coated |
| Dimensions | Approx. 25 × 140 × 178 mm, according to secondary product records |
| Weight | Approx. 0.7 kg, according to secondary product records |
Honeywell’s C300 architecture uses the controller as a processing node for the Control Execution Environment, with control strategies configured through Control Builder. The 8C-PCNT02 is identified in multiple product records specifically as the Series 8 C300 Controller rather than an analog or digital I/O module.
Product Introduction
The Honeywell 8C-PCNT02 is a Series 8 controller module used within Honeywell distributed control systems. Its primary role is to execute configured control strategies and associated control functions within the Control Execution Environment. The controller is installed on the appropriate I/O Termination Assembly rather than functioning as a standalone PLC CPU.
The Honeywell 8C-PCNT02 51454363-275 is also identified as a coated version of the Series 8 controller. The coating is relevant when maintaining equipment installed in industrial environments, but it should not be interpreted as proof that the controller is suitable for every hazardous or corrosive location. The complete cabinet, enclosure, environmental rating, and system installation still determine field suitability.

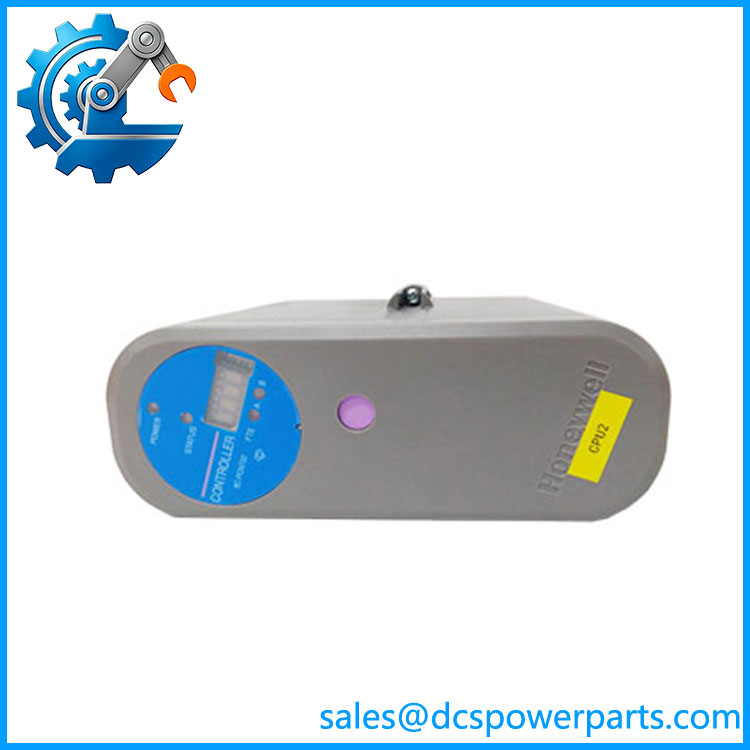

8C-PCNT02 51454363-275
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The 8C-PCNT02 is primarily relevant to Honeywell Experion PKS DCS installations, especially maintenance projects where an existing Series 8 controller must remain compatible with the installed control strategy and I/O architecture. Typical applications include process control, continuous manufacturing, oil and gas processing, chemical plants, power facilities, and other process industries using Honeywell controllers.
The most important issue is configuration compatibility. The 8C- should not be treated as a generic processor simply because it carries a designation.
Before replacement, verify:
- Exact part number: Confirm 8C- / 51454363-275, including the complete hardware identification.
- IOTA compatibility: Confirm the controller is intended for the installed IOTA and Series 8 architecture.
- Firmware baseline: Controller hardware alone does not guarantee compatibility with the existing Experion PKS release or application.
- Control strategy: Preserve and verify the existing configuration before replacing the controller.
- Redundancy architecture: If the installation uses controller redundancy, confirm the replacement matches the required redundant-controller configuration.
- Environmental coating: The coated version should be matched where the installed system specifically requires that hardware treatment.
- Commissioning: After replacement, verify controller health, communication, I/O status, control execution, alarms, and sequence behavior before returning the process to normal operation.
Important Specification Warning
Several commercial listings incorrectly describe as an analog input module, pulse counter, or a generic processor with specifications such as 220VAC input, 100 MHz CPU, 32 MB RAM, or 16 I/O channels. Those claims conflict with the stronger identification of the part as a Series 8 Controller Module and should not be used for procurement or engineering design.
Related Products
- Honeywell 8C-PCNT01 — Series 8 controller variant; exact hardware and system compatibility must be checked before substitution.
- Honeywell 8C-PCNT03 — Related Series 8 controller family member; not automatically interchangeable with the 8C-.
- Honeywell CC-PCNT01 — Earlier/related controller hardware designation.
- Honeywell CC- — Related controller module; verify Series 8 versus earlier C-series architecture.
- Honeywell CC-MCAR01 — carrier/channel assembly rather than a controller processor.
- Honeywell CC-PAIH01 — Series C analog input hardware, serving a different function from the controller.
- Honeywell CC-PAOH01 — Analog output hardware, not a controller replacement.
- Honeywell CC-PDIL01 — Digital input hardware for the C-series/Series 8 I/O architecture.
Procurement note: For a live DCS replacement, specify the complete 8C- / 51454363-275 identification and request confirmation of the installed IOTA, Experion PKS release, controller firmware, redundancy arrangement, and application configuration. Matching the model number alone is not sufficient for a controlled replacement.
