Description

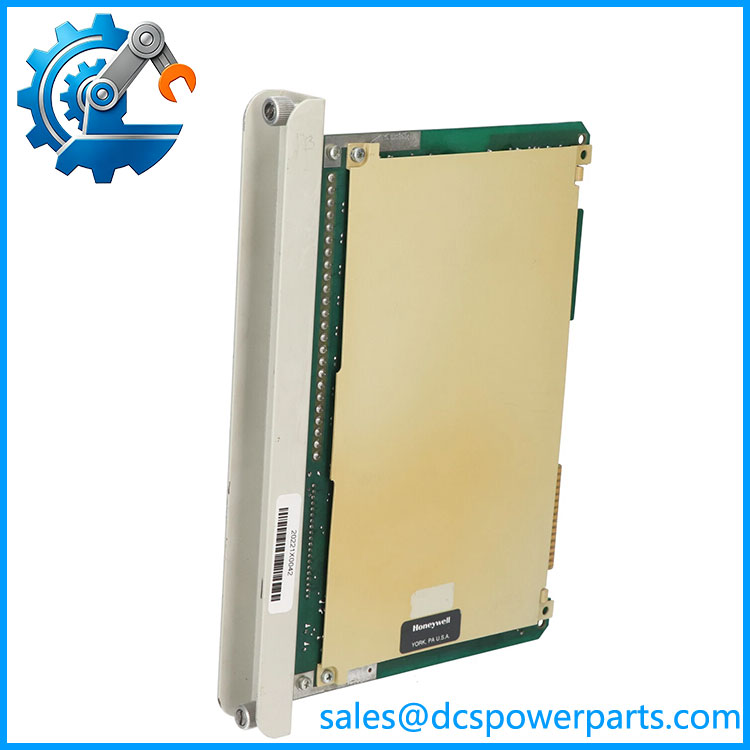

Honeywell 621-0015
Product Introduction
The Honeywell 621-0015 is an eight-channel isolated analog input module used in the Honeywell IPC 620/IPC 621 programmable control system family. Honeywell IPC 621 documentation lists 621-0015 as an analog input module with eight channels and isolation, while legacy-part records further identify the module as being configured for high-level analog input signals.
The Honeywell 621-0015 receives continuous analog signals from field instruments and makes those measurements available to the IPC controller through the system backplane. Its eight-channel configuration makes it suitable for installations where multiple process variables must be acquired within one rack. Typical process measurements can include pressure, temperature transmitter outputs, flow, level, speed reference feedback, or other high-level analog signals, but the exact allowable input range should be verified against the original IPC 621 documentation before assigning a specific signal type.
For engineers maintaining an existing installation, the Honeywell 621-0015 should be treated as a legacy system-specific I/O module rather than a generic modern analog input card. The complete part number matters because the IPC 620/621 family contains several analog-input variants, including 621-0000, 621-0014, 621-0020, 621-0022A, and 621-0022V, each serving different signal types or functions.
The module is identified by current parts records as discontinued by the manufacturer, so replacement procurement should include a physical inspection, revision check, rack compatibility check, and functional testing where possible.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 621-0015 |
| Manufacturer | Honeywell |
| System Family | IPC 620 / IPC 621 |
| Product Type | Isolated Analog Input Module |
| Number of Channels | 8 |
| Input Type | High-level analog input |
| I/O Direction | Analog Input |
| Isolation | Isolated input configuration |
| Communication | IPC rack/backplane interface |
| Ethernet | Not provided as an independent module interface |
| PROFIBUS | Not provided |
| Installation | Dedicated IPC 620/621 rack |
| Dimensions | Approx. 1.2 × 10.5 × 6.8 in. |
| Weight | Approx. 1.5 lb / 0.68 kg |
| Working Voltage | Not reliably verified for this exact module |
| Input Range | Verify against original system documentation |
| Accuracy | Verify against original Honeywell documentation |
| Operating Temperature | Not reliably verified for this exact module |
| Protection Rating | Not applicable as a standalone field device |
| Manufacturer Status | Discontinued |
The eight-channel isolated high-level analog-input function is consistently reported by the available records. Exact input voltage/current ranges, conversion accuracy, excitation requirements, and environmental specifications were not sufficiently established from primary documentation and should not be invented for a procurement specification.
621-0015
Main Features and Engineering Considerations
Eight-channel analog acquisition
The 621-0015 provides eight analog input channels within the IPC 620/621 architecture. This allows several process measurements to be brought into the controller through one rack position.
Input isolation
Available product records specifically identify the module as an isolated analog input module. This is important when field instruments have different signal references or when isolation is required between field wiring and controller-side electronics.
High-level analog signals
The module is documented as being configured for high-level analog input signals. Do not automatically interpret this as a universal 4–20 mA input. The exact field signal range and termination arrangement should be checked against the original system drawings and module documentation.
IPC 620/621 rack integration
This is a rack-based I/O component. It is not a standalone transmitter, remote I/O node, or Ethernet analog-input device. Correct operation depends on the controller, rack, backplane, configuration, and field termination arrangement.
Legacy architecture
The IPC 620/621 platform is an older Honeywell PLC/control architecture. Honeywell’s module list shows the broader range of 621-series I/O functions, including analog output, pulse input, thermocouple, universal analog input, communications, and counter modules.
Replacement availability
Current component records identify 621-0015 as discontinued by Honeywell. This makes the condition and provenance of replacement units relevant.
Application Scenarios
- Honeywell IPC 620 control systems
- Honeywell IPC 621 I/O racks
- Process analog measurement
- High-level transmitter signal acquisition
- Pressure monitoring
- Flow measurement
- Level measurement
- Temperature transmitter acquisition
- Legacy industrial PLC systems
- Process plant instrumentation
- Power-generation control systems
- Industrial equipment retrofit and maintenance
Engineer’s Guide: Field Pitfalls
Do not assume every analog input is 4–20 mA. The 621-0015 is documented as a high-level analog input module, but the exact electrical input range should be confirmed before wiring. A generic reseller description is not sufficient evidence for a specific input range.
Do not confuse 621-0015 with 621-0000. Both are eight-channel analog input modules, but the 621-0015 is specifically identified as the isolated version.
Do not confuse it with 621-0014. The 621-0014 is listed as a four-channel thermocouple input module, so it is not an interchangeable analog-input replacement.
Check the transmitter type. Before replacement, document whether each channel receives a current, voltage, or other high-level signal and confirm that the signal falls within the module’s documented input range.
Check isolation requirements. If the original installation relies on channel or field isolation, substituting a non-isolated module can alter grounding and signal-reference behavior.
Inspect the rack connector. Intermittent analog readings can originate from aging backplane contacts or field termination rather than the input electronics.
Check channel configuration. Record channel-to-process-tag assignments before removing the module. A replacement card does not automatically correct an incorrect configuration or wiring assignment.
Do not transfer specifications from 621-0010-A. The 621-0010-A is an analog output module, whereas 621-0015 is an analog input module. They are different I/O functions even though they belong to the same 621 family.
Test field loops before condemning the module. Sensor failure, broken wiring, grounding problems, transmitter configuration, and signal-reference errors can all appear as faulty analog input channels.
Frequently Asked Questions
What is Honeywell 621-0015?
It is an eight-channel isolated analog input module for the Honeywell IPC 620/IPC 621 control system. It is configured for high-level analog input signals.
How many inputs does it have?
The documented configuration provides 8 analog input channels.
Is 621-0015 isolated?
Yes. Available Honeywell IPC 621 records identify it as an isolated analog input module.
Is it a 4–20 mA input module?
It is documented as a high-level analog input module, but the available reliable sources do not establish a sufficiently specific exact input range to state that every 621-0015 installation is 4–20 mA. Verify the original hardware documentation and field wiring before specifying the input range.
Is 621-0015 an analog output module?
No. 621-0015 is an analog input module. The 621-0010 family is associated with analog output functions.
Is it compatible with Honeywell IPC 620?
Yes. The 621-0015 is identified as an IPC 620/621-series analog input module intended for the corresponding Honeywell rack architecture.
Is Honeywell 621-0015 discontinued?
Current legacy-part records identify it as discontinued by the manufacturer.
Does it have Ethernet or PROFIBUS?
No independent Ethernet or PROFIBUS interface is documented. It functions as a rack-based IPC I/O module.
Procurement Note
Specify the item as:
Honeywell 621-0015 — IPC 620/621 — 8-Channel Isolated High-Level Analog Input Module
Before approving a replacement, verify:
- Complete part number: 621-0015
- Honeywell IPC 620/621 rack compatibility
- Eight-channel configuration
- Isolated-input requirement
- Exact field signal type
- Exact input voltage/current range
- Channel assignment
- Field termination arrangement
- Backplane connector condition
- Module revision
- Controller configuration
- Physical condition of the replacement
- Functional test results for used or refurbished units
The key engineering point is that 621-0015 should be specified as an isolated eight-channel high-level analog input module, but its exact electrical input range should not be guessed from generic descriptions. That information needs to come from the applicable Honeywell IPC 621 documentation or the installed system drawings.
