Description
Product Overview

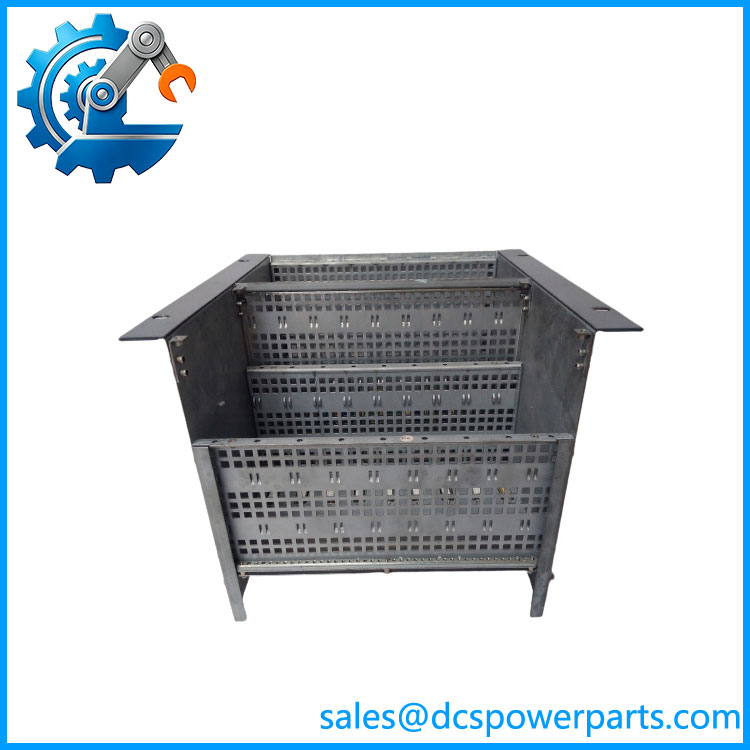

The Honeywell 05701-A-0502 is a front-access rack assembly designed for the Honeywell Sieger System 57 gas detection control platform. The rack provides the mechanical mounting structure, backplane connection, and signal routing path required for System 57 control cards, engineering cards, and interface modules. The Honeywell 05701-A-0502 is configured as a half-width 19-inch, 6U rack with front field wiring access, making it suitable for installations where cabinet space and service accessibility are important considerations.
Within the System 57 architecture, the 05701-A-0502 functions as the foundation that connects individual gas detector input channels with the rack-level control system. The assembly includes the sub-rack structure, engineering card interface, DC input card arrangement, key kit, and required internal interconnections depending on system configuration. Channel control cards installed in the rack process detector signals, manage alarm functions, and provide status information for operators and maintenance personnel.
The Honeywell 05701-A-0502 remains relevant in industrial facilities maintaining legacy gas monitoring installations where replacing the complete detection architecture would require significant engineering effort. Typical applications include oil and gas facilities, chemical plants, power generation sites, and industrial process areas requiring continuous combustible or toxic gas monitoring. Replacement planning should include verification of installed channel cards, interface modules, engineering card revision, field wiring arrangement, and existing alarm configuration. To be completely transparent, a rack replacement restores the hardware platform, but detector calibration, alarm logic, and channel configuration still require validation before returning the safety system to operation.
Product Introduction (Non-Templated)
A damaged rack assembly can interrupt multiple gas monitoring channels even when individual detector heads and control cards remain functional. The Honeywell 05701-A-0502 provides the mounting and signal distribution structure required to rebuild a System 57 control arrangement.
Configured as a half-width 6U front-access rack, it supports modular channel expansion, front field wiring connections, and maintenance access for legacy gas detection installations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 05701-A-0502 |
| Manufacturer | Honeywell / Sieger |
| Product Type | Front Access Rack Assembly |
| System Family | System 57 Gas Detection Control System |
| Rack Configuration | Half 19-inch width × 6U height |
| Access Type | Front field wiring access |
| Channel Capacity | Up to 8-way rack configuration |
| Rack Function | Houses channel control cards and interface/relay cards |
| Backplane | Common power and signal routing backplane |
| Chamber Design | Separate control card and interface/relay sections |
| Field Wiring | Front-access connection arrangement |
| Compatible Cards | System 57 channel control and interface modules |
| Mounting | Industrial cabinet rack installation |
| Typical Application | Gas detection monitoring systems |
| Condition | New Surplus, Factory Sealed |
Related Products
- Honeywell 05701-A-0501 — Full-width 19-inch × 6U front-access rack version. Used where larger System 57 installations require increased channel capacity.
- Honeywell 05701-A-0511 — Full-width 19-inch × 3U rear-access rack configuration. Selected for cabinets where rear field wiring is preferred.
- Honeywell 05701-A-0512 — Half-width 19-inch × 3U rear-access rack. Suitable for smaller installations requiring rear wiring access.
- Honeywell 05701-A-0451 — 16-way front-access cabinet rack assembly. Used for larger gas monitoring systems requiring more channel positions.
- Honeywell 05701-A-0452 — 8-way cabinet assembly designed for System 57 rack installations with compact enclosure requirements.
- Honeywell 05701-A-0361 — Engineering Card for System 57 racks. Provides rack communication management, diagnostics, and configuration access.
- Honeywell 05701-A-0301 — 4–20 mA single-channel control card. Processes analog gas detector inputs within the System 57 rack.
- Honeywell 05701-A-0302 — Catalytic single-channel control card. Used with catalytic gas detector applications requiring specific sensor drive functions.
05701-A-0502
Frequently Asked Questions (FAQ)
1. Is the Honeywell 05701-A-0502 compatible with my existing System 57 gas detection system?
The rack is designed for Honeywell Sieger System 57 installations, but compatibility depends on the installed card configuration.
Verify:
- Existing rack model
- Channel control card types
- Engineering card revision
- Interface/relay card arrangement
- Field wiring method
The rack dimensions alone do not confirm a complete replacement match.
2. Can I hot-swap this?
No. The 05701-A-0502 is a rack assembly and should not be treated like a removable communication module.
Typical replacement steps:
- Place the gas detection system into a controlled maintenance condition
- Document all installed cards and wiring
- Remove system power
- Replace the rack assembly
- Reinstall cards and verify connections
- Perform alarm and detector testing
Safety systems require controlled restoration procedures.
3. Does the 05701-A-0502 support firmware v3.1?
The rack itself does not contain the main operating firmware.
Firmware compatibility depends on:
- Installed channel control cards
- Engineering card version
- System 57 software tools
- Configuration modules
The rack provides the hardware platform; the active intelligence resides in the installed control electronics.
4. Will I lose my gas alarm configuration when replacing the rack?
The rack assembly does not store alarm configuration data.
Before replacement:
- Record channel assignments
- Save engineering settings
- Document relay outputs
- Confirm detector calibration information
After installation, verify every channel before placing the system back into service.
5. How can I verify a New Surplus Honeywell 05701-A-0502 is authentic?
Recommended checks:
- Confirm part number marking
- Inspect rack frame and backplane condition
- Verify connector integrity
- Check included accessories
- Review inspection documentation
For gas detection systems, hardware condition and configuration history are both important.
6. Can the 05701-A-0502 support a legacy gas detection upgrade project?
Yes, when the existing installation is based on System 57 hardware.
Common applications:
- Rack replacement after hardware damage
- Expansion of existing gas monitoring channels
- Plant maintenance inventory preparation
- Long-term support of installed safety systems
The existing detector and channel configuration should be reviewed before installation.
7. What should engineers check before commissioning this rack assembly?
Key checks include:
- Verify card placement
- Confirm backplane connections
- Check field wiring continuity
- Validate DC input supply
- Test alarm relay operation
- Perform detector channel verification
These checks confirm the System 57 rack is ready for operational use.
